Single cylinder wings, often referred to as donuts, are oval shaped air cells or bladders that are not permanently attached to a harness. While single cylinder wings have their origins in the realm of technical diving, they are becoming very popular in the recreational community. Not only are these single cylinder wings streamlined, but due to their shape being a continuous loop, they are very stable underwater. There is no dramatic shift of air from left to right.

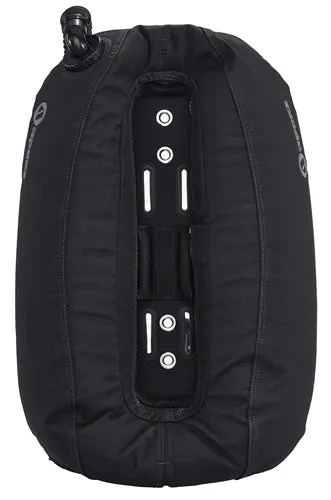

Apeks single cylinder wings are a smart design that allows a cylinder to nest deep inside them. These wings mate up nicely to the rest of the Apeks WTX collection of high quality harnesses, plates and accessories. They can be configured in multiple ways to match the type of diving that you do. As with the rest of the WTX collection, these single cylinder wings are built from the finest quality materials. They are designed by Apeks and built in our own factory.

1. Inflator:
   K style with brass buttons
   Low profile 16” oval-shaped hose
   Safety cable to prevent hyper-extension
   Positioned off-center so as not to interfere with regulator 1st stage

2. Dump Valve
   Low profile flat valve
   Positioned in front, lower-left side

3. Tank Stabilizer Bars

4. Drains
   2 large drain grommets
   Center mesh drain panel

5. The 30lb and 40lb wings are able to accept an optional Retractor Kit, P/N: 388300

6. Materials:
   Exterior: 1000D Armorshield Cordura
   Inner air cell: 22mil (.022) thick black urethane
   Zipper: heavy duty YKK #10 plastic zip and slide.

Style Single Cylinder Wing - Donut
Sizes 3
Inflator WTX "K" Style w/ brass buttons
Airway 16" corrugated hose w/ simple elbow
Dump valves 1 Flat Valve - lower left
Harness Can be used w/ WTX or webbed harness
Weight System Optional SureLock II
Drains Central mesh panel 2 grommet
Retractor option WTX-D30 & WTX-D40 only
Tank Stabilizer Bars Yes
Exterior Material 1000D Armorshield Cordura
Inner bladder 22 mil (.022) thick black urethane
Zipper Heavy Duty YKK #10
Lift Capacity (lbs/N) WTX-D40 - 40 lbs
Warranty Limited Lifetime
