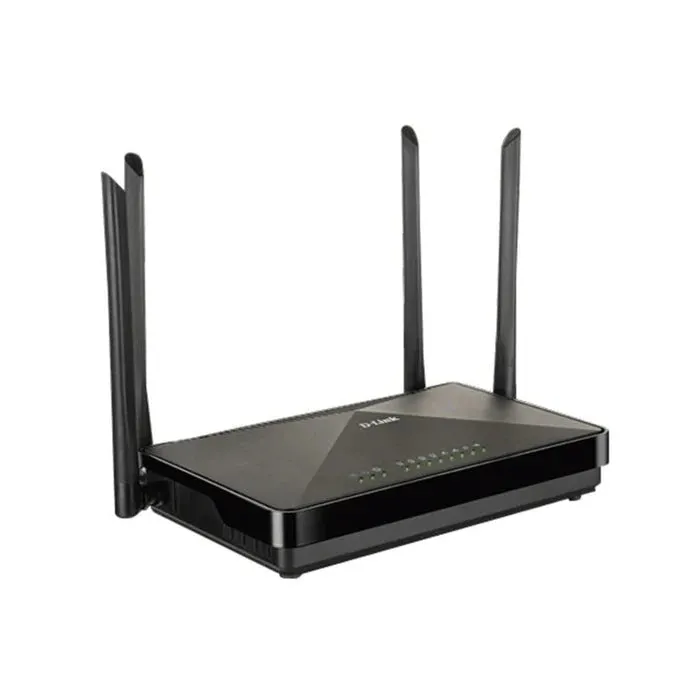

D-Link AC1200 Dual-Band Wireless VDSL2/ADSL2 Modem Router DSL-245GE

The DSL-245GE Dual Band Wireless AC1200 VDSL2/ADSL2 Modem Router is a highly integrated router with everything your home or small business needs for high-speed Internet access. It combines an ADSL2 /VDSL2 modem, Gigabit Ethernet Internet Port, Voice over IP (VoIP), and Gigabit wireless together in a single, easy-to-use product that shares an Internet connection for all your devices.

Complete Internet Solution

A total solution that helps you connect, share, and enjoy your Internet connection with a single device that’s easy to set up and manage.

Wireless AC and Gigabit Ethernet

Stream HD multimedia across your home without interruption using the fastest wired and wireless technologies available today.

Simple Setup

Set up the DSL-245GE in no time with the web-based setup wizard, and create wireless connections easily using Wi-Fi Protected Setup (WPS).

Fast and Reliable Home Network

The D-Link DSL-245GE Dual Band Wireless AC1200 VDSL2/ADSL2 Modem Router creates a blazing fast home network that connects all of your devices to your broadband Internet connection. Concurrent dual-band 802.11ac brings you the future of high-bandwidth wireless connectivity, allowing you to stream HD video, make Internet voice calls, and surf the Internet from every corner of your home without interruption. Gigabit Ethernet ports provide high-speed wired connections for up to four PCs or other devices. It’s stylish, easy to use, and provides you with a reliable network for today and tomorrow.

Multiple Failover Redundancy and Future Connectivity

The D-Link DSL-245GE Dual Band Wireless AC1200 VDSL2/ADSL2 Modem Router comes not only with a built-in high-speed VDSL/ADSL modem, capable of up to 100 Mbps VDSL/24 Mbps ADSL speeds, but is also equipped with a Gigabit Ethernet WAN port. This means that if your primary connection method should fail, the DSL-245GE will automatically fall back to your pre-defined backup connection.

Smooth Streaming with Wireless AC

The DSL-245GE uses the latest Wireless AC technology, which provides transfer rates of up to 1.2 Gbps (866 AC 300 N). The router operates on both the 2.4 GHz and 5 GHz wireless bands at the same time using concurrent dual-band technology and two external antennas. This allows you to browse the web, chat, and e-mail using the 2.4 GHz band, while simultaneously streaming digital media, playing online games, or making Internet voice calls on the 5 GHz band.

Designed for Optimal Wireless Coverage

The DSL-245GE’s antennas have been carefully designed to ensure that you will get little to no dead space in any environment. The high-powered amplifier sends the signal into the farthest corners of your home, while highgain antennas extend the maximum range of wireless signals. Furthermore, the DSL-245GEs multiple external antennas improve wireless reception by bringing signals to where they are most needed to achieve the best possible performance.

File Sharing Right at Your Fingertips

The DSL-245GE lets you connect a USB storage device and instantly share documents, movies, pictures, and music. You can put your music library on a USB drive and share it with your entire home. You can show photos on the living room TV while a family member watches a movie on their computer.
You can stream media files to multiple devices without interruption, or save them to your device for offline playback. The intuitive interface lets anyone immediately connect to a variety of entertainment options stored on your own storage device.

Easy to Set Up

Setting up the DSL-245GE is easy with the D-Link easy setup wizard. Simply open the setup utility and follow a few easy steps to get your home network up and running. You can also set up a WPA2 encrypted network with the touch of a button using Wi-Fi Protected Setup (WPS). Simply press the respective WPS buttons on each devices to instantly establish an encrypted connection to a new device. Your network will be encrypted with WPA/WPA2 wireless encryption and employ built-in dual active firewalls (SPI and NAT) to help protect your network from unauthorized access.

Features

• AC1200 Dual-Band with speeds up to 1.2 Gbps

• 4x 10/100/1000 Gigabit LAN port

• 1x RJ-11 xDSL Port

• 1x USB 3.0 Port for wireless file sharing

• WPA/WPA2 encryption



Technical Specification

Product: D-Link AC1200 Dual-Band Wireless VDSL2/ADSL2 Modem Router

Device Interfaces: 1x RJ-11 xDSL Port , 4x 10/100/1000 Gigabit LAN Ports , 802.11 ac/n/g/b Wireless LAN , 1x USB 3.0 Port (Back)

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards: IEEE 802.11ac , IEEE 802.11n , IEEE 802.11g , IEEE 802.11b , IEEE 802.3i , IEEE 802.3u , IEEE 802.3ab , IEEE 802.3az Energy Efficient Ethernet , IEEE 802.3x Flow Contro

WLAN data transfer rate (max): 300 Mbit/s (2.4 GHz), 866 Mbps (5 GHz)

Ethernet LAN interface type: Gigabit Ethernet

Ethernet LAN data rates: 10,100,1000 Mbit/s

Security algorithms: WPA, WPA2, WPS

ADSL Features: • T1.413i2, G.992.1 • G.dmt, G.992.2, G.lite • G.992.3 (G.bis/ADSL2) • G.992.5 (ADSL2 ) • ITU G.994.1 (G.hs) • Annex L (Reach Extended ADSL2)

VDSL Features: • ITU-T G.993.2 VDSL2 • Supports 8a, 8b, 12a, 12b, 17a, 30a profiles • Supports G.vector • Supports ATM and PTM • Supports G.INP • Supports ATM forum UNI3.0, 3.1 and 4.0 permanent virtual circuits (PVCs) • Supports CBR, UBR, VBR-rt, VBR-nrt • Supports multiple PVCs • Supports ITU-T i.610F4/F5 OAM

Product type: Tabletop router

Product colour: Black

Antenna Configuration: 2 x 2.4 GHz Antennas , 2 x 5 GHz Antennas
