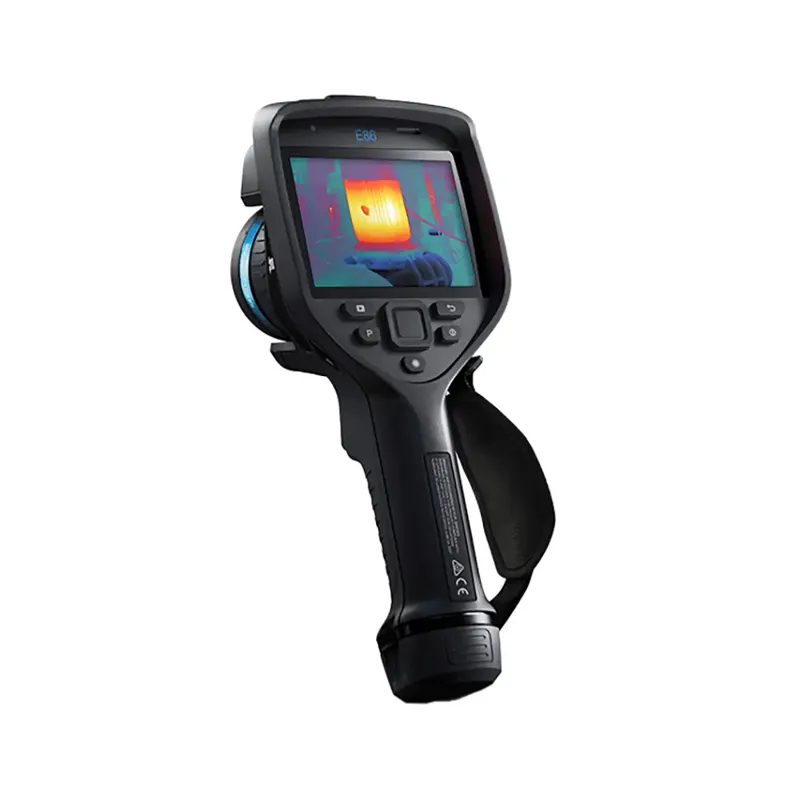

The Teledyne FLIR E86-Dual-FOV-24-42 14 Advanced Thermal Imager provides versatile and precise thermal imaging for professionals requiring high performance in both wide and narrow field of view applications. This device includes both a 14° narrow lens and a FlexView DFOV 42°/24° lens, enabling seamless switching between wide and standard FOVs with a simple toggle motion. The high-resolution 464 × 348 thermal sensor, paired with advanced features such as laser-assisted autofocus and FLIR MSX imaging, ensures detailed, reliable thermal imagery for inspections and diagnostics.
Designed to enhance productivity and accuracy, the E86 supports FLIR’s Inspection Route for guided workflows and FLIR Ignite for cloud storage and sharing. The FlexView DFOV lens improves safety and efficiency by reducing the need to change lenses in harsh environments, minimizing the risk of contamination or damage. Lightweight and rugged, this imager is ideal for challenging jobsite conditions, delivering professional-grade results in every scan.
What's Included:
- 1 - Advanced Thermal Imager (E86)
- 1 - FlexView DFOV 42°/24° Lens
Features

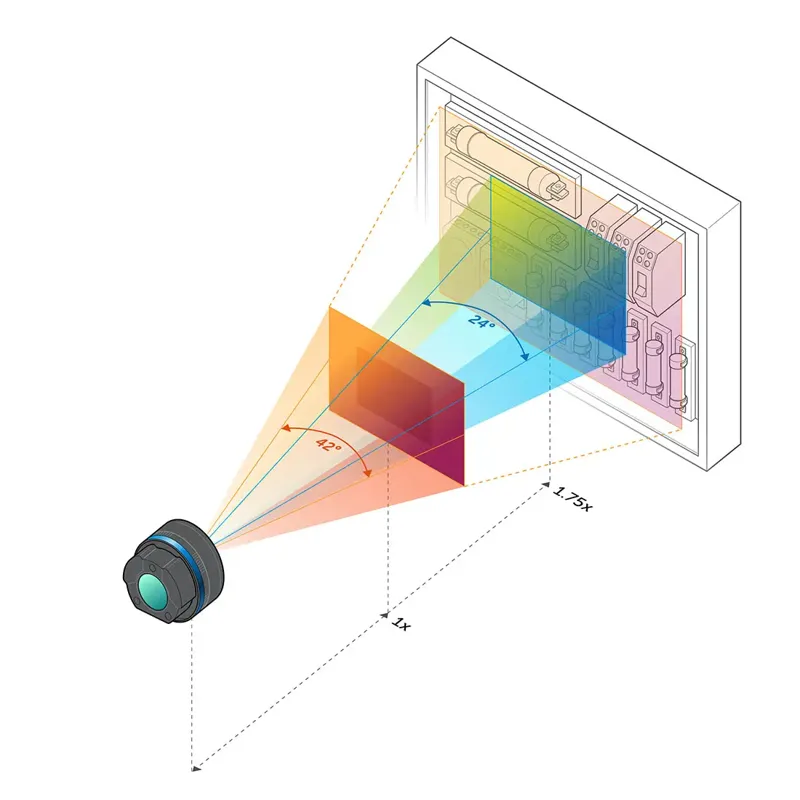

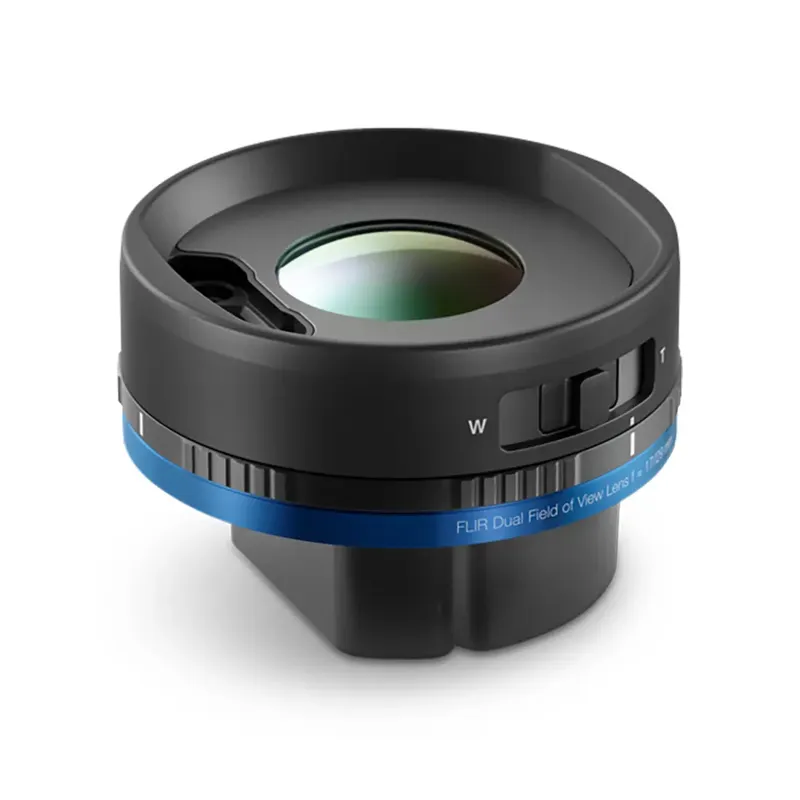

Dual FOV FlexView Lens
Switch between 42° wide and 24° standard fields of view in one second without changing the lens.
Advanced Laser Autofocus
Ensures sharp imagery quickly and accurately, even in dynamic environments.
High Thermal Resolution
464 × 348 resolution with UltraMAX technology delivers up to 645,888 effective pixels.

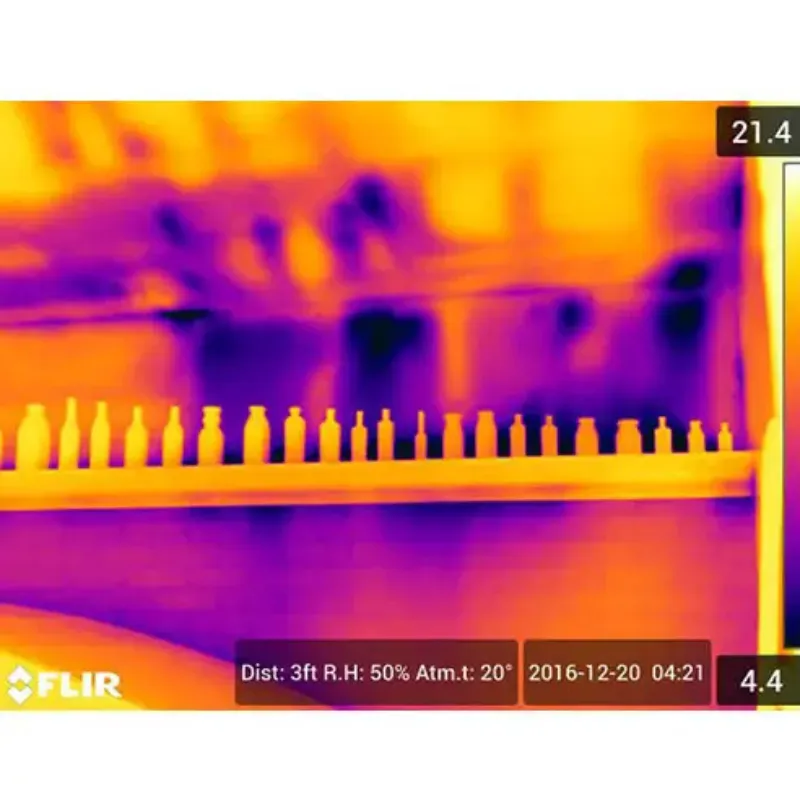

FLIR Vision Processing
Combines MSX, UltraMax, and image enhancement algorithms for crisp thermal imagery.
Intelligent Measurement Tools
Offers 3 spot meters and multiple measurement presets including center, hot, and cold spot tracking.
Built-in Reporting Software
Compatible with FLIR Thermal Studio and Research Studio for professional analysis and reports.
Secure Cloud Integration
FLIR Ignite enables automatic, encrypted upload and access to images from any device.
One-Touch Annotations
Capture voice, text, and sketch notes directly from the device to simplify documentation.
Ergonomic and Rugged Design
Built for field use with lighter weight and robust construction for reliability on the job.
Enhanced Safety and Workflow

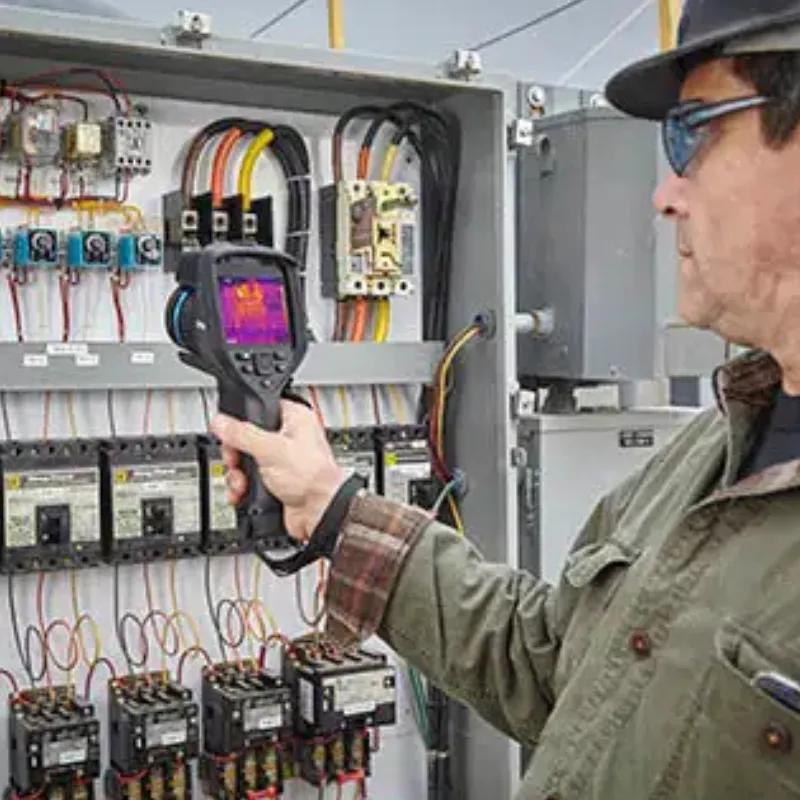

Narrow FOV supports inspection from a distance, keeping users outside arc flash zones.
What's Included
Included with Your Purchase:
- 1 - Advanced Thermal Imager (E86)
- 1 - FlexView DFOV 42°/24° Lens
Specifications
- IR Resolution: 464 x 348
- UltraMAX Resolution: 645,888 effective pixels
- Object Temperature Range: -4° to 248°F, 32° to 1202°F, 572° to 2732°F
- Thermal Lens: 14°, FlexView Dual FOV 42°/24°
- Detector Type: Uncooled microbolometer
- Detector Pitch: 17 µm
- Digital Zoom: 1 to 6x, continuous
- Thermal Sensitivity (NETD): 30 mK at 86°F (42° lens)
- Image Frequency: 30 Hz
- Lens Identification: Automatic
- Focus: Continuous with LDM, one-shot LDM, one-shot contrast, manual
- Display: 640 x 480 (VGA) Dragontrail touchscreen
- Digital Camera: 5 MP fixed focus with built-in LED lamp
- Accuracy: ± 3.6°F / ± 2% of reading
- Spotmeter/Area: 3 each in live mode
- Measurement Presets: No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
- Laser Pointer: Yes
- Laser Distance Meter: Yes
- Voice Annotation: Via built-in mic or Bluetooth
- Text Annotation: Predefined list or touchscreen keyboard
- Image Sketch: Touchscreen-based on IR images
- Distance/Area Measurement: Yes
- METERLiNK: Yes (via Bluetooth)
- Compass/GPS: Yes, with automatic image tagging
- Cloud Services: FLIR Ignite for uploading, organizing, storing, sharing
- Video Recording: Radiometric JPEG, radiometric IR visual video
- Video Streaming: Radiometric and visual via UVC or Wi-Fi
- Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
FAQ
Q: Can I switch between wide and narrow FOV easily?
A: Yes, the FlexView DFOV lens lets you switch FOVs in one second using a simple toggle motion.
Q: Is this imager suitable for electrical inspections?
A: Absolutely, the narrow FOV allows safe inspections from a distance, keeping operators outside arc flash zones.
Q: How do I upload and manage my images?
A: Use FLIR Ignite for automatic, secure cloud uploads directly from the imager.
Q: Can I create reports from this device?
A: Yes, it’s compatible with FLIR Thermal Studio and Research Studio for analysis and report generation.
