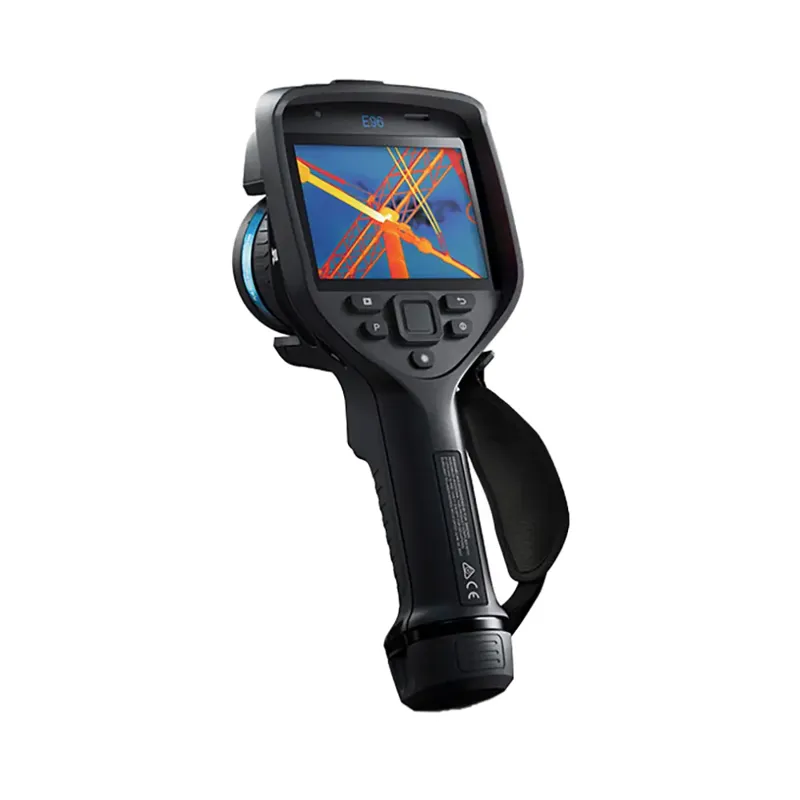

The Teledyne FLIR E96-Dual-FOV-24-42 14 Advanced Thermal Imager offers unmatched precision for both close and distant inspections with its integrated FlexView DFOV 42°/24° Lens and an additional 14° lens. Designed for professionals who need accuracy, safety, and ease of use, this imager combines high thermal resolution with powerful onboard tools like laser-assisted autofocus and 1-Touch Level/Span.

The camera features MSX enhancement for detailed visuals and FLIR Inspection Route for structured workflow management. Users benefit from cloud integration with FLIR Ignite, allowing secure automatic image uploads and simplified data access from anywhere. The dual field of view system enhances efficiency and safety, minimizing the need to swap lenses and reducing the risk of contamination or drops in harsh environments.

What's Included:

• 1 - Advanced Thermal Imager (E96)
• 1 - FlexView DFOV 42°/24° Lens

Features

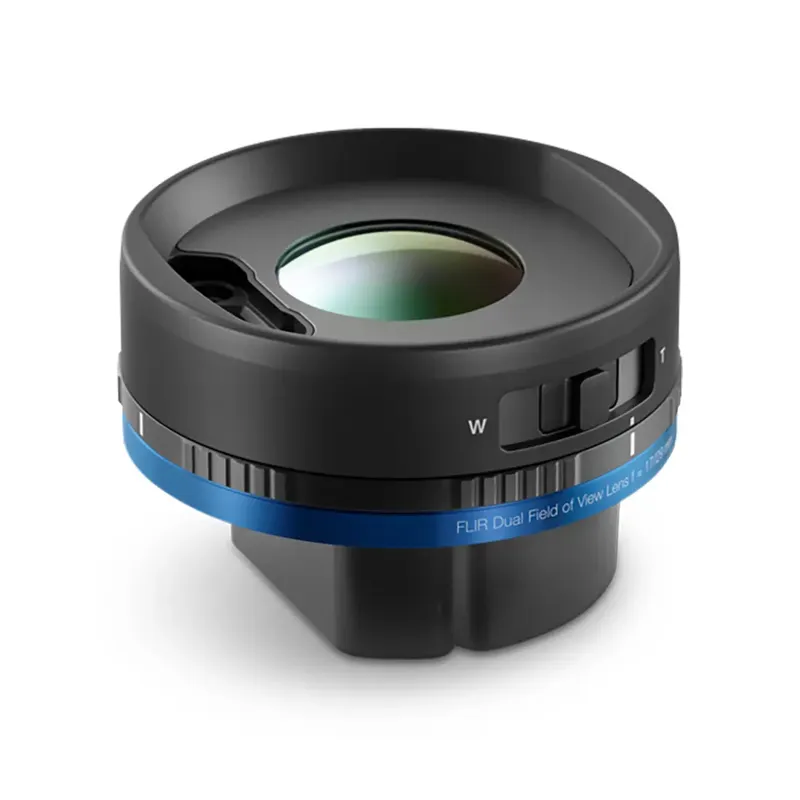

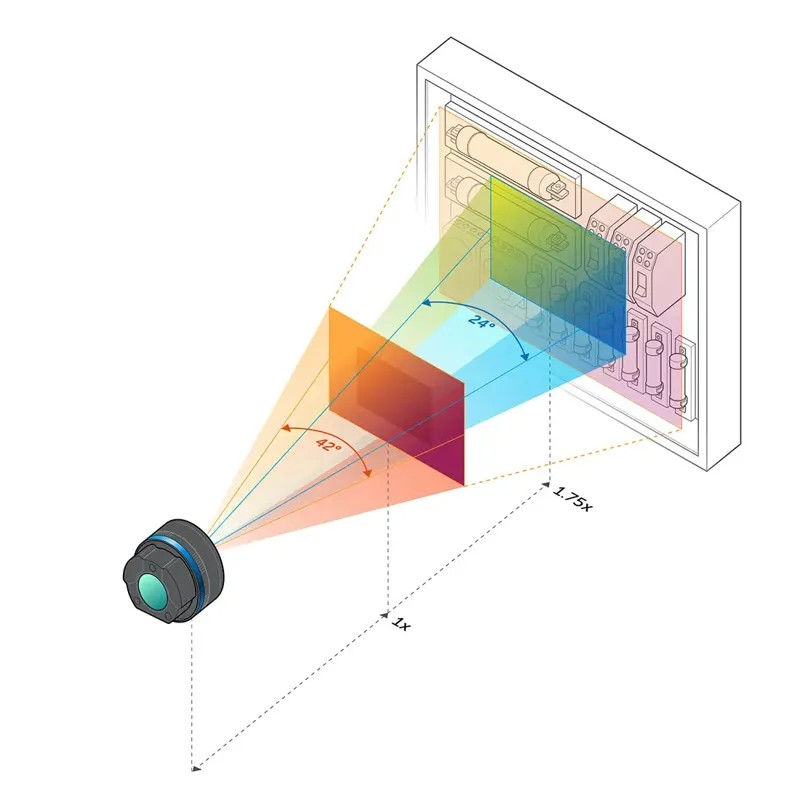

Dual Field of View FlexView Lens
Switch instantly between wide and narrow fields of view for fast scanning or detailed analysis without changing lenses.

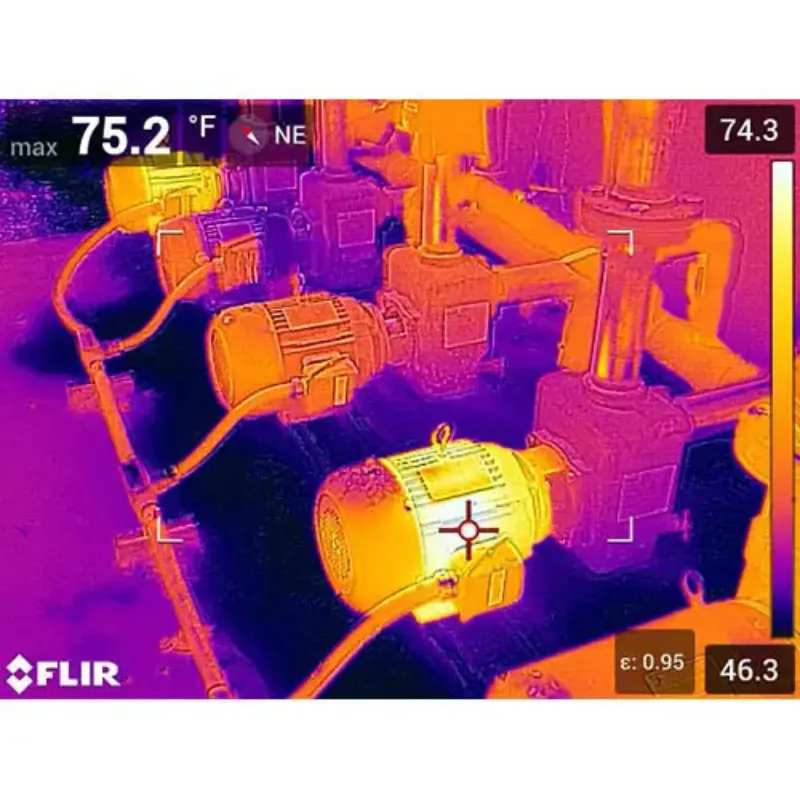

High Thermal Resolution
Capture crisp thermal images with 640 x 480 resolution and enhanced detail using UltraMax technology.

Smart Autofocus
Laser distance measurement and contrast-based focusing improve inspection speed and accuracy.

MSX and FLIR Vision Processing
Boost image clarity with real-time image blending and edge definition for faster diagnostics.

Comprehensive Analysis Tools
Integrated spotmeters, area boxes, presets, and voice/text/sketch annotations enhance decision-making.

Thermal Studio and FLIR Ignite
Streamline reporting and cloud storage through FLIR’s robust software ecosystem.

Durable and Lightweight
Engineered for field use, the E96 offers rugged design and portability for extended use across job sites.

Intuitive Controls and Routing
Pre-planned inspection routes and on-camera features like 1-Touch Level/Span simplify operations and reduce training time.

Efficient and Safe Operation
Inspect from safe distances with the narrow FOV mode while minimizing arc flash exposure risks.

Secure Wireless Sharing
Upload, stream, and analyze data wirelessly via Bluetooth, Wi-Fi, and USB.

What's Included

Included with Your Purchase:

• 1 - Advanced Thermal Imager (E96)
• 1 - FlexView DFOV 42°/24° Lens

Specifications

• IR Resolution: 640 x 480
• UltraMAX Resolution: 1.2 MP effective pixels
• Object Temperature Range: -4° to 248°F, 32° to 1202°F, 572° to 2732°F
• Thermal Lens: 14°, FlexView Dual FOV 42°/24°
• Detector Type: Uncooled microbolometer
• Detector Pitch: 12 µm
• Digital Zoom: 1 to 8x, continuous
• Thermal Sensitivity/NETD: 30 mK at 86°F (42° lens)
• Image Frequency: 30 Hz
• Lens Identification: Automatic
• Focus: Continuous with LDM, one-shot LDM, one-shot contrast, manual
• Display: 640 x 480 (VGA) Dragontrail touchscreen
• Digital Camera: 5 MP fixed focus with built-in LED lamp
• Accuracy: ± 3.6°F/± 2% of reading
• Spotmeter/Area: 3 each in live mode
• Measurement Presets: Center spot, hot spot, cold spot, User Presets
• Laser Pointer: Yes
• Laser Distance Meter: Yes
• Voice Annotation: Built-in mic/Bluetooth
• Text Annotation: Predefined or touchscreen keyboard
• Image Sketch: Touchscreen on IR images
• Distance/Area Measurement: Yes
• METERLiNK: Yes (Bluetooth)
• Compass/GPS: Yes, with automatic image tagging
• Cloud Services: FLIR Ignite (Wi-Fi)
• Video Recording: Radiometric JPEG, IR visual video
• Video Streaming: UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual)
• Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort

FAQ

Q: What is the benefit of the FlexView DFOV lens?
A: It allows instant switching between wide and narrow fields of view, improving both speed and detail during inspections.

Q: Can images be uploaded automatically to the cloud?
A: Yes, FLIR Ignite enables direct image uploads from the camera for secure storage and sharing.

Q: Is the E96 suitable for hazardous or dusty environments?
A: Yes, the dual lens design reduces the need to swap lenses in the field, minimizing exposure to dust or moisture.

Q: What is the image resolution of this thermal imager?
A: It offers a native 640 x 480 resolution with UltraMax enhancement up to 1.2 MP.
