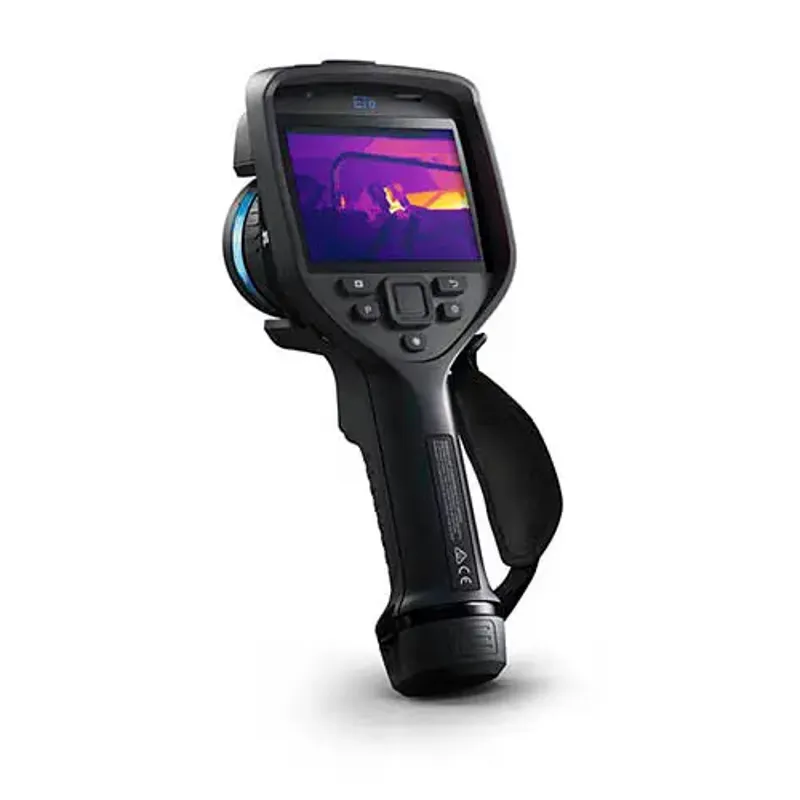

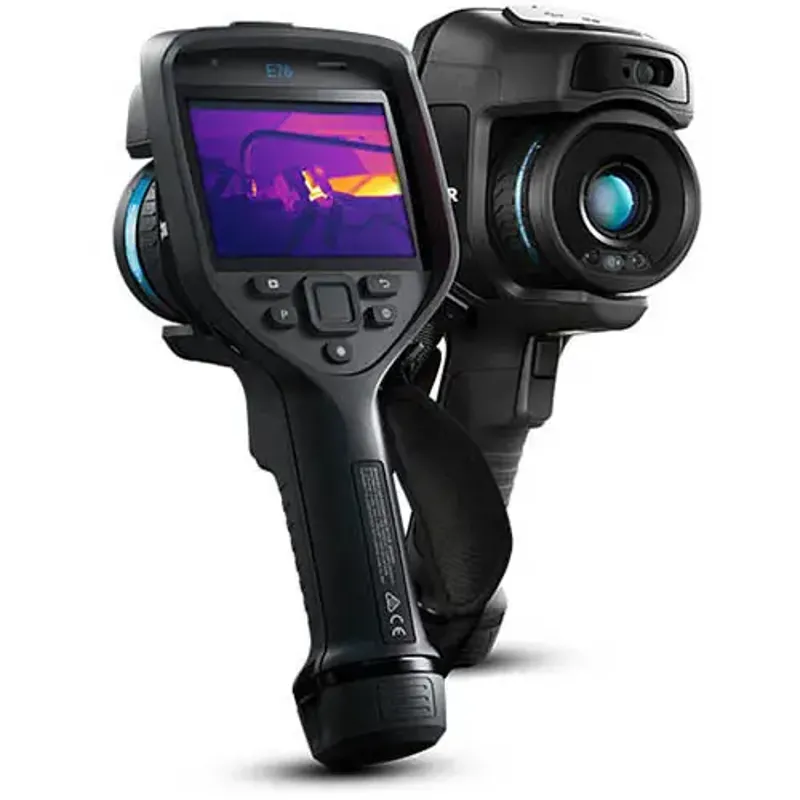

The Teledyne FLIR E76-42-14 Advanced Thermal Imaging Camera delivers precision, flexibility, and efficiency for demanding thermal inspections across building, electrical, and mechanical applications. Equipped with both 42° and 14° AutoCal lenses, this camera offers wide and narrow fields of view, ideal for both expansive building scans and detailed long-range inspections. Its 320 x 240 resolution ensures crisp thermal imagery, which can be enhanced with FLIR's proprietary MSX and UltraMax technologies to reveal critical details with exceptional clarity.
Designed for professional-grade fieldwork, the E76 features laser-assisted autofocus, programmable buttons, and onboard integration with FLIR’s inspection route software to streamline data collection. Its rugged design supports operation in challenging environments, while a 4-inch touchscreen LCD provides intuitive interaction. Supporting real-time radiometric video, GPS tagging, and multiple communication options, the E76 is a complete solution for proactive maintenance and advanced diagnostics.
What's Included:
- Teledyne FLIR E76 Thermal Imaging Camera
- 42° Wide-Angle AutoCal Lens
- 14° Telephoto AutoCal Lens
- Rechargeable Li-ion Battery
- Battery Charger
- FLIR Thermal Studio Pro Software License
- Transport Case
- USB and DisplayPort Cables
- Lens Caps and Cleaning Accessories
Features
Dual-Lens Coverage
Includes both 42° and 14° AutoCal lenses, allowing for versatile imaging from wide-area scans to detailed inspections of remote targets.
MSX Image Enhancement
Multi-Spectral Dynamic Imaging overlays visual edge detail onto thermal images, enhancing clarity and labeling without needing to switch views.
UltraMax SuperResolution
Captures multiple thermal images and combines them into a single enhanced image with four times the resolution and increased accuracy.
FLIR Thermal Studio Pro Integration
Onboard compatibility with FLIR’s analysis and reporting software simplifies the workflow from capture to report.
Laser-Assisted Autofocus
Provides quick, precise focusing even at a distance, critical for accurate diagnostics and safety.
Inspection Route Capability
Supports predefined inspection routes for organized, efficient surveys with FLIR Inspection Route software.
Advanced Touchscreen Interface
4-inch 640 x 480 touchscreen LCD with auto-rotation enables easy navigation and image review.
Robust Environmental Ratings
Shock, vibration, and IP54-rated for reliable use in tough field conditions.
Radiometric Video Recording
Records temperature data with video in .csq format for thorough post-analysis.
Comprehensive Communication Ports
USB 2.0, Bluetooth, Wi-Fi, and DisplayPort over USB-C allow for seamless data transfer and connectivity.
What's Included
Included with Your Purchase:
- Teledyne FLIR E76 Thermal Imaging Camera
- 42° Wide-Angle AutoCal Lens
- 14° Telephoto AutoCal Lens
- Rechargeable Li-ion Battery
- Battery Charger
- FLIR Thermal Studio Pro Software License
- Transport Case
- USB and DisplayPort Cables
- Lens Caps and Cleaning Accessories
Specifications
- IR Resolution: 320 x 240 pixels
- Image Frequency: 30 Hz
- Thermal Sensitivity: <50 mK at 30°C
- Detector Type: Uncooled microbolometer, 17 µm
- Field of View: 42° (wide), 14° (telephoto)
- Focus: Continuous, One-shot LDM/contrast, Manual
- Display: 4 in. touchscreen, 640 x 480 pixels
- Video Output: DisplayPort via USB Type-C
- Communication: USB 2.0, Wi-Fi, Bluetooth
- Storage: Removable SD card
- Battery Life: Over 2.5 hours
- Operating Temperature: -15 to 50°C
- Storage Temperature: -40 to 70°C
- Protection Rating: IP54, 25g shock, 2g vibration
- Video Formats: H.264, MPEG-4, MJPEG, radiometric .csq
- Measurement Range: -20 to 120°C; 0 to 650°C; optional up to 1000°C
- Accuracy: ±2°C or ±2%
- Digital Camera: 5 MP with LED lamp
- Zoom: 1–4x continuous digital
- GPS: Yes, automatic image tagging
- Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
FAQ
Q: What are the benefits of having two lenses?
A: The 42° lens provides a wide field of view ideal for large area scans, while the 14° telephoto lens allows detailed inspection of distant targets.
Q: How does UltraMax enhance image quality?
A: UltraMax captures and combines multiple images to create one with higher resolution and reduced noise, improving detail and measurement accuracy.
Q: Can this camera be used in harsh environments?
A: Yes, it meets IP54 and shock/vibration standards for durability in field use.
Q: What is the maximum temperature this camera can measure?
A: It measures up to 650°C standard, with an optional range up to 1000°C.
Q: Does the camera support video recording with temperature data?
A: Yes, it records real-time radiometric video in .csq format for analysis.
