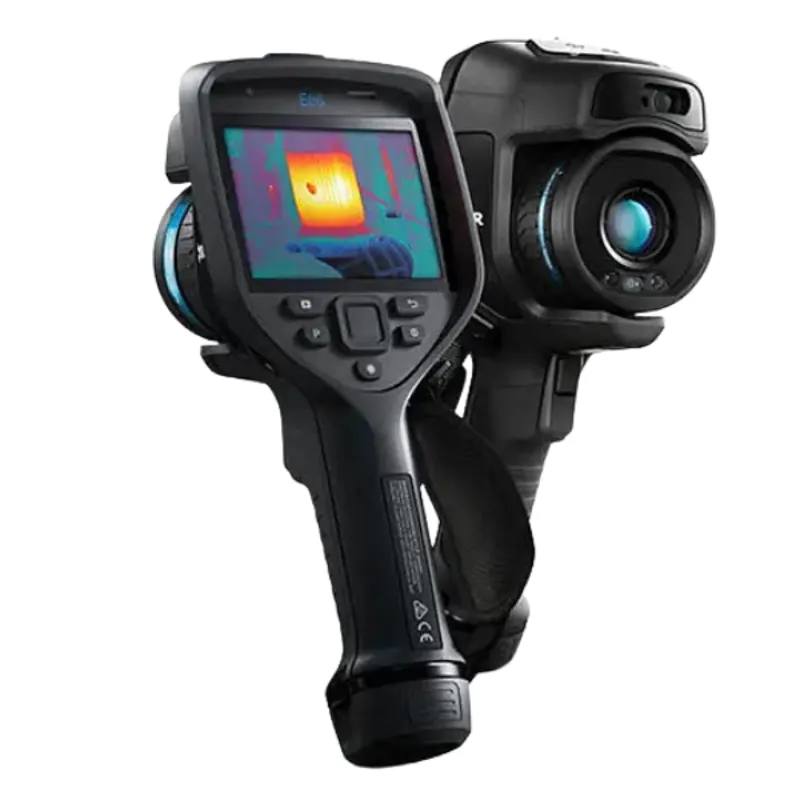

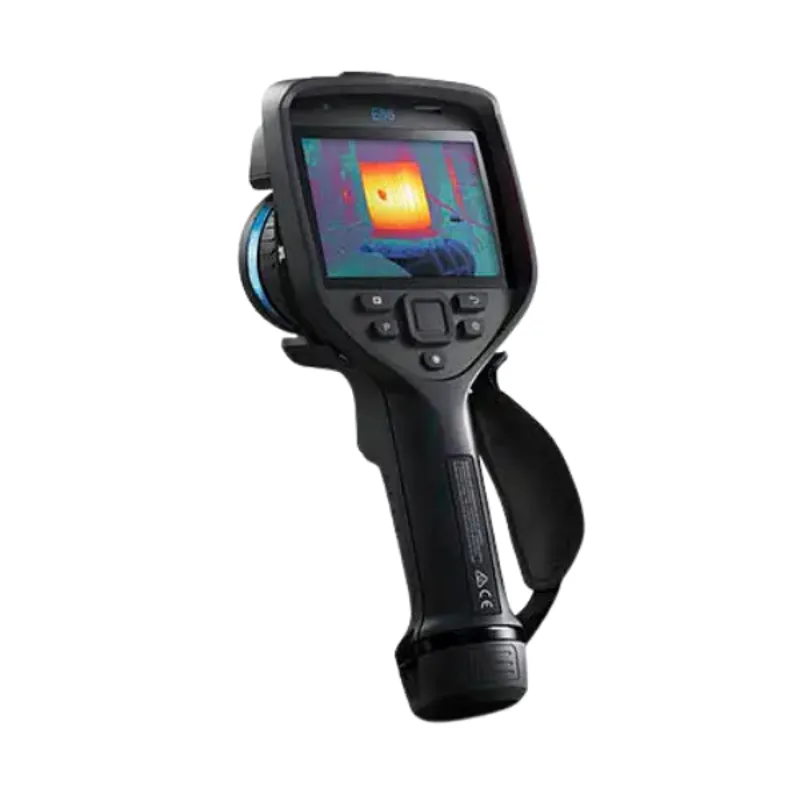

The Teledyne FLIR E86-24-14-42-NIST Advanced Thermal Imaging Camera is designed for professionals who demand superior accuracy, productivity, and image clarity. Featuring a 464 x 348 pixel thermal resolution and a 30 Hz refresh rate, this high-performance camera comes with a set of three AutoCal™ interchangeable lenses—24°, 14°, and 42°—ensuring complete field coverage from wide-angle building scans to pinpoint detection of distant hot spots.

Packed with technologies like UltraMax and MSX, the E86 provides enhanced clarity, higher resolution imaging, and detailed thermal analysis. MSX overlays edge detail from the visual camera on the thermal image for easy identification of features. UltraMax captures multiple frames and enhances resolution through intelligent image processing.

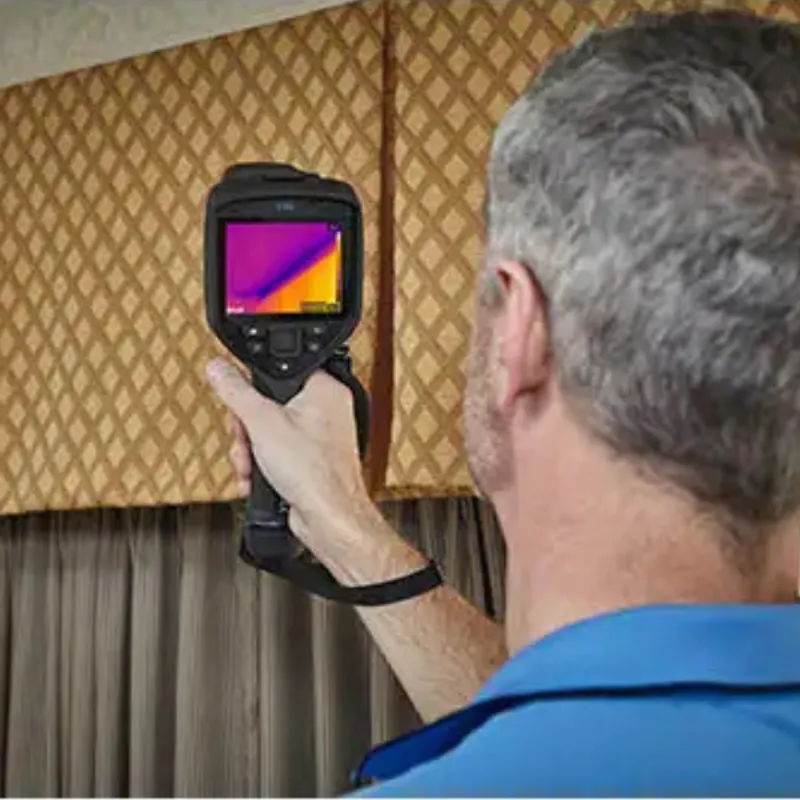

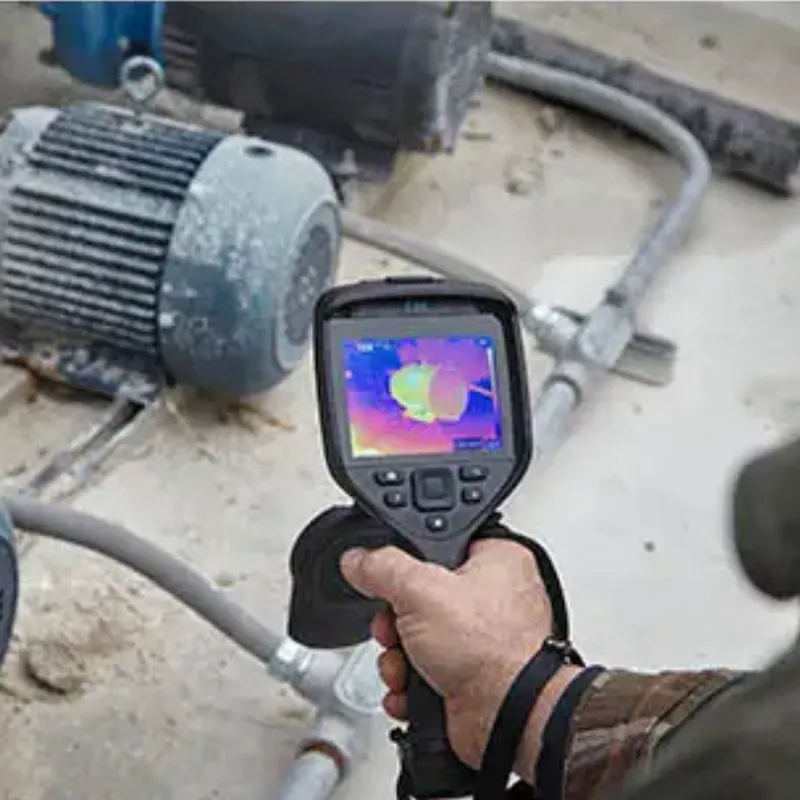

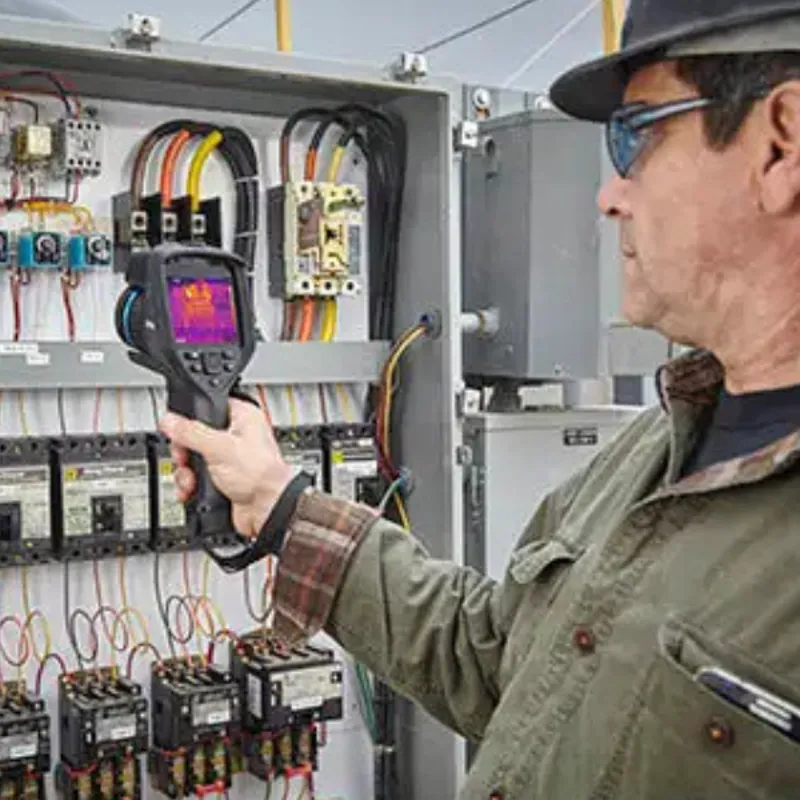

The E86 is equipped with a built-in laser distance meter for precise autofocus and measurement capabilities, and voice annotation and onboard FLIR routing features for efficient field reporting. With its rugged construction and extensive measurement presets, the E86 is suited for electrical, mechanical, and building inspection applications. Teledyne FLIR Thermal Studio Pro software is included to streamline image analysis and report generation.

What's Included:

• Teledyne FLIR E86 Thermal Camera
• 24° AutoCal Lens
• 14° AutoCal Lens
• 42° AutoCal Lens
• Teledyne FLIR Thermal Studio Pro Software
• NIST Calibration
• Rechargeable Li-ion Battery
• Removable SD Card
• USB 2.0 and DisplayPort Connectivity

Features

Advanced Lens Options
Includes 24°, 14°, and 42° AutoCal lenses for full coverage from wide-angle inspections to narrow-field targeting of distant faults.

Laser Distance Meter
Enables quick and precise autofocus while also aiding in on-screen area measurements.

UltraMax Superresolution Technology
Combines data from multiple frames to produce higher-resolution thermal images with enhanced detail.

MSX Image Enhancement
Adds visible-light details to thermal images, improving clarity and label readability without switching views.

Teledyne FLIR Routing and Voice Annotation
Supports efficient inspection routines with onboard route guidance and hands-free voice notes via built-in mic.

Vibrant Display
Features a 4-inch, 640 x 480 touchscreen LCD that automatically rotates based on orientation.

Multiple Communication Interfaces
Supports USB, Wi-Fi, Bluetooth, and DisplayPort for flexible file transfer and streaming.

Rugged Build
Withstands harsh conditions with IP54 protection, 25g shock resistance, and a wide operating temperature range.

Flexible Storage Options
Infrared, visual, MSX, and video files saved to removable SD card for easy file management.

Teledyne FLIR Thermal Studio Pro Software

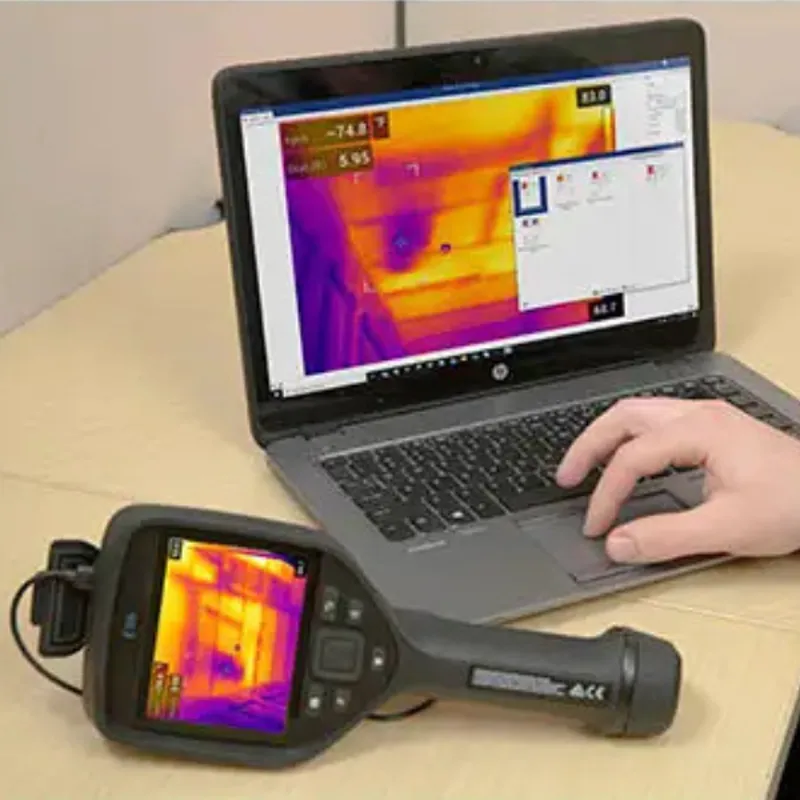

Provides advanced image analysis, organization, and professional report generation.

What's Included

Included with Your Purchase:

• Teledyne FLIR E86 Thermal Camera
• 24° AutoCal Lens
• 14° AutoCal Lens
• 42° AutoCal Lens
• Teledyne FLIR Thermal Studio Pro Software
• NIST Calibration
• Rechargeable Li-ion Battery
• Removable SD Card
• USB 2.0 and DisplayPort Connectivity

Specifications

• IR Resolution: 464 x 348 pixels
• Image Frequency: 30 Hz
• Lens Field of View: 24° x 18°, 14° telephoto, 42° wide-angle
• Thermal Sensitivity (NETD): <40 mK at 30°C (86°F)
• Spectral Range: 7.5 - 14 µm
• Focus Modes: Continuous LDM, One-shot LDM, One-shot contrast, Manual
• Digital Camera: 5 MP with LED lamp
• Display: 4 in. LCD, 640 x 480 pixels, auto-rotation
• Zoom: 1-4x continuous digital
• Laser Distance Meter: Yes, with dedicated button
• Measurement Presets: No Measurement, Center Spot, Hot Spot, Cold Spot, User Preset 1 & 2
• Object Temperature Ranges: -20 to 120°C, 0 to 650°C, 300 to 1500°C
• Accuracy: ±2°C or ±2% of reading
• Video Recording: Radiometric (.csq), H.264 (non-radiometric)
• Video Streaming: Radiometric over UVC; H.264/MPEG-4 via Wi-Fi
• Storage Media: Removable SD card
• File Formats: JPEG with measurement data
• Operating Temperature: -15 to 50°C (5 to 122°F)
• Storage Temperature: -40 to 70°C (-40 to 158°F)
• Encapsulation: IP54
• Shock and Vibration: 25g (IEC 60068-2-27), 2g (IEC 60068-2-6)
• Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
• Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
• Battery Type: Rechargeable Li-ion
• Battery Life: Over 2.5 hours at 25°C with typical use
• Text & Voice Annotation: Predefined list or touchscreen; 60-sec voice via mic or Bluetooth
• GPS: Automatic image tagging
• Picture-in-Picture: Yes, resizable and movable
• Time Lapse: 10 seconds to 24 hours (IR)
• Spot Meter: 3 spots live
• Minimum Focus Distance: 0.15 m
• Lens ID: Automatic

FAQ

Q: What are the benefits of using the three different lenses?

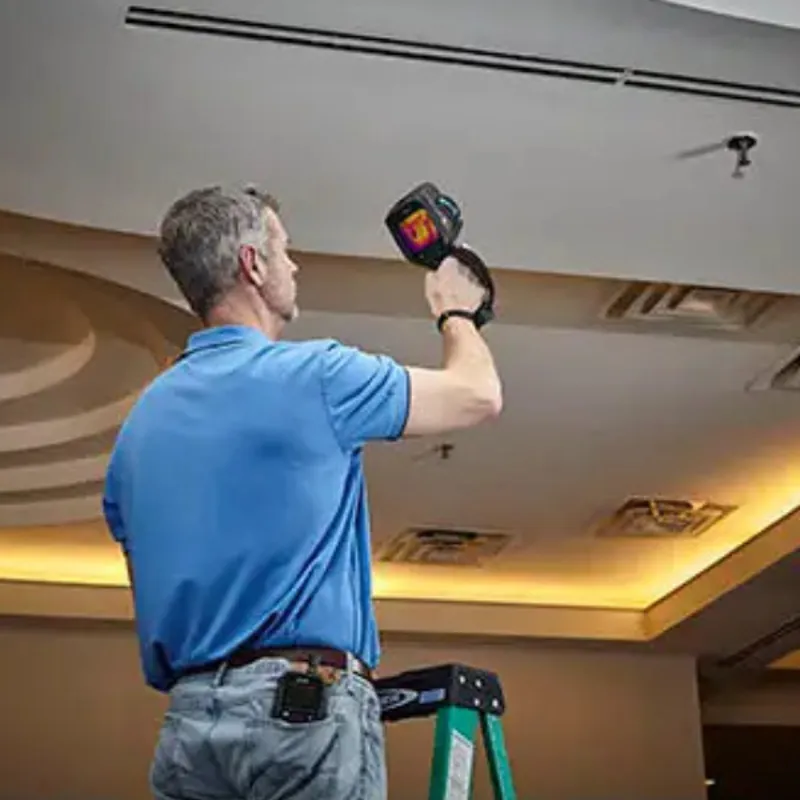

A: The 24° lens is ideal for general use at safe distances, the 14° lens allows for detailed inspections from afar, and the 42° lens provides broad views for building and roof surveys.

Q: Can this camera record radiometric video?
A: Yes, the E86 supports real-time radiometric video recording and streaming.

Q: How does UltraMax improve image quality?
A: UltraMax captures multiple thermal frames and processes them into a single high-resolution image with enhanced detail and reduced noise.

Q: Does the camera support inspection routing?
A: Yes, it includes FLIR Inspection Route and supports route creation in Thermal Studio Pro for organized inspections.

Q: Is the camera suitable for outdoor environments?
A: Yes, it features IP54 encapsulation and can operate between -15 to 50°C, making it durable for harsh conditions.
