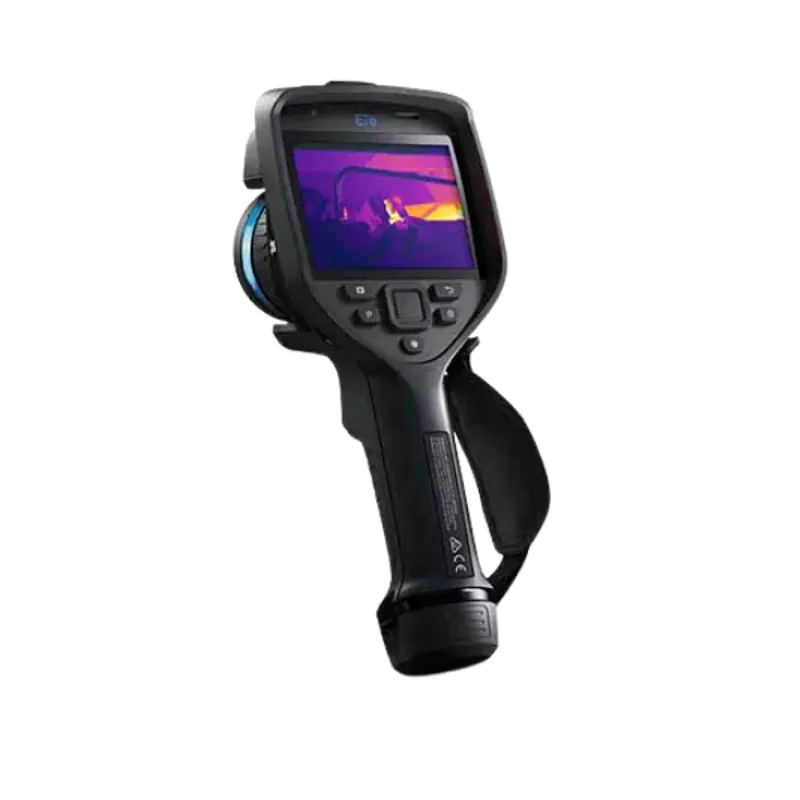

The Teledyne FLIR E76-42-NIST Advanced Thermal Imaging Camera is built for precision inspections in building, electrical, and mechanical environments. With a high-performance 42° wide-angle lens and 320 x 240 resolution, it delivers crisp thermal imagery enhanced by MSX and UltraMax technologies for better detail and clarity. The built-in viewfinder, 4" touchscreen LCD, and laser-assisted focus system ensure easy targeting and accurate thermal measurements in challenging conditions.
This model includes Teledyne FLIR Thermal Studio Pro software and supports structured inspection workflows through the FLIR Inspection Route feature, making it ideal for professional thermographers. The integrated voice annotation, GPS tagging, and Wi-Fi connectivity support efficient documentation and reporting.
What's Included:
- Teledyne FLIR E76 Thermal Camera with 42° lens
- FLIR Thermal Studio Pro Software
- Built-in Viewfinder
- MSX and UltraMax Image Enhancement
- NIST Certificate of Calibration
- Rechargeable Li-ion Battery
- Battery Charger
- Removable SD Card
- USB Cable
- Hard Transport Case
Features
Wide-Angle 42° Lens
Captures large areas in a single image, ideal for building envelopes and large surface scanning.
High-Resolution Thermal Imaging
320 x 240 resolution delivers detailed thermal visuals with support for UltraMax for enhanced clarity.
MSX Image Enhancement
Multi-Spectral Dynamic Imaging blends visual and thermal images to enhance edge detail and readability.
Teledyne FLIR Inspection Route
Built-in feature guides users through pre-planned inspection routes for streamlined data collection.
Laser-Assisted Autofocus
Ensures sharp images and precise measurements, especially at a distance.
Large Touchscreen Display
4-inch 640 x 480 LCD touchscreen with auto-rotation for easier viewing and operation in any orientation.
Advanced Measurement Tools
Supports center spot, hot spot, cold spot, and multiple user-defined presets.
Comprehensive Communication Interfaces
Includes USB 2.0, Wi-Fi, Bluetooth, and DisplayPort for seamless data transfer.
Flexible Video and Image Output
Offers radiometric video recording and streaming plus non-radiometric H.264 and MJPEG support.
Rugged and Reliable
IP54-rated housing with strong shock and vibration resistance ensures dependable field use.
What's Included
Included with Your Purchase:
- Teledyne FLIR E76 Thermal Camera with 42° lens
- FLIR Thermal Studio Pro Software
- Built-in Viewfinder
- MSX and UltraMax Image Enhancement
- NIST Certificate of Calibration
- Rechargeable Li-ion Battery
- Battery Charger
- Removable SD Card
- USB Cable
- Hard Transport Case
Specifications
- IR Resolution: 320 x 240 pixels
- Thermal Sensitivity (NETD): <50 mK at 30°C (86°F)
- Image Frequency: 30 Hz
- Field of View: 42°
- Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Display: 4 in. 640 x 480 touchscreen LCD with auto-rotation
- Digital Zoom: 1–4x continuous
- Digital Camera: 5 MP with LED light
- Video Recording: Radiometric (.csq), non-radiometric H.264
- Video Streaming: Radiometric via UVC; MJPEG and MPEG-4 via Wi-Fi
- Measurement Accuracy: ±2°C (±3.6°F) or ±2%
- Temperature Ranges: -20 to 120°C, 0 to 650°C, optional up to 1000°C
- GPS: Automatic image tagging
- Storage: Removable SD card
- Communication: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
- Battery Runtime: >2.5 hours at 25°C with typical use
- Battery Type: Rechargeable Li-ion
- Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
- Operating Temp: -15 to 50°C (5 to 122°F)
- Storage Temp: -40 to 70°C (-40 to 158°F)
- Ingress Protection: IP54
- Shock/Vibration: 25g / 2g (IEC 60068)
- Laser Distance Meter: Yes, with dedicated button
- Voice Annotation: 60 seconds via built-in mic or Bluetooth
- Image File Format: JPEG with measurement data
- Measurement Tools: 3 spot meters, center spot, hot spot, cold spot, user presets
FAQ
Q: What is the advantage of the 42° lens?
A: It allows users to capture wide-area views in a single frame, ideal for large-scale inspections like roofs and building facades.
Q: Can I record and stream radiometric video?
A: Yes, the camera supports real-time radiometric video recording and streaming over USB or Wi-Fi.
Q: Does the camera support software for inspections?
A: Yes, it comes with FLIR Thermal Studio Pro and supports the Inspection Route plugin for guided workflows.
Q: Is the display usable in bright outdoor conditions?
A: Yes, the 4-inch high-resolution touchscreen with auto-rotation is bright and easy to view in various lighting environments.
Q: How durable is the E76 camera?
A: The camera is IP54-rated and tested against shock, vibration, and extreme temperatures for reliable field use.
