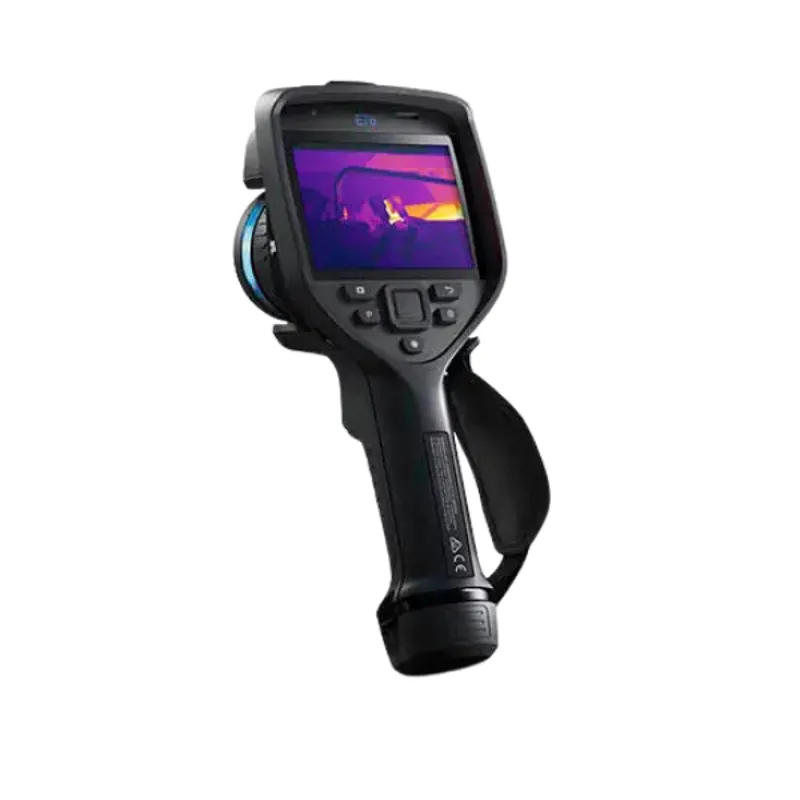

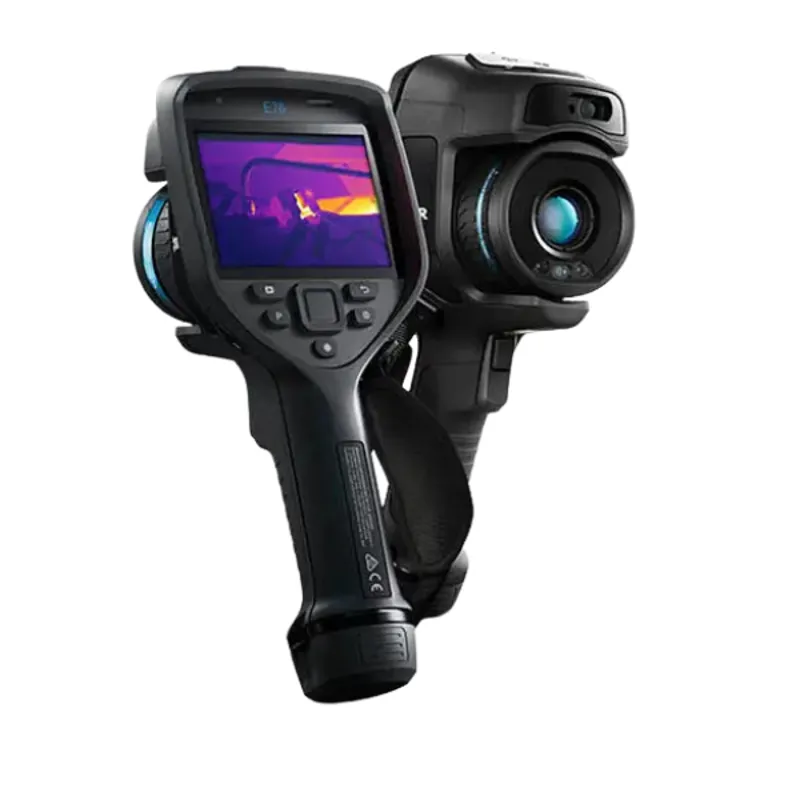

The Teledyne FLIR E76-24-NIST Advanced Thermal Imaging Camera combines high-performance infrared imaging with advanced features like MSX and UltraMax technologies to provide crisp, detailed thermal images. With a 24° lens and 320 x 240 thermal resolution, it delivers excellent coverage of both wide and distant targets. This model is ideal for building diagnostics, electrical and mechanical inspections, and predictive maintenance, with a viewfinder, laser-assisted autofocus, and an intuitive touchscreen interface for efficient workflows.

The E76 supports multiple interchangeable AutoCal lenses, automatically calibrates for precision measurements, and integrates seamlessly with FLIR’s advanced Thermal Studio Pro software. UltraMax technology enhances thermal resolution, while MSX overlays visible light detail onto thermal images for better clarity. With built-in GPS, Bluetooth, Wi-Fi, and voice annotation, it’s engineered for real-world usability in demanding environments.

What's Included:

• Teledyne FLIR E76 Thermal Imaging Camera
• 24° (17 mm) lens
• FLIR Thermal Studio Pro software license
• Integrated laser distance meter
• Rechargeable Li-ion battery
• Battery charger and power supply
• Hard transport case
• Removable SD card
• USB Type-C communication cable
• NIST Certificate of Calibration

Features

Standard 24° Lens
Offers a balanced 24° x 18° field of view, enabling users to safely capture precise images from distances like 3 meters away.

MSX and UltraMax Technologies
MSX overlays visible details onto thermal images for clarity, while UltraMax increases resolution and measurement precision by combining multiple images.

Laser-Assisted Autofocus
Ensures sharp thermal imagery at varying distances, enhancing safety and accuracy in inspections.

Advanced Display and Interface
Features a 4-inch 640 x 480 touchscreen LCD with auto-rotation for intuitive image review and navigation.

FLIR Inspection Route Enabled
Optimizes routine inspections with pre-planned routes, helping users stay organized and efficient.

Voice and Text Annotation
Add up to 60 seconds of voice notes or text labels to images using built-in mic or Bluetooth, improving documentation.

Robust Connectivity
Supports USB 2.0, Bluetooth, Wi-Fi, and DisplayPort for easy image transfer and remote operation.

Built for Tough Environments
Rated IP54 and tested for 25g shock and 2g vibration resistance, with operating temps from -15°C to 50°C.

Integrated GPS and METERLiNK
Automatically geotags images and syncs with METERLiNK-compatible meters for complete data capture.

Flexible Video Options
Supports radiometric and non-radiometric IR video streaming and recording for comprehensive analysis.

What's Included

Included with Your Purchase:

• Teledyne FLIR E76 Thermal Imaging Camera
• 24° (17 mm) lens
• FLIR Thermal Studio Pro software license
• Integrated laser distance meter
• Rechargeable Li-ion battery
• Battery charger and power supply
• Hard transport case
• Removable SD card
• USB Type-C communication cable
• NIST Certificate of Calibration

Specifications

• IR Resolution: 320 x 240 pixels
• Lens Field of View: 24° x 18°
• Lens Type: 17 mm, AutoCal
• Thermal Sensitivity (NETD): <50 mK at 30°C
• Image Frequency: 30 Hz
• Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
• Digital Camera: 5 MP with LED lamp
• Display: 4 in., 640 x 480 pixel touchscreen LCD
• Zoom: 1-4x continuous digital
• Video Output: DisplayPort via USB Type-C
• IR Video Recording: Radiometric (.csq), Non-radiometric H.264
• Video Streaming: H.264/MPEG-4 via Wi-Fi, MJPEG over UVC/Wi-Fi
• Connectivity: USB 2.0, Wi-Fi, Bluetooth, DisplayPort
• Image Storage: Removable SD card
• Measurement Accuracy: ±2°C or ±2% of reading
• Object Temperature Range: -20 to 120°C; 0 to 650°C; optional 300 to 1000°C
• Operating Temperature: -15 to 50°C
• Storage Temperature: -40 to 70°C
• Shock/Vibration: 25g / 2g
• Protection Rating: IP54
• Battery Life: >2.5 hours at 25°C
• Battery Type: Rechargeable Li-ion
• File Format: JPEG with embedded measurement data
• Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
• GPS: Yes, automatic image tagging
• Annotations: Voice (60 sec), Text, Sketch
• Spot Meter: 3 in live mode
• Programmable Buttons: 1
• Compliance: EN/UL/CSA/PSE 60950-1

FAQ

Q: What is UltraMax technology and how does it improve image quality?
A: UltraMax captures and combines 16 thermal images to create one higher-resolution image, offering better clarity and measurement precision.

Q: Can this camera be used for building inspections?
A: Yes, it is ideal for detecting moisture, insulation issues, and air leaks with high-resolution thermal imagery.

Q: Does the E76 support video recording?
A: Yes, it supports both radiometric and non-radiometric IR video recording and streaming.

Q: How is the camera calibrated when changing lenses?
A: The AutoCal system automatically detects and calibrates each new lens for accurate measurements.

Q: What file formats does the camera use for images?
A: Images are stored in standard JPEG format with embedded measurement data.
