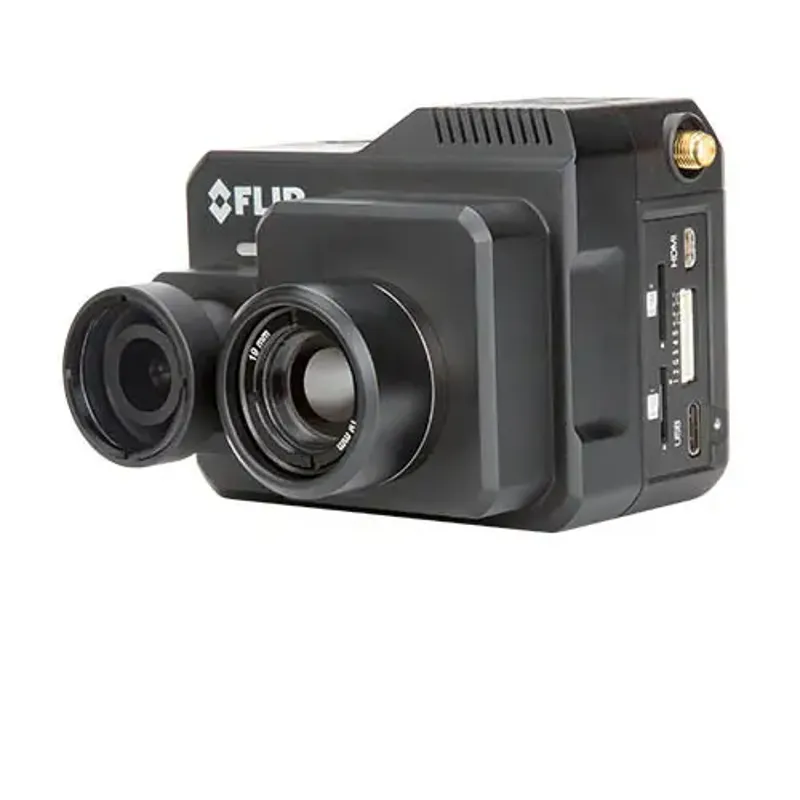

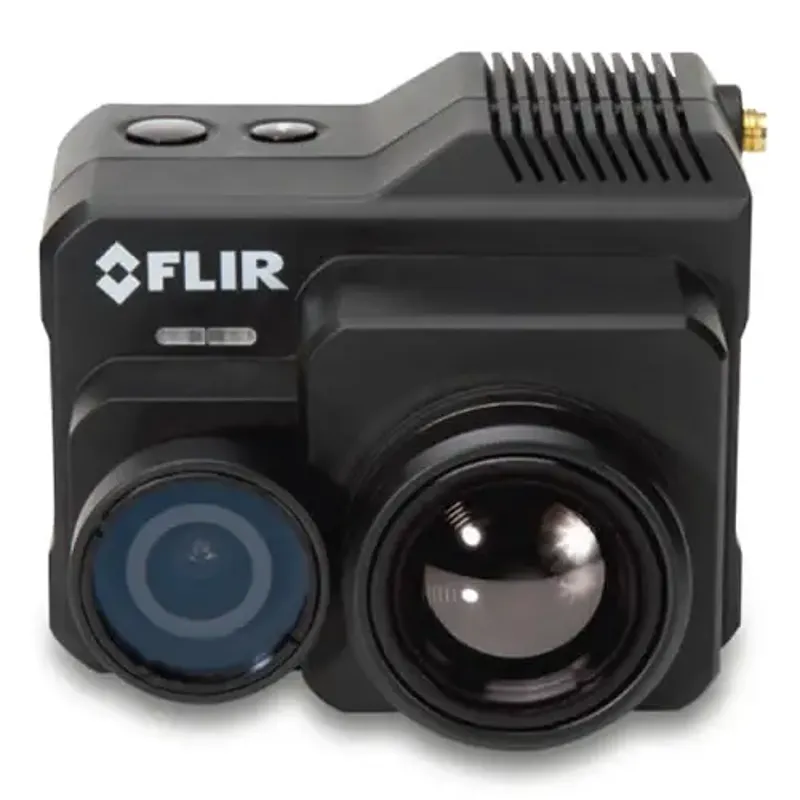

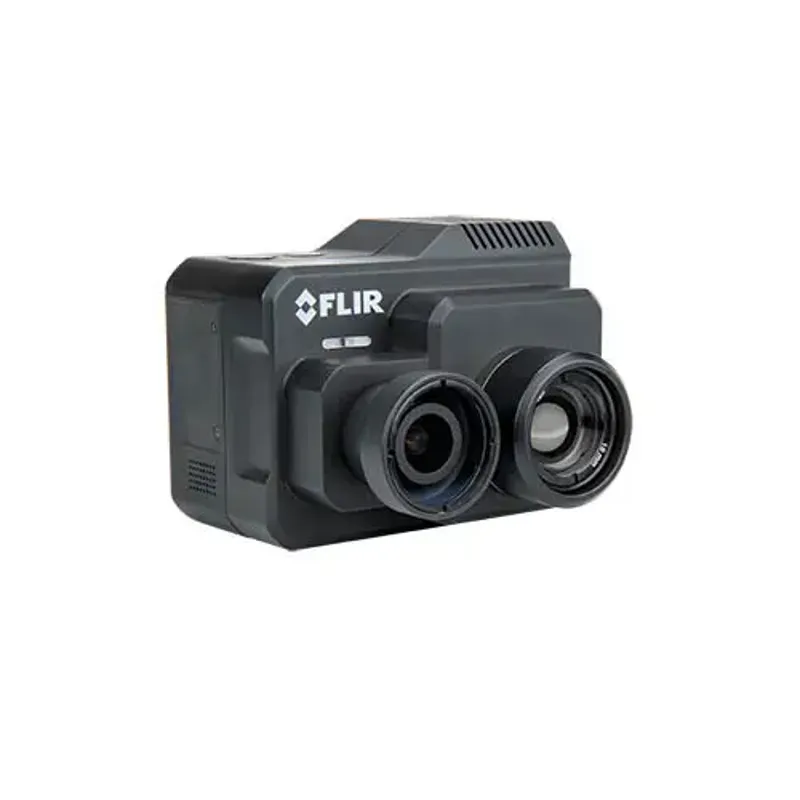

The Teledyne FLIR DUO-PRO-R-640-13MM-30HZ High-Definition Dual Sensor Thermal and Visible Light Imager for Drones (sUAS) transforms any drone into a powerful industrial tool. Designed for commercial, industrial, and public safety missions, it combines a thermal imaging camera and a 4K visible light sensor in one compact, rugged package.

Equipped with an onboard suite of sensors including GPS, IMU, temperature, humidity, and altitude modules, this device captures highly accurate, geo-tagged imagery. By eliminating reliance on external flight control systems, the DUO-PRO-R simplifies mapping workflows while enhancing precision and efficiency for professionals in surveying, inspection, and emergency response.

What's Included:

• 1 - Bench Cable
• 1 - MicroSD Card
• 1 - Integration Cable
• 1 - GPS Cable
• 1 - USB Type-C Cable

Features

High-Resolution Thermal and Visual Imaging
Features a 640 x 512 thermal sensor paired with a 4000 x 3000 visible camera, offering detailed dual imaging in a single flight.

Integrated Sensor Suite
Includes GPS, IMU, and environmental sensors for onboard data capture, supporting accurate geo-tagging and mapping.

Flexible Lens and Frame Rate Options
13mm lens with a 45° x 37° thermal FOV and 30 Hz frame rate ensures dynamic scene capture.

Rugged, Compact Design
Built to handle harsh conditions while remaining lightweight and easy to mount on various airframes.

Advanced Image Blending
MSX technology enhances detail by blending thermal and visual images for clearer daytime observation.

Onboard Video Recording and Still Capture
Simultaneously records thermal and visible imagery, reducing post-processing needs.

Real-Time Video Output
Offers analog and digital (micro-HDMI) outputs for live viewing and mission monitoring.

Wide Power Compatibility
Operates with a 5-26 VDC input range, supporting various drone platforms.

Comprehensive Control Options
Supports PWM inputs and Bluetooth configuration via the Teledyne FLIR UAS app.

Seamless Integration
Compatible with MAVLink flight controllers, ensuring flexible deployment across UAV systems.

What's Included

Included with Your Purchase:

• 1 - Bench Cable
• 1 - MicroSD Card
• 1 - Integration Cable
• 1 - GPS Cable
• 1 - USB Type-C Cable

Specifications

• Thermal Sensor Resolution: 640 x 512
• Thermal Lens: 13mm; 45° x 37° FOV
• Visible Camera FOV: 56° x 45°
• Thermal Sensitivity: < 50 mK
• Thermal Frame Rate: 30 Hz
• Visible Sensor Resolution: 4000 x 3000
• Spectral Band: 7.5 µm to 13.5 µm
• Thermal Imager Type: Uncooled VOx Microbolometer
• Measurement Accuracy: /- 5 °C or 5% (-25 °C to 135 °C); /- 20 °C or 20% (-40 °C to 550 °C)
• Power Input Range: 5-26 VDC
• Video Output: Live analog or micro-HDMI digital
• Control Interface: PWM and Bluetooth via mobile app
• Integration: MAVLink-compatible

FAQ

Q: Can this camera be used with any drone?
A: It is compatible with MAVLink flight controllers and offers flexible mounting options, making it suitable for a wide range of drones.

Q: Does it record thermal and visual data at the same time?
A: Yes, it supports simultaneous video and image capture from both sensors.

Q: How is the imagery geo-tagged?
A: The system includes onboard GPS and IMU sensors for accurate image metadata tagging.

Q: Can I configure the camera settings remotely?
A: Yes, settings can be configured via Bluetooth using the Teledyne FLIR UAS mobile app.

Resources

Documents:

• Teledyne FLIR Duo Pro R Datasheet
• Teledyne FLIR Duo Pro R Manual
• Teledyne FLIR Duo Pro R Quickstart Guide
