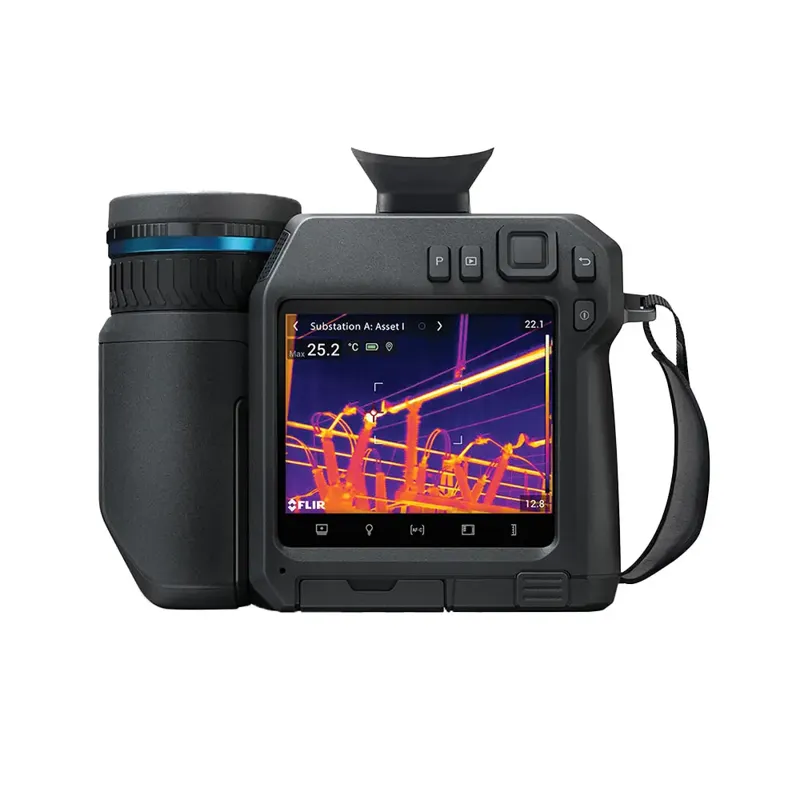

The Teledyne FLIR T840-24-14-NIST High-Performance Thermal Camera is engineered for rigorous thermographic inspections in the field. Designed with utility and electrical professionals in mind, it offers the flexibility to detect potential equipment failures across both indoor and outdoor environments. The camera features a bright 4-inch LCD display and an integrated eyepiece viewfinder that makes operation easy even in direct sunlight. The ergonomic 180° rotating lens platform allows for comfortable use in challenging angles and tight spaces.

Equipped with MSX and UltraMax technologies, this camera delivers unparalleled clarity and resolution by overlaying visual detail on infrared images and enhancing image fidelity beyond the native resolution. Laser-assisted autofocus and 1-Touch Level/Span optimize focus and contrast instantly, ensuring precise temperature measurements.

Supporting rapid and efficient documentation, the T840 enables field reporting, live Wi-Fi streaming to the FLIR Tools app, GPS-tagged imagery, and METERLiNK-enabled integration with compatible tools. This camera is a complete solution for predictive maintenance routines and critical infrastructure evaluations.

What's Included:

• 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 464 x 348, 30 Hz
• 1 - 24° Lens
• 1 - 14° Lens
• 1 - Small Viewfinder Eyecup
• 2 - Li-Ion Batteries
• 1 - Battery Charger
• 1 - Hard Transport Case
• 1 - Lanyards
• 1 - Front Lens Cap
• 1 - Power Supplies
• 1 - Printed Documentation
• 1 - SD Card (8 GB)
• 1 - USB 2.0 A to USB Type-C Cable
• 1 - USB Type-C to HDMI Cable
• 1 - USB Type-C to USB Type-C Cable
• 1 - 3-Month Subscription to FLIR Thermal Studio Pro and FLIR Route Creator
• 1 - NIST Certificate of Calibration

Features

Dual Lens Package
Includes both 14° and 24° lenses for versatile field of view options during inspections.

Advanced Imaging Technologies
MSX, UltraMax, and adaptive filtering provide clear, detailed thermal images with enhanced definition and accuracy.

Laser-Assisted Autofocus
Automatically locks onto targets to deliver crisp thermal imagery and accurate temperature readings.

Ergonomic 180° Rotating Lens
Designed to reduce user strain and allow easy inspection of hard-to-reach areas.

Integrated Viewfinder and LCD
Viewfinder and 4" LCD make inspections in bright sunlight or low visibility effortless.

Laser Distance Measurement
Enables fast component accessibility checks with on-screen distance readouts.

Intuitive Controls
Touchscreen interface and rapid response menu access enhance operational efficiency.

Wi-Fi Live Streaming
Stream footage in real time to the FLIR Tools app for remote diagnostics and collaboration.

GPS and METERLiNK Integration
Automatically embeds location and external measurement data for comprehensive documentation.

AutoCal Optics
Ensures seamless lens sharing across FLIR camera fleets without manual calibration.

Rapid Field Reporting
Built-in software tools help users organize findings and generate reports on the spot.

High IR Resolution
Features a 464 x 348 IR sensor and UltraMax capability up to 645,888 pixels for detailed thermal analysis.

What's Included

Included with Your Purchase:

• 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 464 x 348, 30 Hz
• 1 - 24° Lens
• 1 - 14° Lens
• 1 - Small Viewfinder Eyecup
• 2 - Li-Ion Batteries
• 1 - Battery Charger
• 1 - Hard Transport Case
• 1 - Lanyards
• 1 - Front Lens Cap
• 1 - Power Supplies
• 1 - Printed Documentation
• 1 - SD Card (8 GB)
• 1 - USB 2.0 A to USB Type-C Cable
• 1 - USB Type-C to HDMI Cable
• 1 - USB Type-C to USB Type-C Cable
• 1 - 3-Month Subscription to FLIR Thermal Studio Pro and FLIR Route Creator
• 1 - NIST Certificate of Calibration

Specifications

• IR Resolution: 464 x 348 pixels
• UltraMax Resolution: 645,888 effective pixels
• Image Frequency: 30 Hz
• Temperature Range: -4 to 2732°F
• F-Number: f/1.1 (42°), f/1.3 (24°), f/1.5 (14°), f/1.35 (6°)
• Minimum Focus Distance: 0.15 m (24° lens), 1.0 m (14° lens)
• Display: 4-inch scratch-resistant LCD
• Viewfinder: Integrated eyepiece viewfinder
• Connectivity: Wi-Fi, USB Type-C, HDMI
• Battery: 2 x Li-Ion rechargeable
• GPS: Embedded GPS location tagging
• Software: FLIR Thermal Studio Pro (3-month subscription)
• Calibration: Includes NIST Certificate

FAQ

Q: What is the resolution of the thermal camera?
A: The T840 delivers a native IR resolution of 464 x 348 pixels and up to 645,888 pixels using UltraMax technology.

Q: Can this camera be used in bright outdoor conditions?
A: Yes, it features a bright LCD and an integrated viewfinder for effective use in various lighting conditions.

Q: Does this model support live streaming?
A: Yes, it supports Wi-Fi streaming to the FLIR Tools mobile app.

Q: Is GPS data embedded in captured images?
A: Yes, GPS locations are automatically embedded in each image.

Q: What is the benefit of the rotating lens block?
A: The 180° rotating optical block enhances ergonomics and allows for flexible viewing angles during inspections.

Resources

Documents:

• FLIR T8xx Series Datasheet
