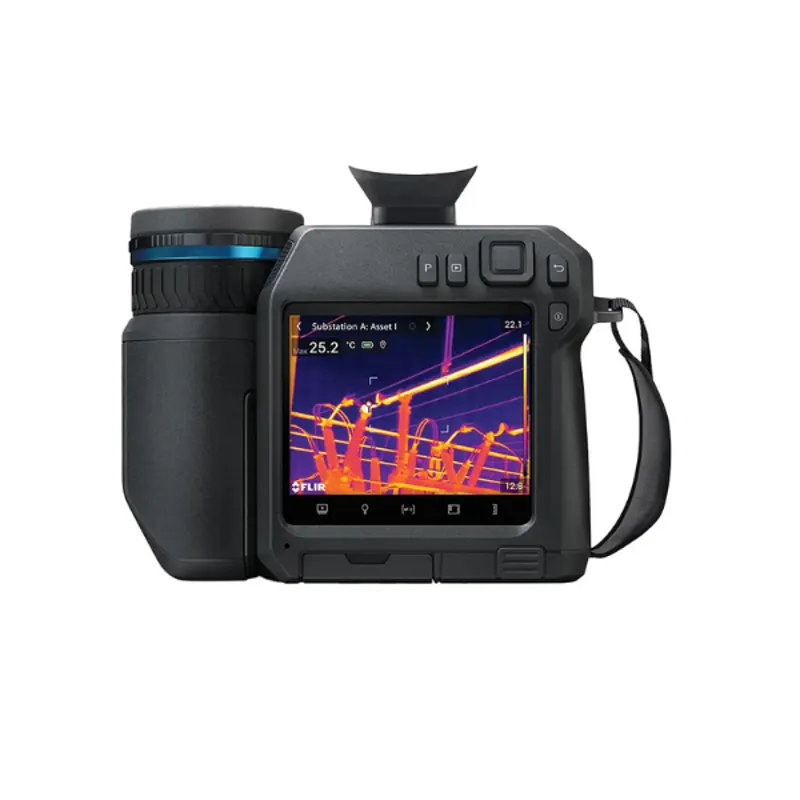

The Teledyne FLIR T840-24-6 High-Performance Thermal Camera is an advanced, ergonomic infrared inspection tool designed for industrial professionals who need precise and efficient thermal imaging. Equipped with both 24° and 6° lenses, this camera allows for flexible image capture of both broad areas and distant, small targets. Its 464 x 348 IR resolution, enhanced with UltraMax super-resolution technology, delivers up to 645,888 pixels of crisp, detailed imagery.
With FLIR’s MSX technology, users get enhanced image clarity by overlaying visual details onto thermal images for easy identification. The 180° rotating optical block and integrated viewfinder ensure ease of use in bright or awkward environments. The T840 seamlessly integrates with FLIR Thermal Studio Pro and FLIR Ignite cloud for advanced workflow, organization, and reporting. Additional features like laser-assisted autofocus, 1-Touch Level/Span, voice annotations, and route-based inspection capability support faster diagnostics and more efficient predictive maintenance.
What's Included:
- Teledyne FLIR T840 Thermal Camera
- 24° Standard Lens
- 6° Telephoto Lens
- FLIR Thermal Studio Pro Software
- Inspection Route Software License
- Li-ion Rechargeable Battery
- Battery Charger
- Hard Carrying Case
- USB Cable
- SD Card
Features
Dual Lens Configuration
Comes with both a 24° lens for general use and a 6° telephoto lens for long-distance, precision targeting.

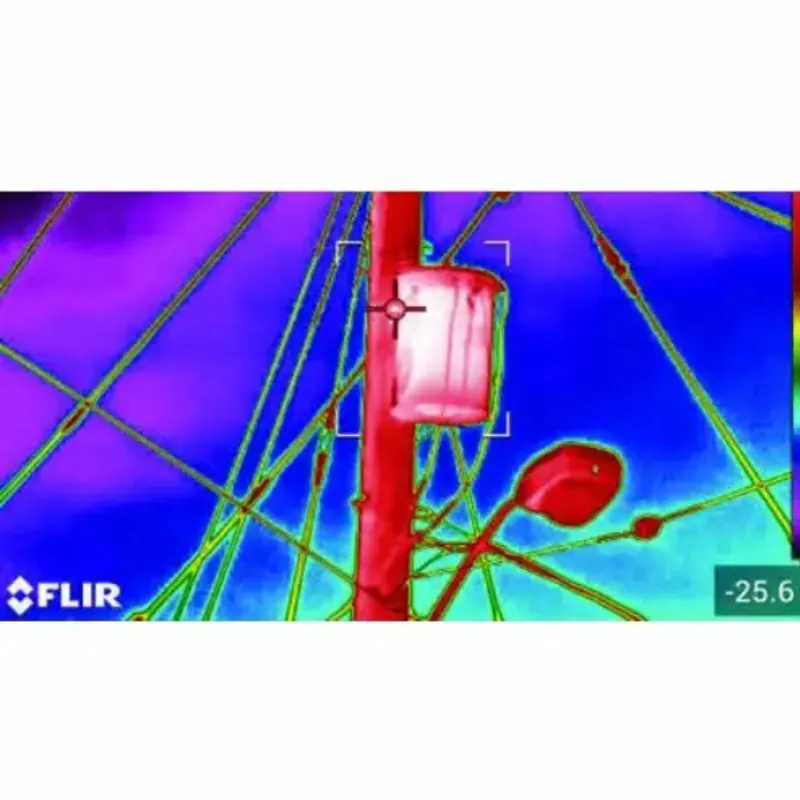

FLIR MSX Image Enhancement
Blends visual and thermal images to produce highly detailed thermal photos with readable labels and markers.
UltraMax Technology
Enhances image resolution to 645,888 pixels by capturing and processing multiple frames for improved clarity and accuracy.
Ergonomic and Flexible Design

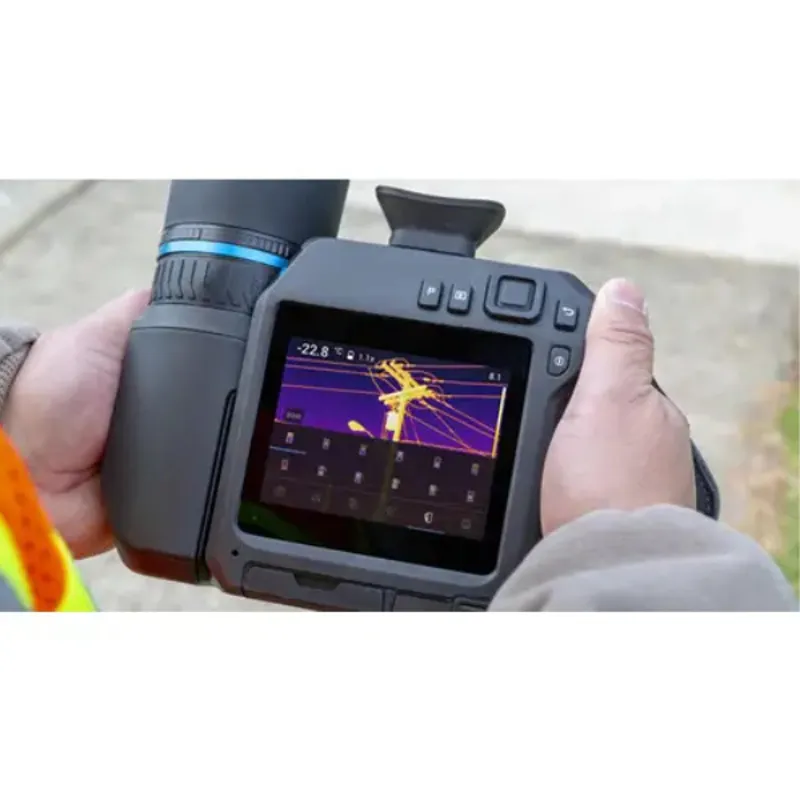

180° rotating optical block and viewfinder allow for comfortable operation in bright or awkward positions.
Efficient Data Collection
Develop and upload inspection routes to capture data in a structured, repeatable manner using FLIR Thermal Studio Pro.
Secure Cloud Connectivity
Seamless upload and backup via FLIR Ignite cloud services ensures organized data and simplified reporting.
Precision Measurement
Laser-assisted autofocus and 1-Touch Level/Span improve targeting accuracy and reduce measurement error.
Comprehensive Annotation Tools
Supports voice, text, and sketch annotations to streamline inspection documentation.
Versatile Usage Scenarios
Designed to perform in bright sunlight, low light, and across a wide range of temperatures and distances.
Advanced Communication Interfaces
Includes Wi-Fi, Bluetooth, DisplayPort, and USB for data transfer, video streaming, and syncing with FLIR apps.
What's Included
Included with Your Purchase:
- Teledyne FLIR T840 Thermal Camera
- 24° Standard Lens
- 6° Telephoto Lens
- FLIR Thermal Studio Pro Software
- Inspection Route Software License
- Li-ion Rechargeable Battery
- Battery Charger
- Hard Carrying Case
- USB Cable
- SD Card
Specifications
- IR Resolution: 464 x 348 (645,888 with UltraMax)
- Detector Pitch: 17 μm
- Object Temperature Ranges: -20 to 120°C, 0 to 650°C, 300 to 1500°C
- Digital Zoom: 1 to 6x continuous
- Macro Mode: 71 μm minimum focus distance
- Spotmeter/Area Tools: 3 each (live mode)
- Accuracy: ±2°C or ±2%
- Detector Type: Uncooled microbolometer
- Spectral Range: 7.5 to 14.0 μm
- Image Frequency: 30 Hz
- Lens F-Number: f/1.3 (24°), f/13.5 (6°)
- Focus Modes: Laser-assisted, contrast, manual
- Minimum Focus Distance: 0.15 m (24°), 5.0 m (6°)
- Display: 4" 640 x 480 touchscreen LCD
- Camera Resolution: 5 MP with LED lamp
- Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Image Modes: Infrared, Visual, MSX, Picture-in-Picture
- Measurement Presets: Center spot, Hot/Cold spot, User Presets
- Laser Pointer & Distance Meter: Yes
- Voice Annotation: 60 sec via mic or Bluetooth
- GPS Tagging: Automatic
- Cloud Connectivity: FLIR Ignite
- Storage: SD card and cloud upload
- File Format: Radiometric JPEG
- Battery Life: Approx. 4 hours
- Operating Temp Range: -15°C to 50°C
- Shock/Vibration/IP Rating: 25 g / 2 g / IP54
FAQ
Q: What is the benefit of having both 24° and 6° lenses?
A: The 24° lens is ideal for general scanning, while the 6° lens allows for precise thermal readings at long distances.
Q: How does UltraMax enhance thermal images?
A: UltraMax captures multiple images and merges them into a higher resolution image, providing improved detail and clarity.
Q: Can I upload data directly to the cloud?
A: Yes, the camera supports FLIR Ignite for secure and automatic cloud storage and file management.
Q: What is the maximum operating temperature range?
A: The camera operates in environments from -15°C to 50°C and measures up to 1500°C.
Q: Is the T840-24-6 compatible with mobile apps?
A: Yes, it supports Wi-Fi sync with FLIR mobile apps for convenient data transfer and reporting.
Resources
Documents:
- FLIR T8xx Series Datasheet
