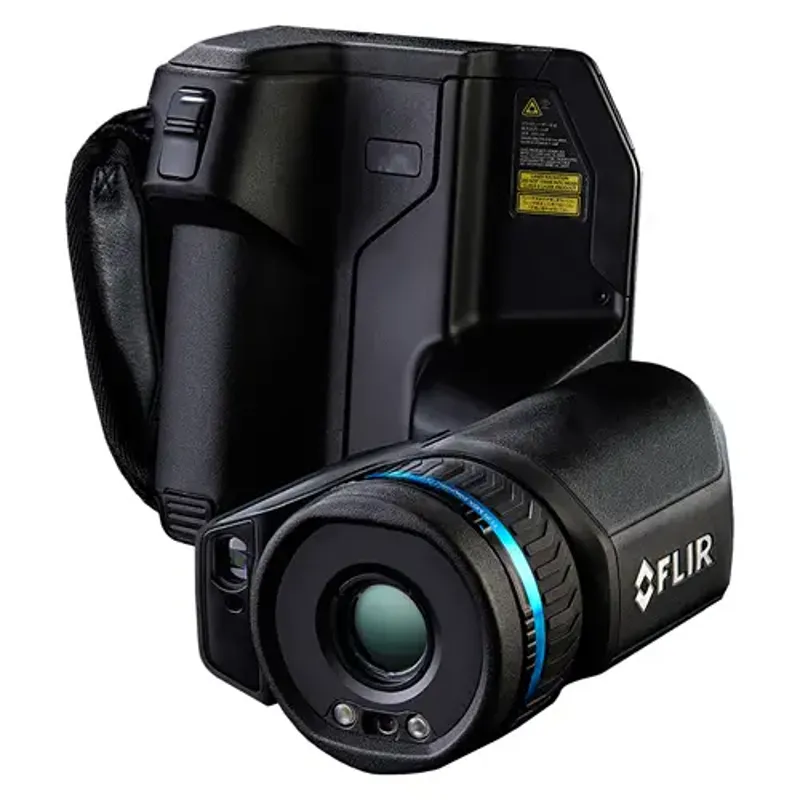

The Teledyne FLIR T530-14 Thermal Imaging Camera is built to meet the demanding needs of thermographers and service professionals in utilities, manufacturing, and electrical environments. Featuring a high-resolution 320 x 240 detector and 14° lens, this powerful thermal imager delivers precise, high-quality imagery even from long distances. The 180° rotating optical block allows easy capture of hard-to-reach targets overhead or below, reducing strain during long inspection sessions.
MSX (Multi-Spectral Dynamic Imaging) enhances thermal images with visible spectrum detail, making text and object edges clearly defined for quick identification. UltraMax technology further boosts image clarity and resolution by compiling multiple frames into one high-quality thermal image with four times the pixel count.
With advanced tools like laser-assisted autofocus, laser distance measurement, and AutoCal interchangeable lenses, the T530-14 is equipped for flexibility and accuracy. Its intuitive interface, 4-inch touchscreen, and customizable folders improve workflow efficiency, while features like GPS-tagged imaging and METERLiNK support enhance documentation quality.

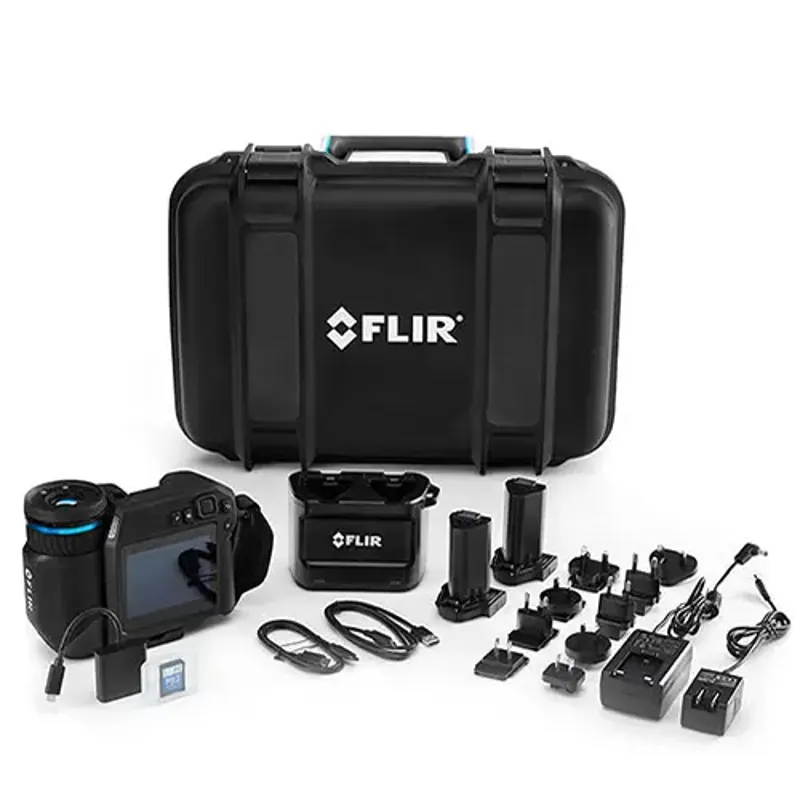

What's Included:
- FLIR T530 Thermal Imaging Camera with 14° Lens
- Battery (T199300ACC)
- Battery Charger (T199610)
- USB Type-C Cable (T911631ACC)
- FLIR Software License (T300083)
- Protective case and accessories
Features
High-Resolution Thermal Imaging
320 x 240 thermal resolution paired with a 14° lens captures 161,472 non-contact temperature points for long-distance scans.
Extended Temperature Range
Measures from -4 to 1202°F when upgraded with the T199616 module, ideal for industrial and high-temperature inspections.
180° Rotating Optical Block
Allows imaging in hard-to-reach areas without physical strain, ideal for overhead or low-ground targets.
AutoCal Interchangeable Lenses
Compatible with other FLIR cameras in your fleet, offering flexibility across different inspection scenarios.
Laser-Assisted Autofocus
Delivers sharp, accurate thermal images by aligning focus with the exact measurement target.
FLIR Vision Processing
Combines MSX, UltraMax, and adaptive filtering for enhanced image clarity and detail.
Laser Distance and Area Measurement
On-screen distance measurements help determine component accessibility for service or repair.

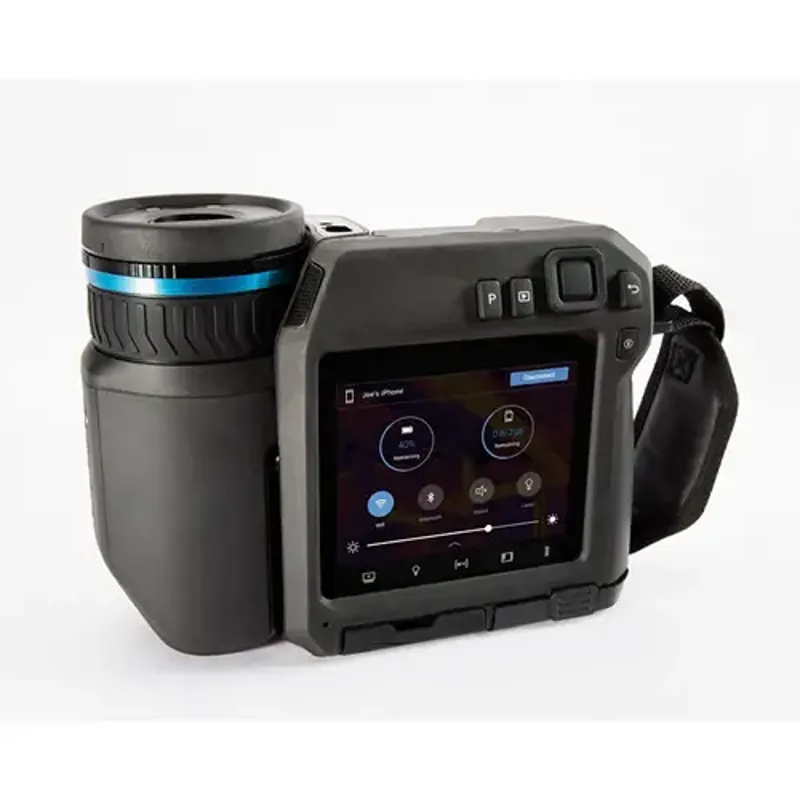

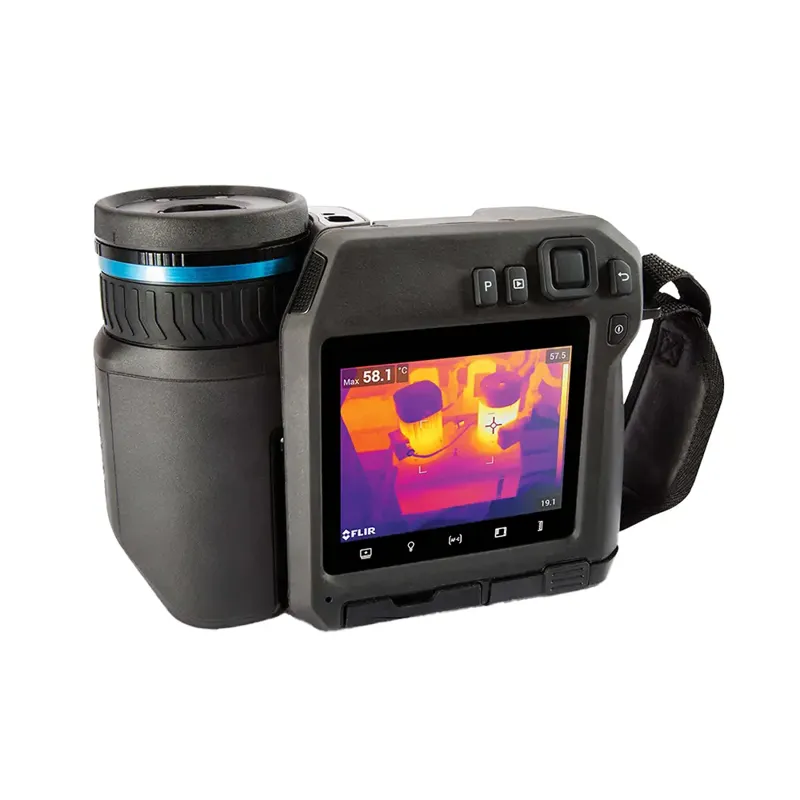

4-inch LCD Touchscreen
Scratch-resistant and daylight-readable screen simplifies navigation and data capture.
Intuitive User Interface
Touchscreen and two customizable buttons allow quick access to functions and settings.
Streamlined Reporting Tools
Features voice annotation, auto-filled text comments, and image sketch for detailed field documentation.
Integrated GPS and METERLiNK
Enables geo-tagged imagery and data integration with compatible FLIR multimeters and clamps.
Customizable Work Folders
Organize inspection data directly on the camera for fast retrieval and reporting.
What's Included
Included with Your Purchase:
- FLIR T530 Thermal Imaging Camera with 14° Lens
- Battery (T199300ACC)
- Battery Charger (T199610)
- USB Type-C Cable (T911631ACC)
- FLIR Software License (T300083)
- Protective case and accessories
Specifications
- Thermal Resolution: 320 x 240 pixels
- Lens: 14° field of view
- Temperature Range: -4 to 1202°F (with T199616 upgrade)
- Zoom: 1 to 4x continuous
- Focus: Laser-assisted autofocus
- Display: 4-inch LCD touchscreen
- Imaging Enhancements: MSX, UltraMax, FLIR Vision Processing
- Measurement Tools: Laser distance and on-screen area measurement
- GPS: Embedded GPS with image tagging
- Connectivity: USB Type-C, METERLiNK support
- User Interface: Touchscreen 2 programmable buttons
- Documentation: Voice annotation, text, image sketch
- Lens System: AutoCal intelligent interchangeable lenses
- Refresh Rate: 30 Hz
FAQ
Q: What is the advantage of the 14° lens?
A: It allows for detailed thermal readings from greater distances, ideal for scanning large equipment from a safe position.
Q: What does UltraMax do?
A: UltraMax enhances image clarity and resolution by combining multiple thermal images into one high-definition composite with four times more pixels.
Q: Can I share lenses between different FLIR cameras?
A: Yes, the AutoCal lens system is compatible across various FLIR camera models for maximum flexibility.
Q: Is the camera suitable for outdoor industrial environments?
A: Absolutely. The rugged design, extended temperature range, and scratch-resistant display make it ideal for challenging field use.
Q: Does it include software for image analysis?
A: Yes, it comes with a FLIR software license for advanced thermal image analysis and reporting.
Resources
Documents:
- FLIR T5xx Series Datasheet
- FLIR T5xx Series Brochure
