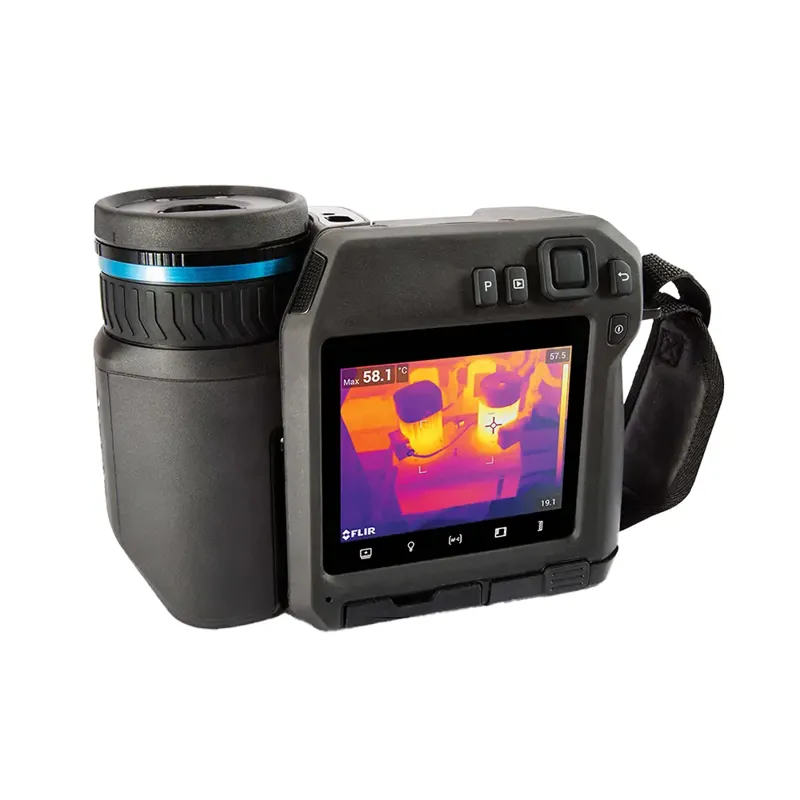

The Teledyne FLIR T530-24-14 Thermal Imaging Camera is engineered to meet the demanding needs of professional thermographers and IR consultants. Featuring both 24° and 14° lenses, it delivers crisp thermal imagery at a resolution of 320 x 240 and captures up to 161,472 temperature measurement points without contact. Its ergonomic 180° rotating optical block and scratch-resistant 4-inch LCD screen allow for effortless inspections of hard-to-reach equipment, minimizing physical strain and maximizing field visibility.
Advanced imaging tools such as MSX (Multi-Spectral Dynamic Imaging) and UltraMax provide unmatched clarity and thermal resolution, helping identify critical problems instantly. Integrated laser-assisted autofocus and on-screen laser distance measurement ensure accurate targeting. With intuitive touchscreen controls, customizable folders, GPS tagging, and advanced reporting tools including voice annotation and image sketching, the T530-24-14 simplifies and elevates workflow efficiency across power generation, electrical distribution, and industrial applications.

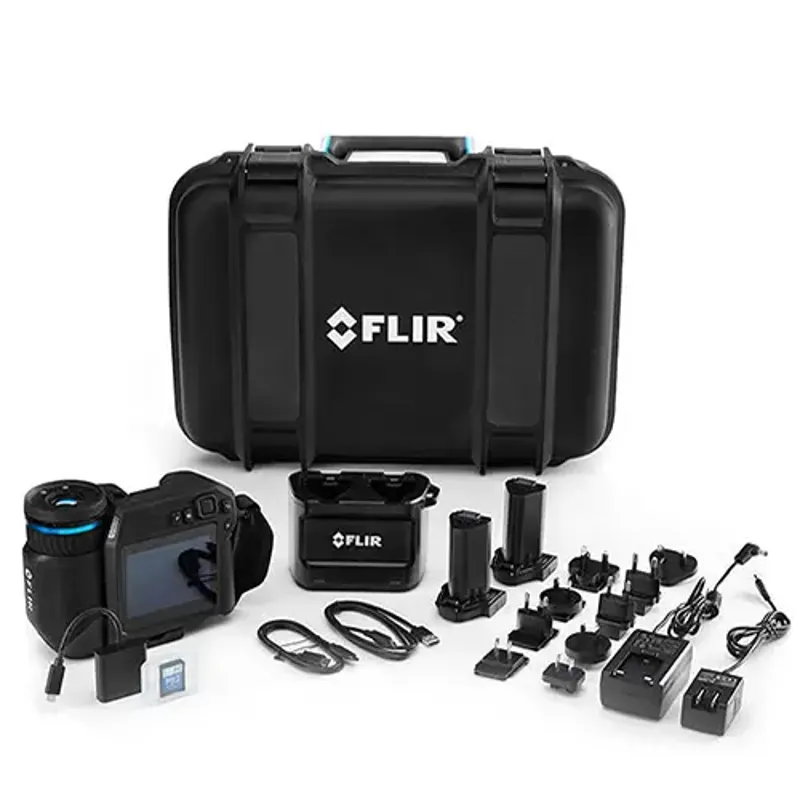

What's Included:
- Teledyne FLIR T530 Thermal Imaging Camera
- 24° Lens
- 14° Lens
- Battery
- Battery Charger
- USB 2.0A to USB Type-C Cable
- Hard Transport Case
- Wrist Strap
- Power Supply
- FLIR Thermal Studio Software License (select bundles only)
Features
Dual Lenses for Versatility
Includes both 24° and 14° lenses, allowing flexibility for wide-area scans or detailed zoom inspections with 320 x 240 resolution.

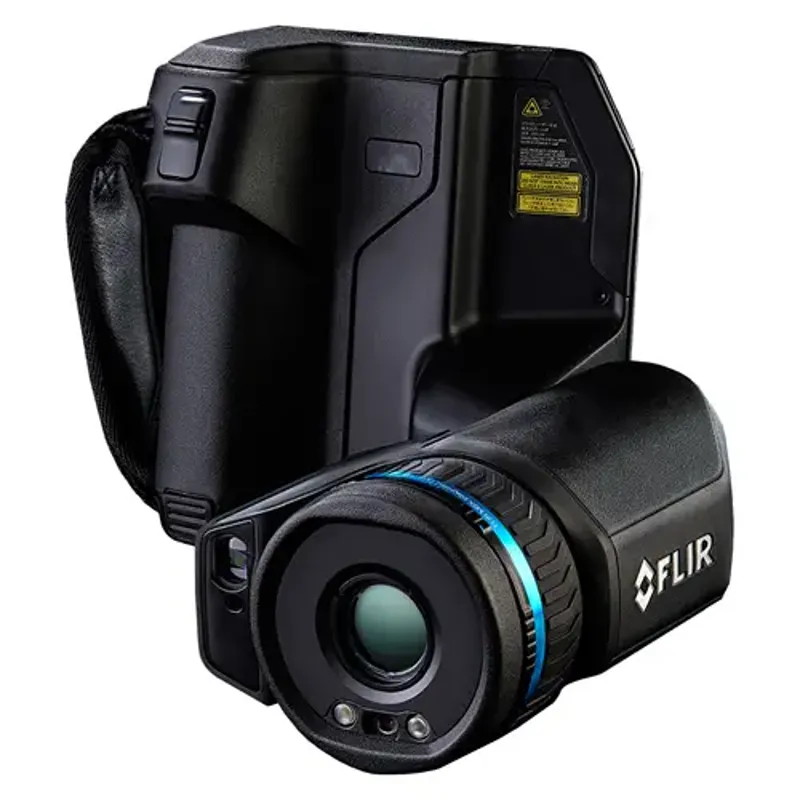

Rotating Optical Block
180° rotating lens module enables comfortable inspections overhead, at ground level, or around obstructions without awkward positioning.
Laser-Assisted Autofocus
Ensures every image is sharp and temperature measurements are precise, minimizing time spent adjusting focus manually.
FLIR Vision Processing
Combines MSX, UltraMax, and proprietary filtering for enhanced image clarity and deeper visual detail.
UltraMax SuperResolution
Enhances captured images to provide quadrupled pixel count and improved measurement accuracy of small targets.
Comprehensive Measurement Range
Detects temperatures from -4°F to 1202°F, expandable with T199616 option for high-temp inspections.
On-Screen Laser Distance Measurement
Quickly assess distance and target area using an integrated laser system for spatial awareness.
Streamlined Data Management
Features voice and text annotation, image sketching, and custom folder creation to enhance reporting workflows.
Durable, Intuitive Interface
Features a high-resolution 4-inch LCD screen with responsive touchscreen and two programmable hardware buttons.
AutoCal Lens Compatibility
Intelligent lenses can be shared across FLIR T-Series models without recalibration, enhancing fleet flexibility.
What's Included
Included with Your Purchase:
- Teledyne FLIR T530 Thermal Imaging Camera
- 24° Lens
- 14° Lens
- Battery
- Battery Charger
- USB 2.0A to USB Type-C Cable
- Hard Transport Case
- Wrist Strap
- Power Supply
- FLIR Thermal Studio Software License (select bundles only)
Specifications
- Infrared Resolution: 320 x 240 pixels
- Thermal Sensitivity (NETD): <40 mK
- Field of View: 24° and 14° (included lenses)
- Temperature Range: -4°F to 1202°F (with T199616 upgrade)
- Zoom: 1–4x continuous digital zoom
- Autofocus: Laser-assisted
- Display: 4-inch, 640 x 480 LCD touchscreen
- Imaging Enhancements: MSX, UltraMax, FLIR Vision Processing
- Data Storage: Onboard SD card and internal storage
- Connectivity: USB Type-C, Wi-Fi, Bluetooth, GPS
- Frame Rate: 30 Hz
- Battery Life: Approximately 4 hours
- Charging Time: Approx. 2.5 hours
- Weight: 2.95 lbs with battery and lens
FAQ
Q: Can I switch between the 24° and 14° lenses?
A: Yes, both lenses are included and easily interchangeable using FLIR’s AutoCal system.
Q: What is UltraMax and how does it improve image quality?
A: UltraMax enhances thermal resolution by combining multiple images into one high-resolution image, allowing for more detailed inspections.
Q: Is the camera suitable for high-temperature applications?
A: Yes, the camera can detect up to 1202°F when equipped with the T199616 high-temperature upgrade.
Q: How do I manage reports and inspection data?
A: Use the built-in voice notes, text annotations, GPS tags, and image sketching tools for streamlined report generation with FLIR Thermal Studio software.

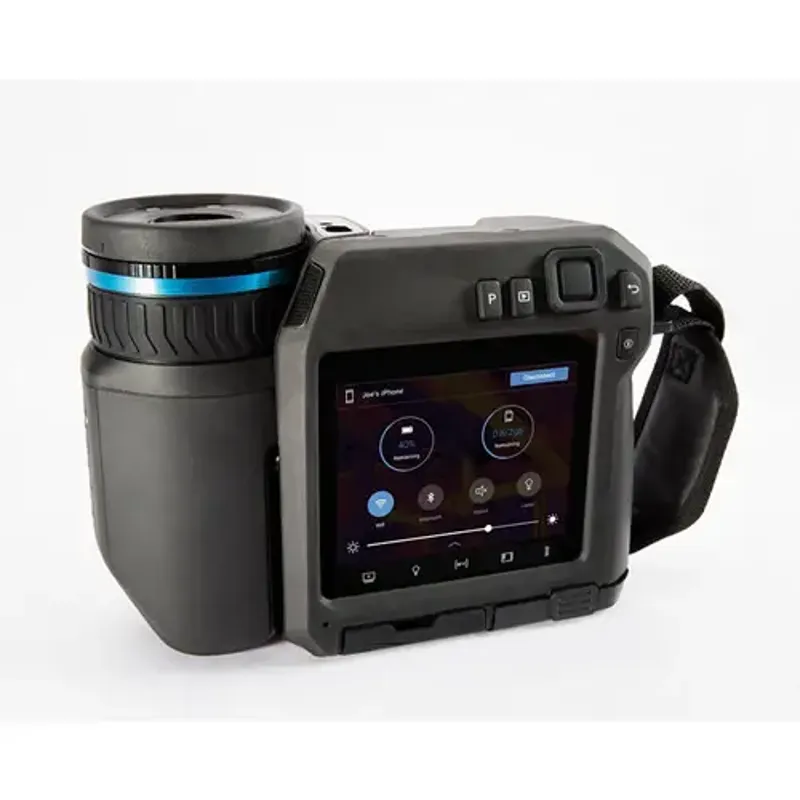

Q: Does the T530 support wireless data transfer?
A: Yes, it includes Wi-Fi and Bluetooth for wireless connectivity and syncing.
