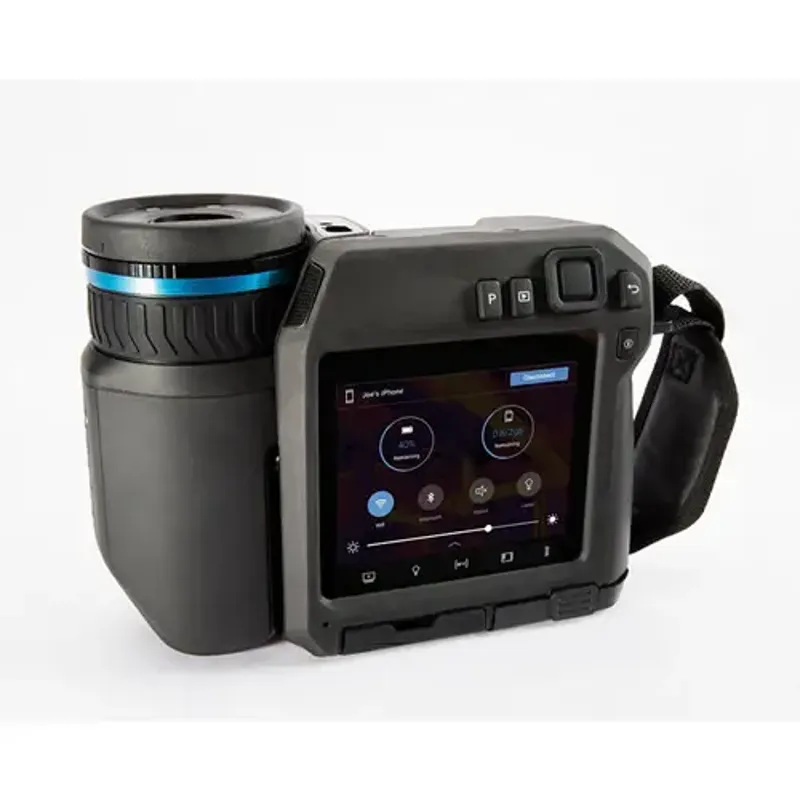

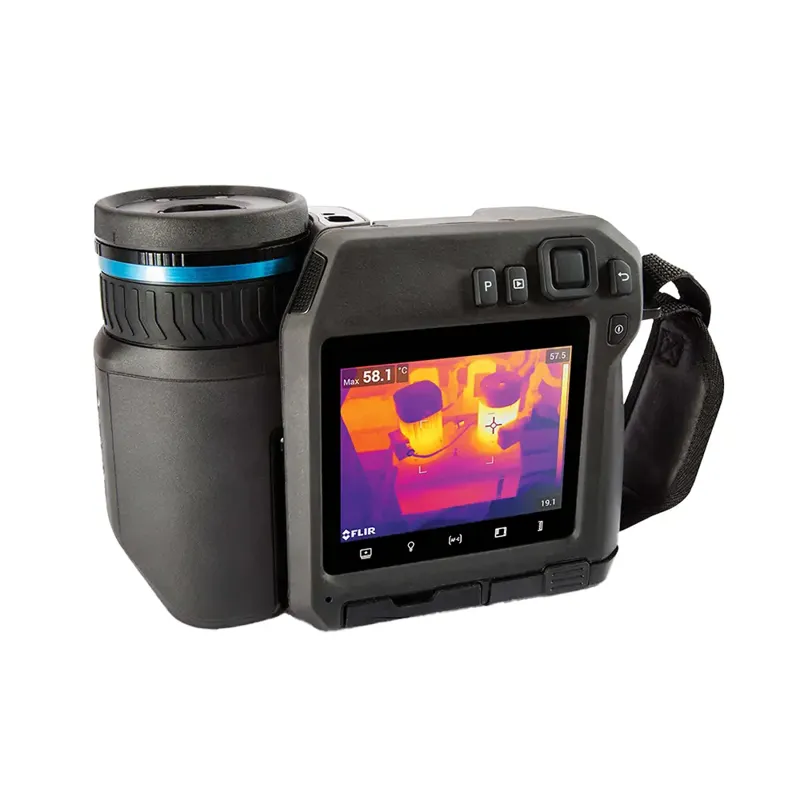

The Teledyne FLIR T530-24-42-NIST Thermal Imaging Camera is engineered for professional thermographers and service consultants who demand high-resolution imagery, ergonomic handling, and fast diagnostics in challenging environments. Featuring a 180° rotating optical block, vibrant 4-inch LCD touchscreen, and dual 24° and 42° lenses, this advanced tool allows easy inspection of difficult-to-access equipment from safe distances.
MSX (Multi-Spectral Dynamic Imaging) technology enhances thermal imagery by overlaying visible-light edges onto infrared data, making labels and identifiers easy to read without referring back to a visual image. UltraMax technology further refines thermal resolution by combining 16 slightly offset images to generate an ultra-clear, high-resolution composite with enhanced measurement accuracy.
This model comes NIST-calibrated with a 12-point inspection and calibration process, ensuring accuracy and compliance for regulated applications. The FLIR T530-24-42-NIST also supports customizable workflows, embedded GPS, METERLiNK data integration, and intelligent lens interchangeability with AutoCal optics.

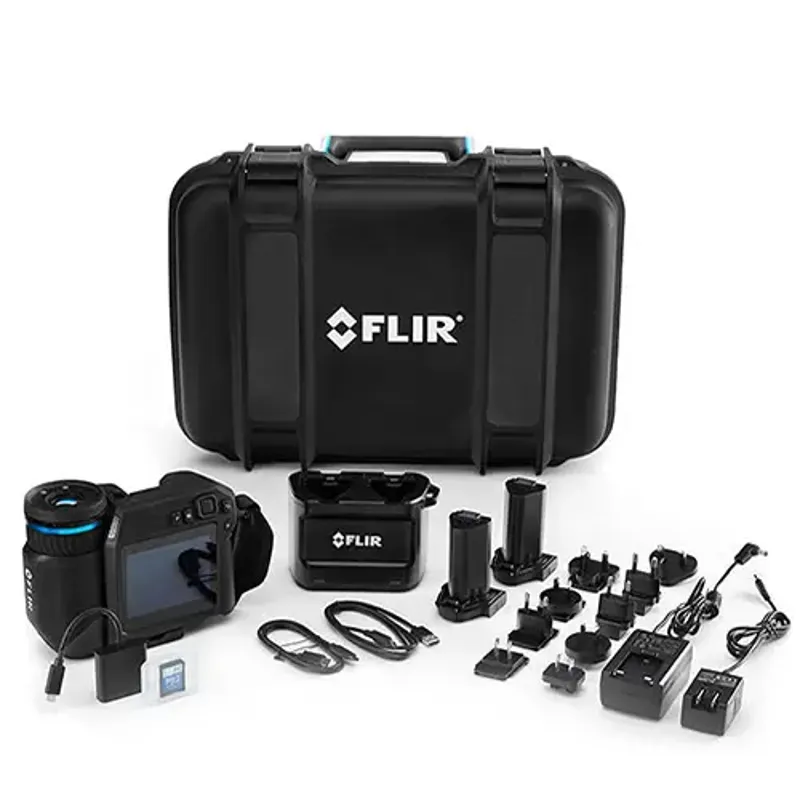

What's Included:
- Teledyne FLIR T530 Thermal Imaging Camera
- 24° and 42° AutoCal Interchangeable Lenses
- Laser-assisted autofocus system
- 4" scratch-resistant LCD touchscreen
- NIST Certificate of Calibration
- Carrying case and accessories
Features
Dual Lens Options
Comes with 24° and 42° lenses offering 320 x 240 resolution for broad and detailed scanning flexibility.
Wide Temperature Range
Measures temperatures from -4 to 1202°F with optional upgrades for higher ranges.

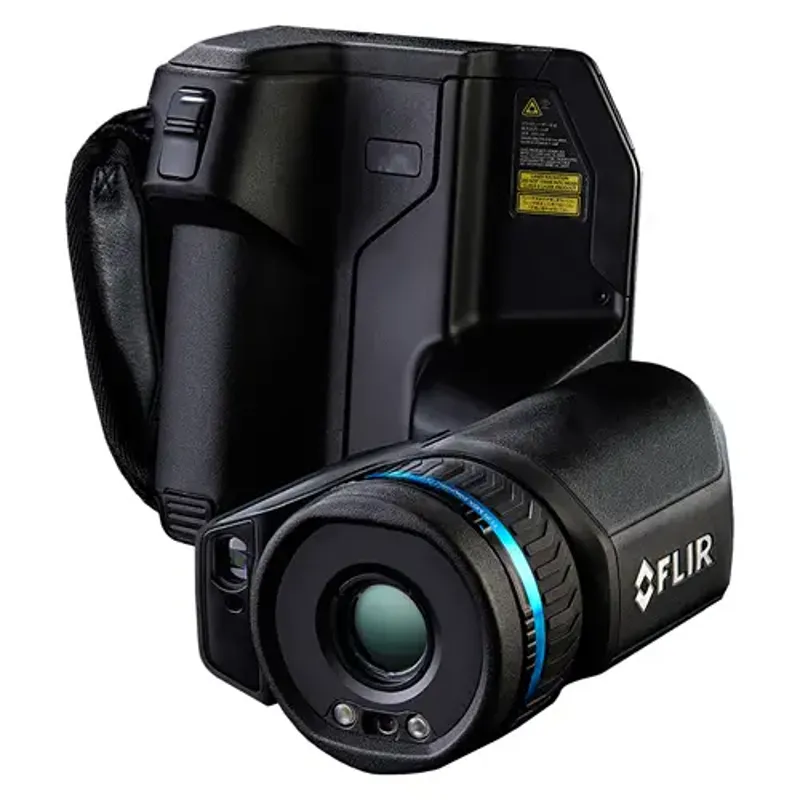

180° Rotating Optical Block
Allows for ergonomic imaging of high or low targets without physical strain.
Laser-Assisted Autofocus
Ensures precise focus and accurate temperature readings in every shot.
Advanced Image Processing
FLIR Vision Processing enhances clarity using MSX, UltraMax, and adaptive filtering.
On-Screen Laser Distance Measurement
Displays real-time component distances for accessibility assessment.
Durable Touchscreen Display
4" high-resolution LCD with scratch-resistant coating for clear viewing.
Customizable Interface
Intuitive controls with responsive touchscreen and programmable buttons.
Efficient Reporting Tools
Built-in voice/text annotations and image sketching streamline documentation.
Embedded GPS and METERLiNK Integration
Geo-tags images and collects external measurement data from compatible devices.
AutoCal Lens Compatibility
Share and auto-calibrate lenses across multiple FLIR T-Series models.
NIST Certified Accuracy
Includes a traceable calibration certificate for compliance and confidence.
What's Included
Included with Your Purchase:
- Teledyne FLIR T530 Thermal Imaging Camera
- 24° and 42° AutoCal Interchangeable Lenses
- Laser-assisted autofocus system
- 4" scratch-resistant LCD touchscreen
- NIST Certificate of Calibration
- Carrying case and accessories
Specifications
- Thermal Resolution: 320 x 240 pixels
- Lens Options: 24° and 42°
- Temperature Range: -4°F to 1202°F (upgrade required for high temp)
- Zoom: 1 – 4x continuous digital zoom
- Display: 4" scratch-resistant LCD
- Image Enhancement: MSX, UltraMax, Adaptive Filtering
- Focus: Laser-assisted autofocus
- GPS: Embedded GPS geotagging
- Data Communication: METERLiNK compatible
- Certifications: NIST Certificate included
- Controls: Touchscreen 2 programmable buttons
FAQ
Q: What is the resolution of the FLIR T530-24-42-NIST?
A: It offers 320 x 240 thermal resolution with image enhancement via UltraMax.
Q: Is the camera suitable for high-temperature environments?
A: Yes, but a T199616 upgrade is required for measurements up to 1202°F.
Q: Can I use lenses from other FLIR cameras with this model?
A: Yes, it supports interchangeable AutoCal lenses across FLIR T-Series cameras.
Q: What kind of display does it have?
A: A 4-inch, scratch-resistant LCD touchscreen with intuitive control access.
Q: What is included with the NIST certificate?
A: A 12-point calibration and inspection with a traceable certificate of conformance.
