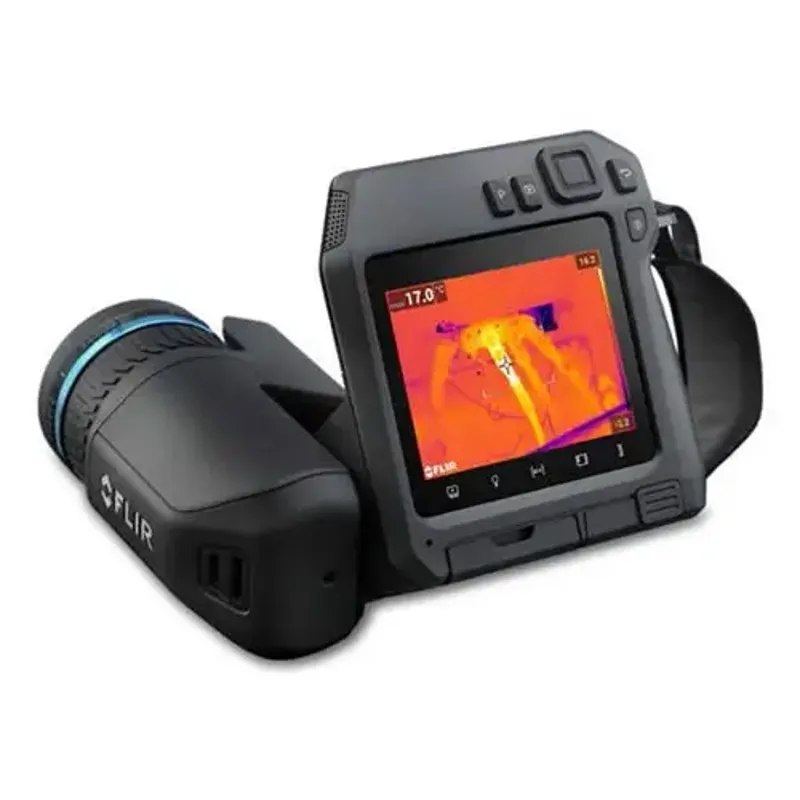

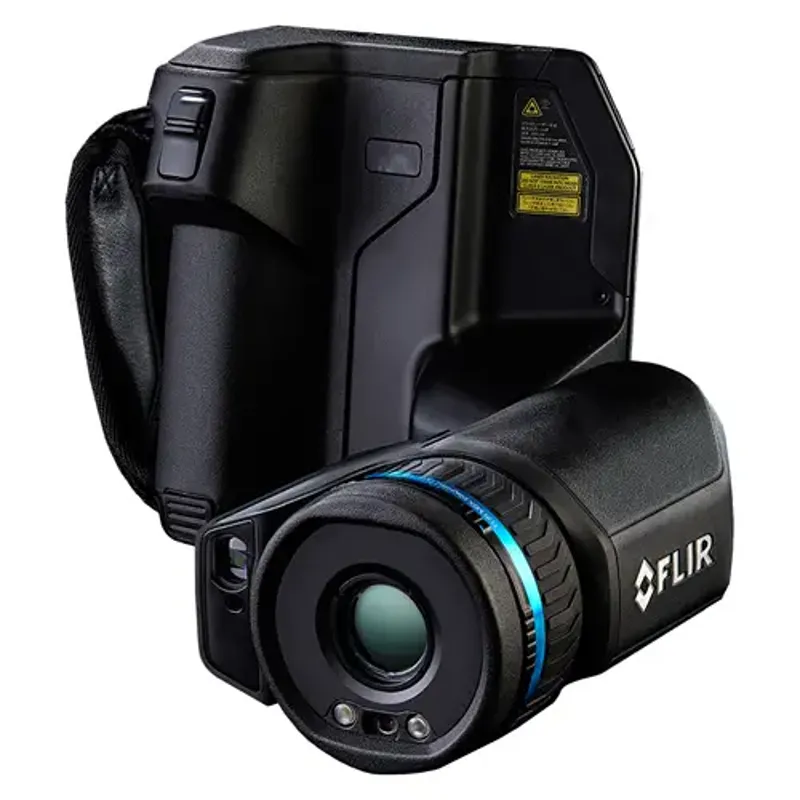

The Teledyne FLIR T530-24-NIST Thermal Imaging Camera is purpose-built for thermography professionals who demand accuracy, versatility, and ergonomic design in challenging inspection environments. With a 24° lens and a crisp 320 x 240 resolution sensor, this camera excels in identifying hotspots and hidden issues across electrical, mechanical, and industrial applications.

The rotating 180° optical block enables seamless imaging in hard-to-reach or overhead spaces, minimizing operator strain during extended sessions. Enhanced by FLIR’s MSX and UltraMax image processing technologies, the T530 delivers clear, data-rich thermal visuals that support fast, accurate diagnostics. Onboard laser-assisted autofocus, laser distance measurement, and real-time GPS tagging make data collection highly reliable and efficient.

With intuitive touchscreen controls, customizable work folders, voice and text annotations, and METERLiNK connectivity for correlating data from compatible meters, the T530 streamlines every stage of the inspection and reporting process. Its NIST-traceable calibration ensures compliance and precision, reinforced by FLIR’s 12-point inspection and calibration program.

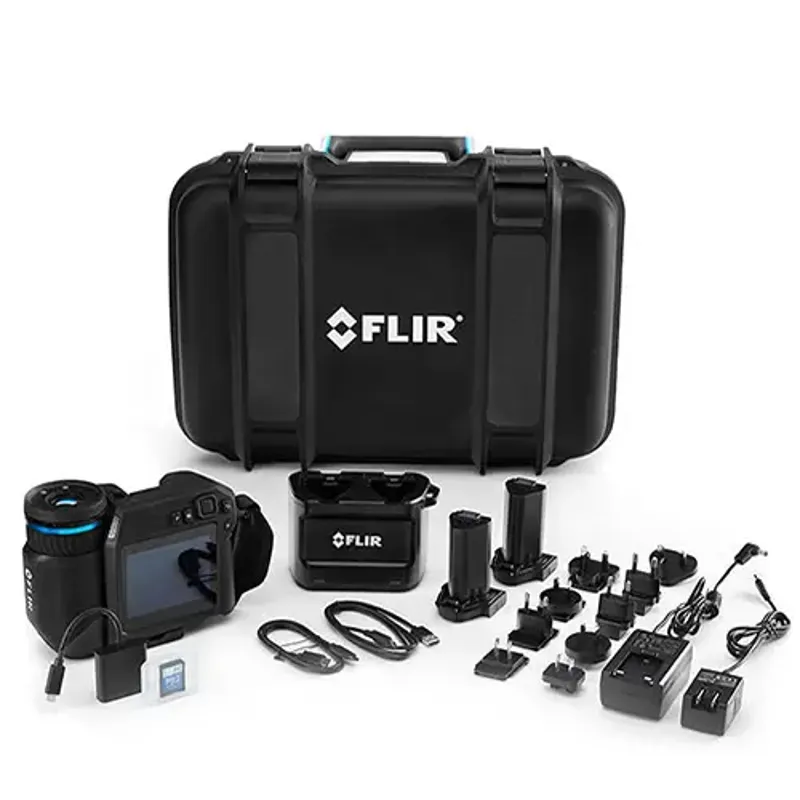

What's Included:

• Teledyne FLIR T530 Thermal Camera with 24° lens
• NIST Traceable Calibration Certificate
• Battery and Battery Charger
• USB Cable
• FLIR Software License
• Hard Carrying Case

Features

24° Lens with 320 x 240 Resolution
Captures detailed thermal images ideal for electrical, mechanical, and process inspections.

Wide Temperature Range
Measures from -4 to 1202°F with optional upgrade, covering everything from HVAC to high-temperature industrial equipment.

Laser-Assisted Autofocus
Ensures sharp, accurate focus to maintain precise thermal readings.

UltraMax SuperResolution
Enhances image clarity by generating higher resolution composites from rapid image sequences.

FLIR Vision Processing with MSX
Combines edge detail from visible light with thermal data to create sharper, more informative images.

180° Rotating Optical Block
Provides ergonomic flexibility for inspecting hard-to-access areas with minimal strain.

Laser Distance and On-Screen Area Measurement
Accurately assess distances and coverage areas during thermal inspections.

Customizable Reporting Tools
Includes voice annotations, text comments, image sketching, and embedded GPS tagging for efficient reporting.

AutoCal Lens Compatibility
Allows lens sharing across your fleet for added flexibility and cost efficiency.

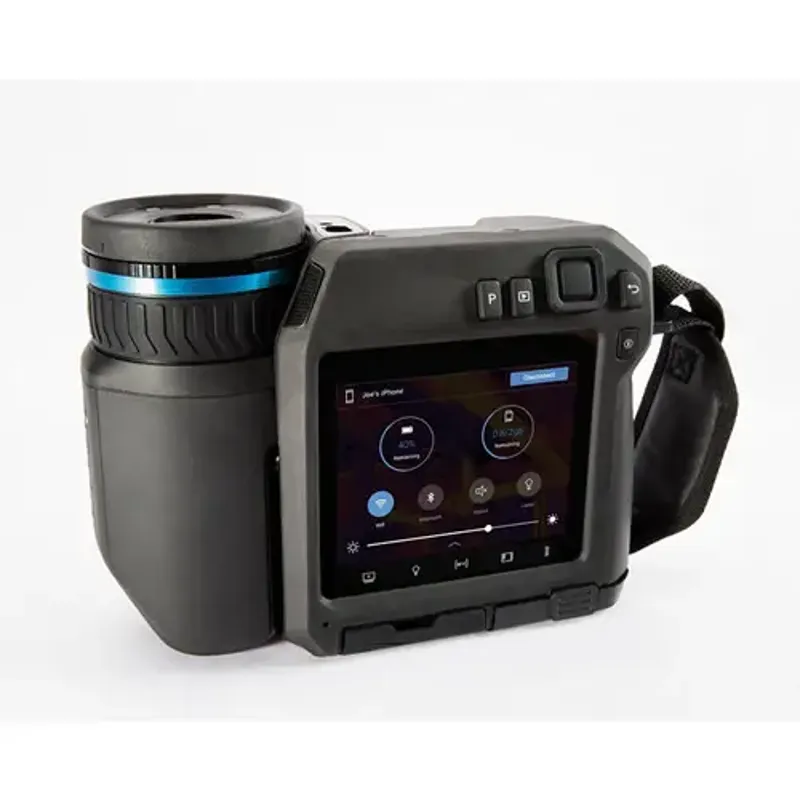

Intuitive Controls
Combines a responsive touchscreen with programmable buttons for quick access to settings and functions.

NIST Certified
Comes calibrated with a certificate traceable to national standards, ensuring data integrity for professional reporting.

What's Included

Included with Your Purchase:

• Teledyne FLIR T530 Thermal Camera with 24° lens
• NIST Traceable Calibration Certificate
• Battery and Battery Charger
• USB Cable
• FLIR Software License
• Hard Carrying Case

Specifications

• Infrared Resolution: 320 x 240 pixels
• Lens Field of View: 24°
• Temperature Range: -4°F to 1202°F (with T199616 upgrade)
• Zoom: 1–4x continuous digital
• Display: 4 in. scratch-resistant LCD touchscreen
• Focus: Laser-assisted and manual
• Image Processing: MSX, UltraMax, adaptive filtering
• Camera Rotation: 180° optical block
• Measurement Tools: Laser distance, on-screen area
• Annotation Options: Voice, text, sketch
• Connectivity: USB, METERLiNK
• Calibration: NIST-traceable 12-point inspection

FAQ

Q: What industries is the FLIR T530-24-NIST best suited for?
A: It's ideal for power generation, manufacturing, electrical utilities, and HVAC applications.

Q: Can I upgrade the temperature range?
A: Yes, upgrading with the T199616 accessory allows measurements up to 1202°F.

Q: Does the T530 support interchangeable lenses?
A: Yes, it uses AutoCal lenses that can be shared across other FLIR cameras.

Q: Is the camera easy to use for beginners?
A: The intuitive touchscreen, auto settings, and clear menu system make it user-friendly even for less experienced users.

Resources

Documents:

• FLIR T5xx Series Datasheet
• FLIR T5xx Series Brochure
