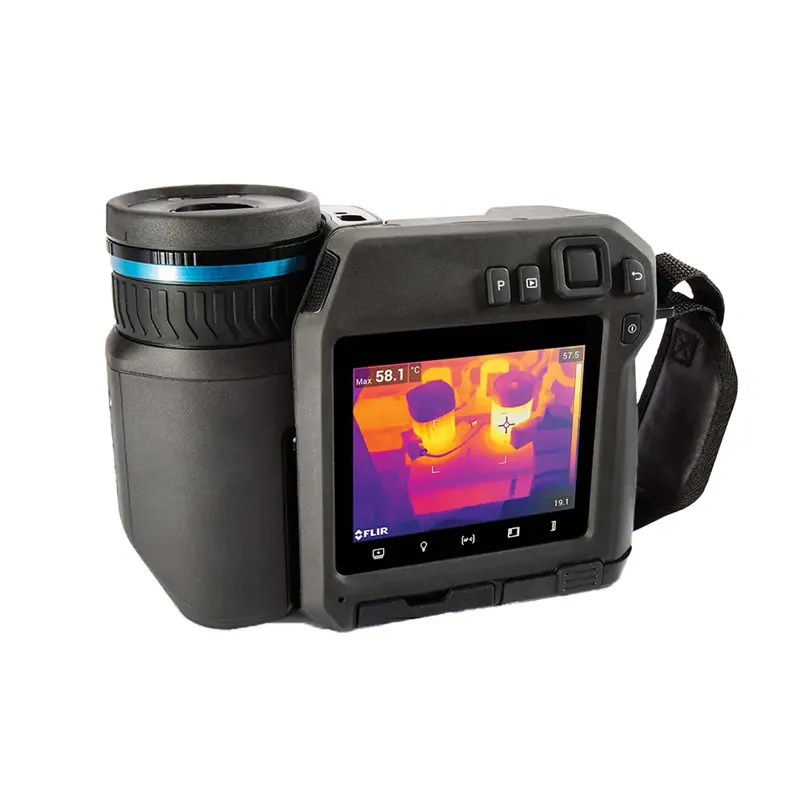

The Teledyne FLIR T540-42 Thermal Imaging Camera is built to empower thermography professionals with superior image clarity, ergonomic flexibility, and advanced measurement capabilities. Designed for use in demanding fields like electrical inspection, industrial maintenance, and manufacturing diagnostics, it pairs a high-resolution 464 x 348 thermal sensor with a wide 42° lens for broader field coverage. The 180° rotating optical block ensures effortless access to hard-to-reach areas while maintaining a comfortable working posture.
With MSX (Multi-Spectral Dynamic Imaging) technology, users gain enhanced detail by overlaying visual edges onto thermal imagery, helping to identify labels and features without switching views. UltraMax technology boosts image resolution by combining data from multiple frames to improve clarity and precision—ideal for detecting minor anomalies. The intuitive interface includes a vibrant 4" scratch-resistant LCD, laser-assisted autofocus, laser distance measurement, and customizable folders, ensuring seamless operation in the field.

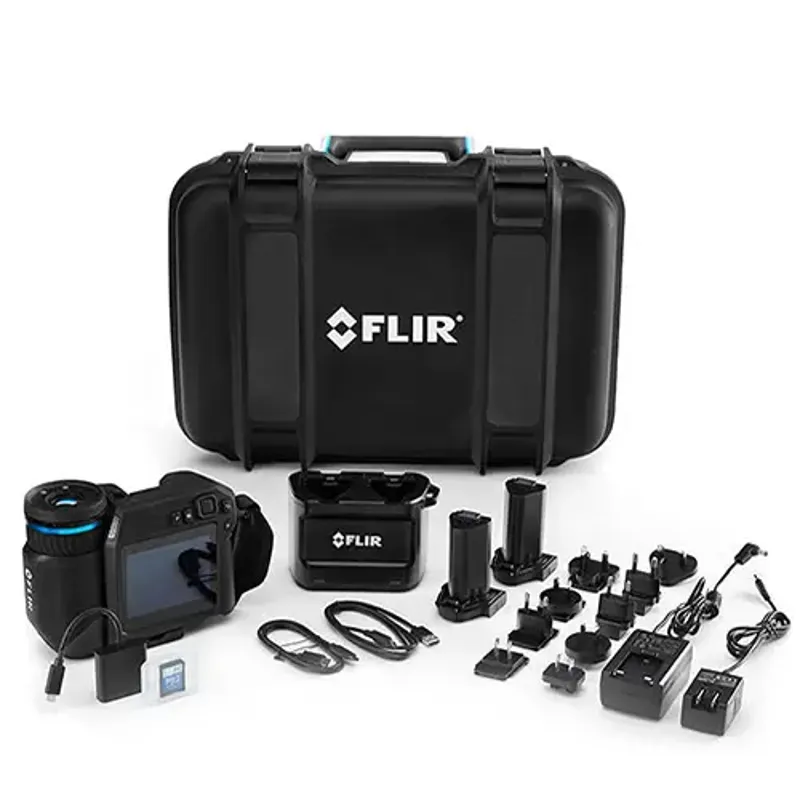

What's Included:
- Teledyne FLIR T540-42 Thermal Imaging Camera
- 42° AutoCal Interchangeable Lens
- Battery
- Battery Charger
- Carrying Case
- USB Cable
- Wrist Strap
- Software Download Card
Features
High-Resolution Sensor
464 x 348 thermal resolution delivers 161,472 temperature measurement points with high accuracy.
42° Wide-Angle Lens
Covers more area in a single view, ideal for inspecting large surfaces or equipment arrays.

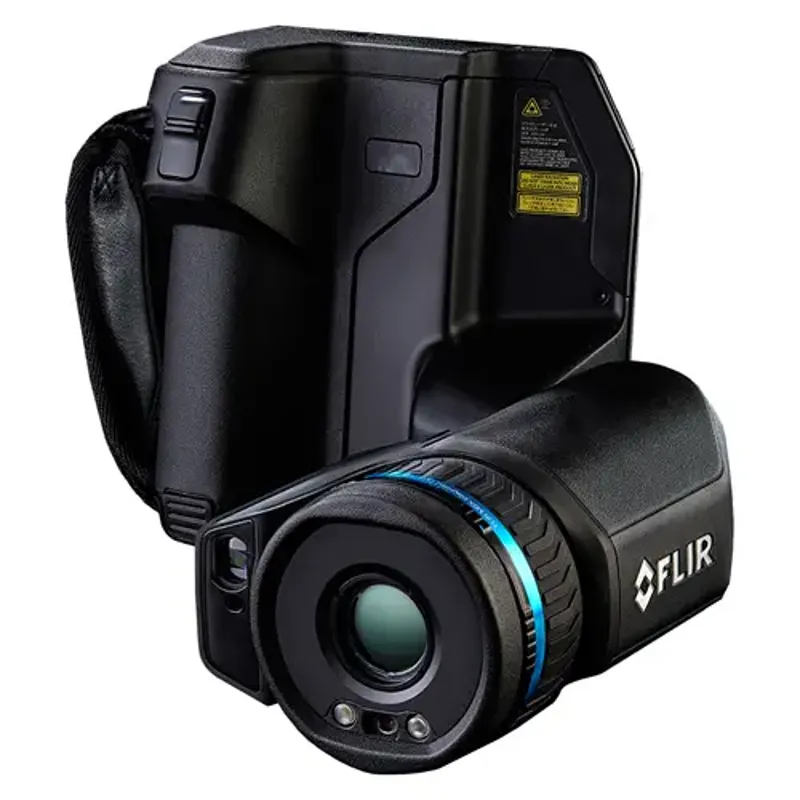

Rotating Optical Block
180° rotation enables ergonomic inspection of overhead and hard-to-reach targets.
FLIR Vision Processing
Combines MSX, UltraMax, and adaptive filtering to deliver sharp, noise-reduced images.
UltraMax Technology
Enhances image resolution and accuracy through multi-frame superresolution processing.
Laser-Assisted Autofocus
Ensures precision targeting and crisp image capture every time.

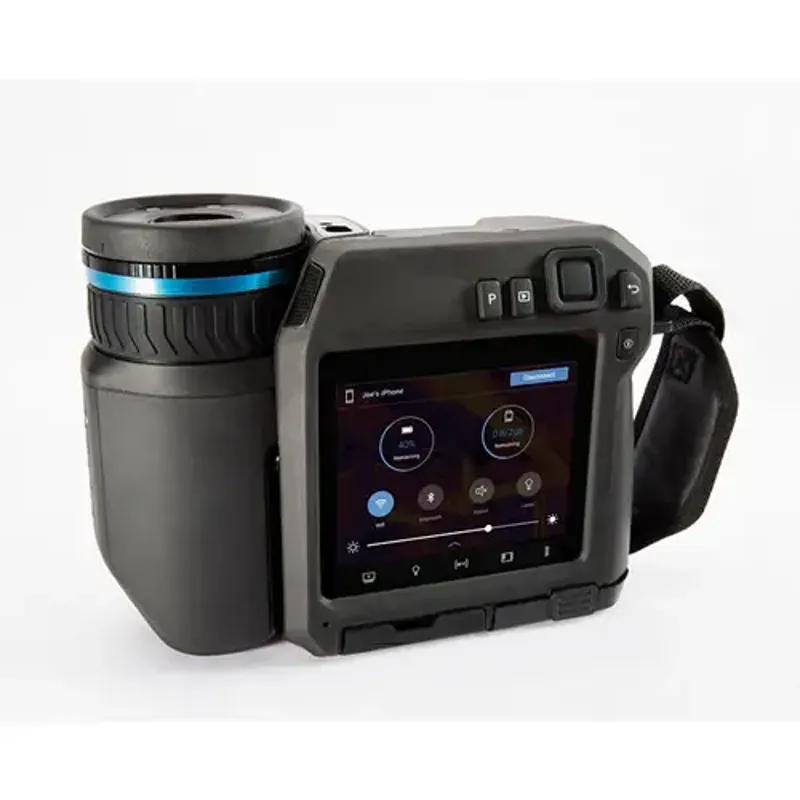

Intuitive Interface
4" touchscreen, two programmable buttons, and rapid menu access simplify operation.
On-Screen Laser Distance Measurement
Instantly identifies the accessibility of components for repair or inspection.
Comprehensive Documentation Tools
Features include GPS tagging, voice and text annotations, image sketching, and METERLiNK data integration.
What's Included
Included with Your Purchase:
- Teledyne FLIR T540-42 Thermal Imaging Camera
- 42° AutoCal Interchangeable Lens
- Battery
- Battery Charger
- Carrying Case
- USB Cable
- Wrist Strap
- Software Download Card
Specifications
- Thermal Resolution: 464 x 348 pixels
- Lens Field of View: 42°
- Temperature Range: -4°F to 2732°F
- Zoom: 1x to 6x continuous
- Display: 4" scratch-resistant LCD
- Focus: Laser-assisted autofocus
- Imaging Features: MSX, UltraMax, adaptive filtering
- Measurement Tools: Laser distance, on-screen area measurement
- Ergonomics: 180° rotating optical block
- User Interface: Touchscreen with customizable folders and two programmable buttons
- Documentation Support: GPS location tagging, METERLiNK integration, voice/text/image annotations
- Frequency: 30 Hz
- Condition: New
FAQ
Q: What makes the FLIR T540-42 ideal for industrial inspections?
A: Its wide-angle lens, high resolution, and rotating optical block allow users to capture detailed thermal data in tight or hard-to-access locations.
Q: How does UltraMax improve thermal images?
A: UltraMax captures multiple frames and combines them to increase resolution and reduce noise, resulting in more accurate and clearer thermal analysis.
Q: Can I share lenses between FLIR cameras?
A: Yes, the AutoCal lenses are interchangeable across FLIR T5xx and compatible models.
Q: Is the camera interface beginner-friendly?
A: Yes, it features an intuitive touchscreen, quick-access buttons, and customizable folders to streamline inspections and reporting.
