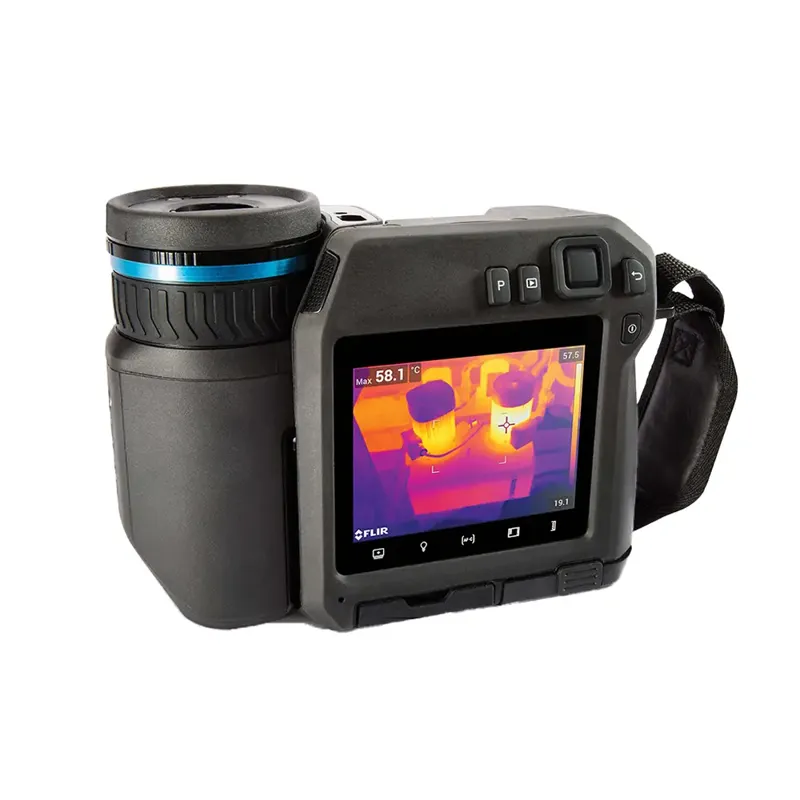

The Teledyne FLIR T540-24-14 Thermal Imaging Camera is designed for professionals in power generation, electrical distribution, and manufacturing who demand high performance and precision. With its 464 x 348 thermal resolution and interchangeable 24° and 14° lenses, the T540-24-14 captures detailed images across a broad temperature range of -4 to 2732°F. The innovative 180° rotating optical block allows for comfortable inspections in hard-to-reach areas without compromising image quality.
MSX (Multi-Spectral Dynamic Imaging) Technology enhances thermal images with visible light details, improving clarity for quick and accurate diagnostics. The UltraMax feature captures multiple frames in a second to create a super-resolved thermal image with quadrupled pixel data for enhanced analysis of small targets. Combined with a laser-assisted autofocus system and on-screen laser distance measurement, the T540 ensures every image is crisp and accurate.

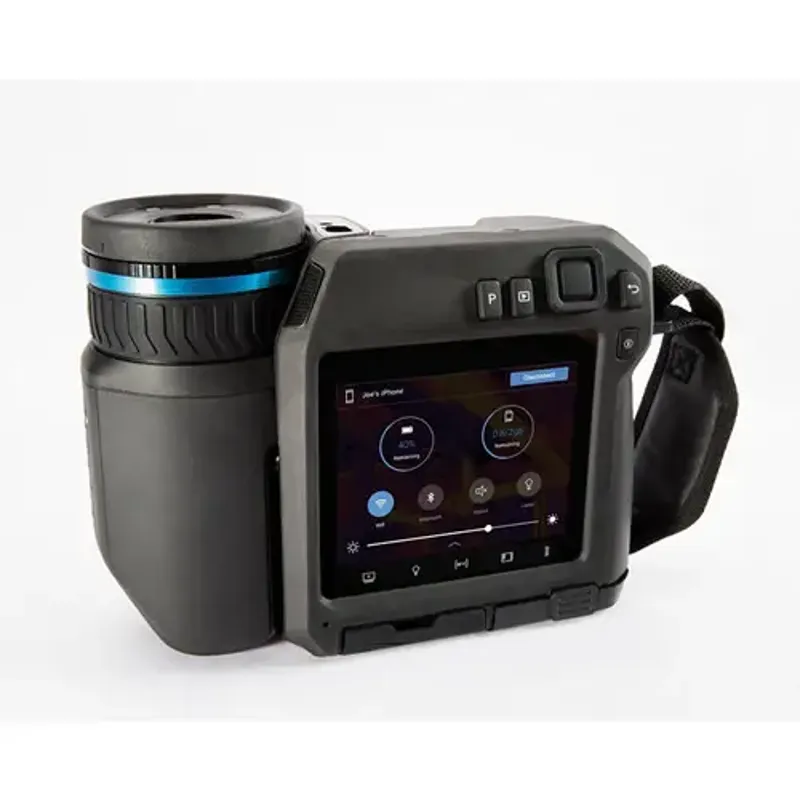

Its rugged 4-inch LCD display is scratch-resistant, and intuitive controls—including a rapid-response touchscreen and programmable buttons—make navigating settings and capturing data seamless. With streamlined reporting tools like voice annotation, auto-filled text comments, and image sketching, this camera supports an efficient workflow from inspection to documentation.

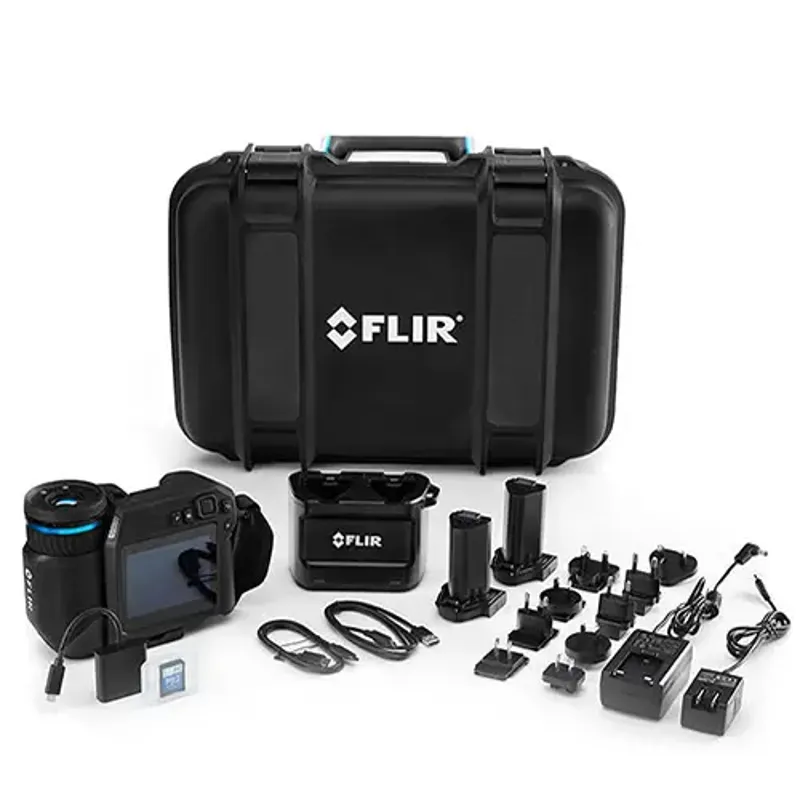

What's Included:
- Teledyne FLIR T540 Thermal Imaging Camera
- 24° and 14° AutoCal lenses
- Laser-assisted autofocus system
- 4 in. scratch-resistant LCD touchscreen
- Battery and charger (T5xx series compatible)
- USB 2.0A to USB Type-C communication cable
- FLIR Thermal Studio software license (2 users)
Features
Interchangeable 24° and 14° Lenses
Deliver 464 x 348 resolution with flexibility for wide-angle or telephoto thermal imaging needs.
High Temperature Range
Accurately measures from -4 to 2732°F for diverse industrial and electrical applications.
Laser-Assisted Autofocus
Ensures every thermal image is crisp and precise with minimal user adjustment.
UltraMax Image Enhancement
Combines multiple frames into one super-resolved thermal image with full radiometric data.
MSX Technology
Adds visible light details to thermal images for improved clarity and easier problem identification.
Rotating Optical Block
180° rotating lens head enables comfortable inspections in tight or awkward spaces.
4" LCD Touchscreen
Scratch-resistant display with intuitive interface and programmable buttons for quick access.
Comprehensive Measurement Capabilities
Features laser distance and on-screen area measurement tools for in-depth analysis.
Fleet Compatibility
AutoCal optics allow lens sharing across compatible FLIR thermal camera models.
Efficient Workflow Support
Includes built-in voice annotations, text notes with auto-fill, and image sketching for streamlined reporting.
What's Included
Included with Your Purchase:
- Teledyne FLIR T540 Thermal Imaging Camera
- 24° and 14° AutoCal lenses
- Laser-assisted autofocus system
- 4 in. scratch-resistant LCD touchscreen
- Battery and charger (T5xx series compatible)
- USB 2.0A to USB Type-C communication cable
- FLIR Thermal Studio software license (2 users)
Specifications
- Thermal Resolution: 464 x 348 pixels
- Lenses: 24° and 14° AutoCal lenses
- Temperature Range: -4 to 2732°F
- Zoom: 1x to 6x continuous zoom
- Display: 4 in. LCD touchscreen (scratch-resistant)
- Autofocus: Laser-assisted
- Image Enhancement: MSX and UltraMax
- Optical Block: 180° rotating
- Measurement Points: 161,472 temperature points
- Measurement Tools: Laser distance and area measurement
- Reporting: Voice annotation, text comments, image sketching
- Connectivity: USB 2.0A to USB-C, METERLiNK enabled
FAQ
Q: Can I use the same lenses on other FLIR cameras?
A: Yes, the AutoCal lenses are compatible across the FLIR camera fleet.
Q: What is MSX and how does it help?
A: MSX overlays visual details onto thermal images for clearer diagnostics without switching views.
Q: What does UltraMax do?
A: UltraMax enhances resolution by combining 16 images into one high-detail thermal image with full radiometric data.
Q: Is this camera suitable for high-temperature environments?
A: Yes, it measures temperatures up to 2732°F, ideal for industrial and electrical inspections.
Q: How do I document my inspections?
A: You can add voice notes, text, GPS data, and sketches directly onto images for organized reporting.
