The Teledyne FLIR T540-14 Thermal Imaging Camera is a professional-grade solution tailored for advanced thermographers and IR consultants working in power generation, electrical distribution, and manufacturing. Featuring a 14° lens and a 464 x 348 resolution sensor, this camera captures up to 161,472 temperature measurement points non-contact, delivering the clarity and precision needed for demanding inspections.
Its ergonomic 180° rotating optical block makes it easy to capture images from any angle, while the laser-assisted autofocus and FLIR Vision Processing technologies (MSX, UltraMax, adaptive filtering) ensure detailed, reliable thermal imaging. The scratch-resistant 4-inch LCD touchscreen, intuitive interface, and customizable reporting features—including GPS tagging and METERLiNK data integration—enhance productivity and workflow. Whether inspecting overhead components or scanning large, obstructed areas, the T540-14 is built for speed, accuracy, and ease of use.

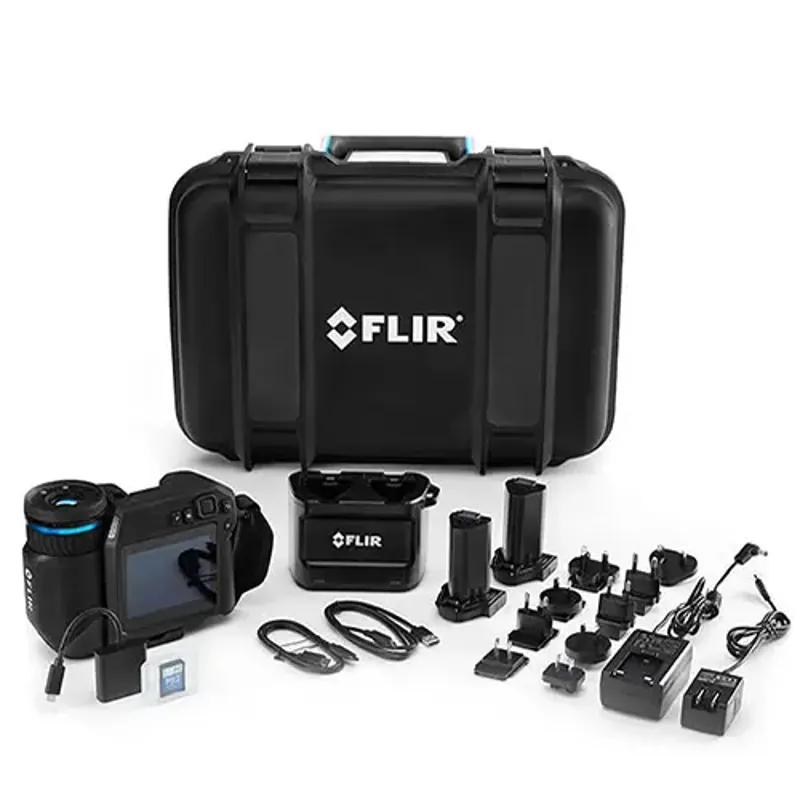

What's Included:
- FLIR T540-14 Thermal Imaging Camera with 14° lens
- Carrying case
- Battery
- Battery charger
- Power supply
- USB cable
- Calibration certificate
- User manual
- Software access (via QR/license)
Features
High-Resolution Thermal Imaging
Equipped with a 464 x 348 thermal sensor and a 14° lens to detect fine temperature differences at long range.
Extreme Temperature Range
Measures temperatures from -4 to 2732°F, supporting both industrial and high-heat applications.
FLIR Vision Processing
Combines MSX, UltraMax, and adaptive filtering to produce sharper images with less noise.

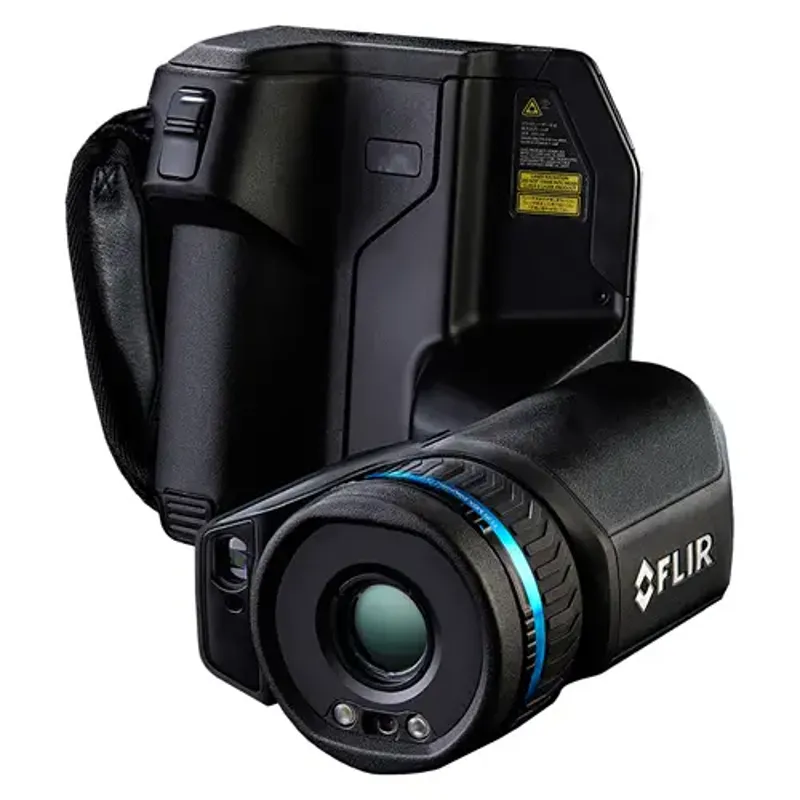

Laser-Assisted Autofocus
Ensures accurate focus for every image, enhancing thermal clarity and measurement precision.

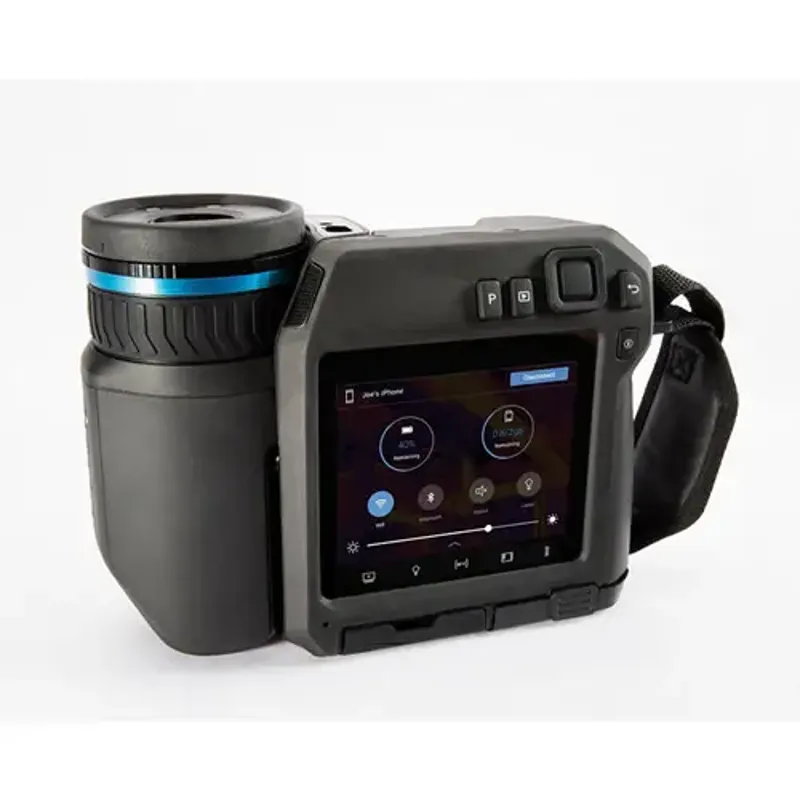

180° Rotating Optical Block
Enables users to capture images of hard-to-reach areas with ease and without physical strain.
Flexible Lens Compatibility
AutoCal optics allow you to share lenses across multiple FLIR cameras, expanding versatility.
Advanced Measurement Tools
Includes laser distance measurement and on-screen area calculation to evaluate components effectively.

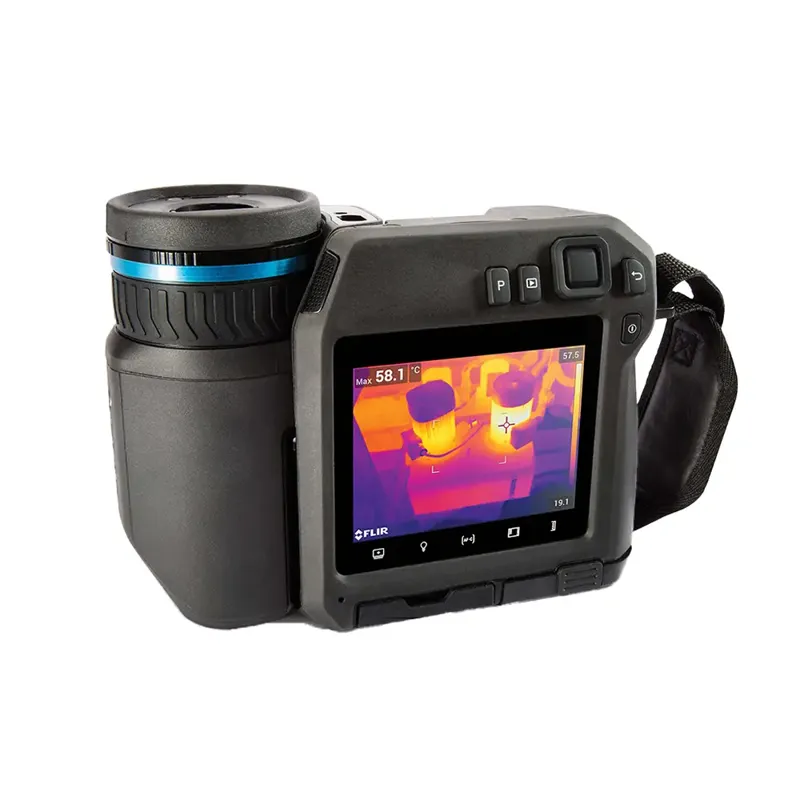

4-inch Touchscreen Display
Scratch-resistant LCD makes it easy to view, analyze, and navigate thermal images in the field.
Streamlined Reporting
Voice annotation, text input, image sketching, and GPS data enable comprehensive documentation.
Intelligent Controls
Two customizable buttons and rapid-response interface simplify operation and setup during inspections.
What's Included
Included with Your Purchase:
- FLIR T540-14 Thermal Imaging Camera with 14° lens
- Carrying case
- Battery
- Battery charger
- Power supply
- USB cable
- Calibration certificate
- User manual
- Software access (via QR/license)
Specifications
- Thermal Resolution: 464 x 348 pixels
- Lens Field of View: 14°
- Temperature Measurement Range: -4 to 2732°F
- Zoom: 1 – 6x continuous
- Display: 4-inch touchscreen LCD
- Autofocus: Laser-assisted
- Technologies: MSX, UltraMax, adaptive filtering
- Laser Distance Measurement: Yes
- Image Enhancement: FLIR Vision Processing
- Data Storage: Radiometric JPGs with UltraMax enhancement
- Connectivity: USB, METERLiNK
- GPS Tagging: Embedded GPS
- Optical Block: 180° rotating
FAQ
Q: What is UltraMax and how does it improve image quality?
A: UltraMax captures 16 offset thermal images in under a second and merges them to create a higher-resolution image with better detail and reduced noise.
Q: Can I use other FLIR lenses with the T540?
A: Yes, the T540 supports AutoCal lenses that are interchangeable across compatible FLIR cameras.
Q: What makes MSX technology beneficial?
A: MSX overlays edge detail from visible light images onto thermal images, making it easier to identify components and read labels directly in the IR image.
Q: Is the display suitable for field use?
A: Yes, the 4-inch LCD is scratch-resistant and readable in various lighting conditions, ideal for outdoor or industrial environments.
Q: How does the camera help with inspection documentation?
A: It offers voice notes, text annotations, image sketching, and embedded GPS to simplify and streamline reporting.
Resources
Documents:
- FLIR T5xx Series Datasheet
- FLIR T5xx Series Brochure
