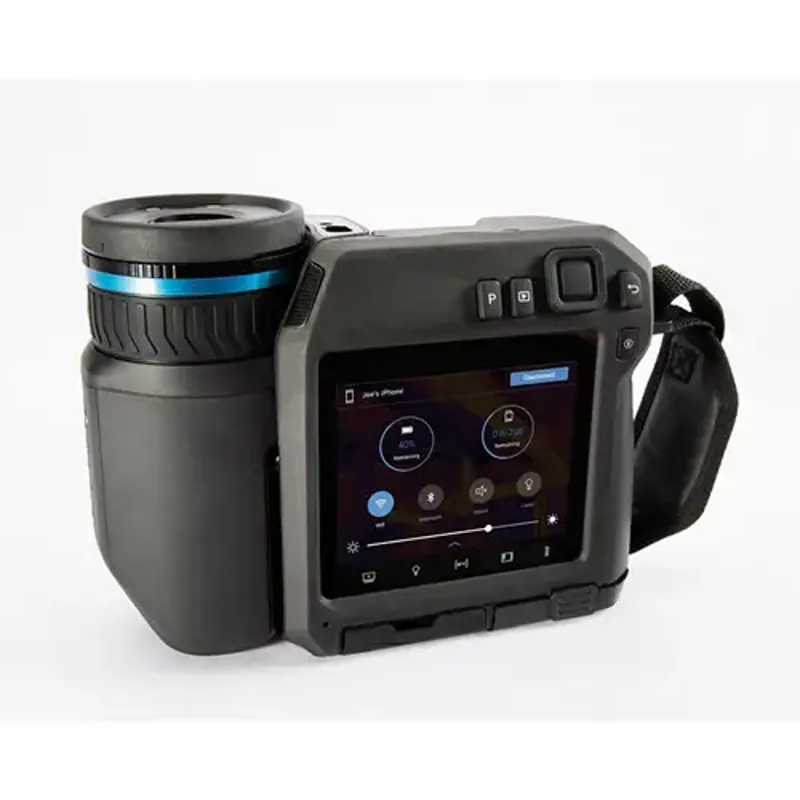

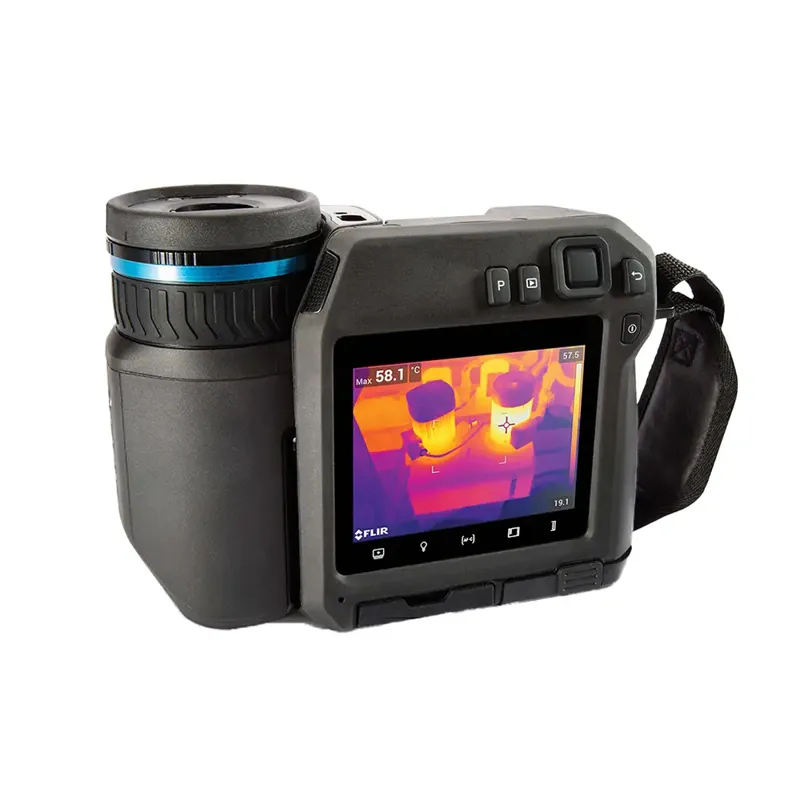

The Teledyne FLIR T540-24-42 Thermal Imaging Camera is purpose-built for seasoned thermographers and IR service consultants working in the power generation, electrical distribution, and industrial manufacturing sectors. Equipped with both 24° and 42° lenses and a 464 x 348 resolution detector, this camera delivers detailed, radiometric images in challenging and obstructed environments.
Its 180° rotating optical block provides unparalleled flexibility, enabling professionals to inspect hard-to-reach targets with ease. MSX technology overlays key visual details onto thermal images for improved clarity, while UltraMax enhances resolution by synthesizing multiple image captures. These features allow the T540 to reveal intricate anomalies with precision and streamline analysis for optimal decision-making in the field.
Laser-assisted autofocus ensures precise temperature measurements, and a rugged 4-inch scratch-resistant LCD makes data interpretation effortless, even in tough conditions. Integrated tools like laser distance measurement, voice annotation, GPS tagging, and seamless reporting options make it an indispensable asset for comprehensive thermal diagnostics.

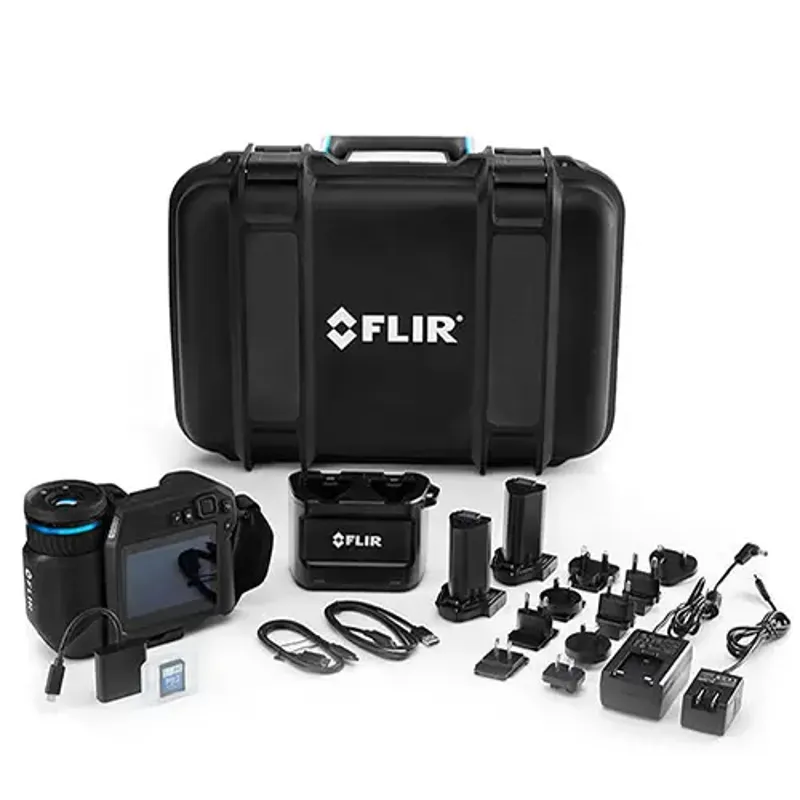

What's Included:
- Teledyne FLIR T540 Thermal Imaging Camera
- 24° and 42° AutoCal lenses
- Battery pack
- Battery charger
- USB 2.0A-to-Type-C cable
- Carrying case
- FLIR software license (optional)
Features
Dual Field-of-View Lenses
Switch between 24° and 42° lenses for versatile imaging in wide-angle or focused telephoto applications.
High Temperature Range
Capture accurate measurements from -4 to 2732°F, ideal for high-temperature industrial environments.

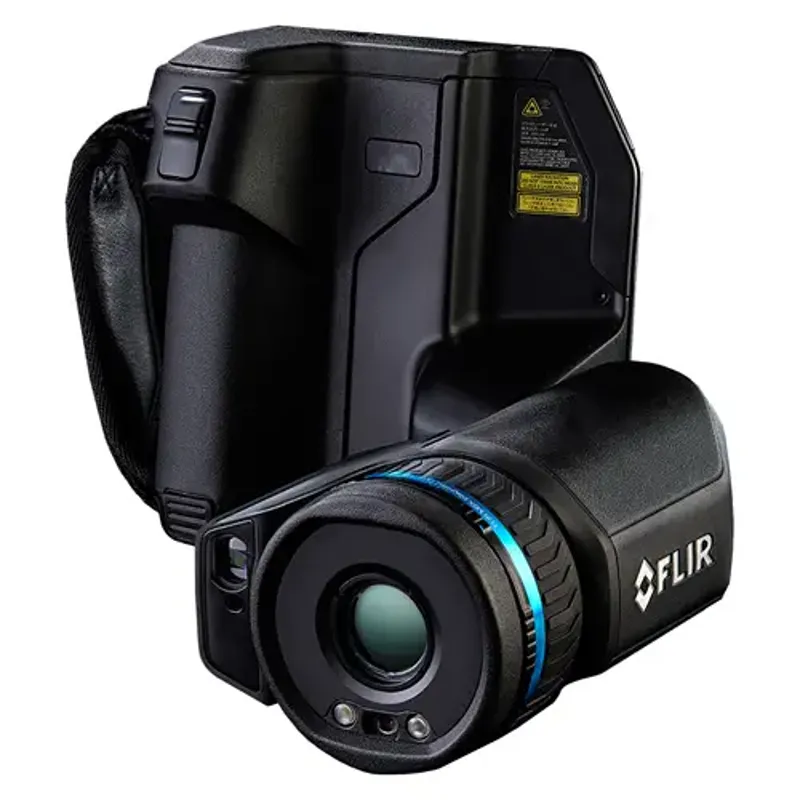

Rotating Optical Block
180° rotating lens unit makes it easy to image overhead, under equipment, or around obstructions.
FLIR Vision Processing
Combines MSX, UltraMax, and adaptive filtering to produce sharp, detailed thermal images.
Laser-Assisted Autofocus
Ensures pin-sharp thermal imagery and accurate temperature readings across all scenes.
Rapid Zoom Capability
1 to 6x continuous zoom enables quick scanning of large areas without losing resolution.
Intuitive User Interface
4-inch touchscreen, quick-access menus, and programmable buttons simplify control and navigation.
Laser Distance Measurement
Activate one-touch distance measurement and on-screen area estimation for precise diagnostics.
Robust Documentation Tools
Built-in voice notes, text comments, and image sketches streamline post-inspection reporting.
METERLiNK Integration
Automatically embed readings from compatible FLIR clamps and multimeters into your images.
What's Included
Included with Your Purchase:
- Teledyne FLIR T540 Thermal Imaging Camera
- 24° and 42° AutoCal lenses
- Battery pack
- Battery charger
- USB 2.0A-to-Type-C cable
- Carrying case
- FLIR software license (optional)
Specifications
- Infrared Resolution: 464 x 348
- Lenses: 24° and 42° field of view (interchangeable)
- Temperature Range: -4 to 2732°F
- Frame Rate: 30 Hz
- Zoom: 1 to 6x continuous
- Display: 4-inch scratch-resistant LCD
- Image Enhancement: MSX, UltraMax, Vision Processing
- Autofocus: Laser-assisted
- Measurement Points: 161,472 non-contact points
- Interface: Touchscreen with two programmable buttons
- Connectivity: USB-C, GPS, METERLiNK
- Data Storage: Supports voice, text, and sketch annotations
FAQ
Q: Can I use both 24° and 42° lenses with this model?
A: Yes, both lenses are included and interchangeable using AutoCal calibration.
Q: What is UltraMax and how does it improve images?
A: UltraMax captures multiple thermal images and combines them to create one high-resolution image with enhanced clarity and reduced noise.
Q: Does the T540 support voice annotation?
A: Yes, you can record voice notes directly onto your images for easy reporting.
Q: Can the camera measure distance?
A: Yes, it features laser distance measurement and displays this directly on screen.
