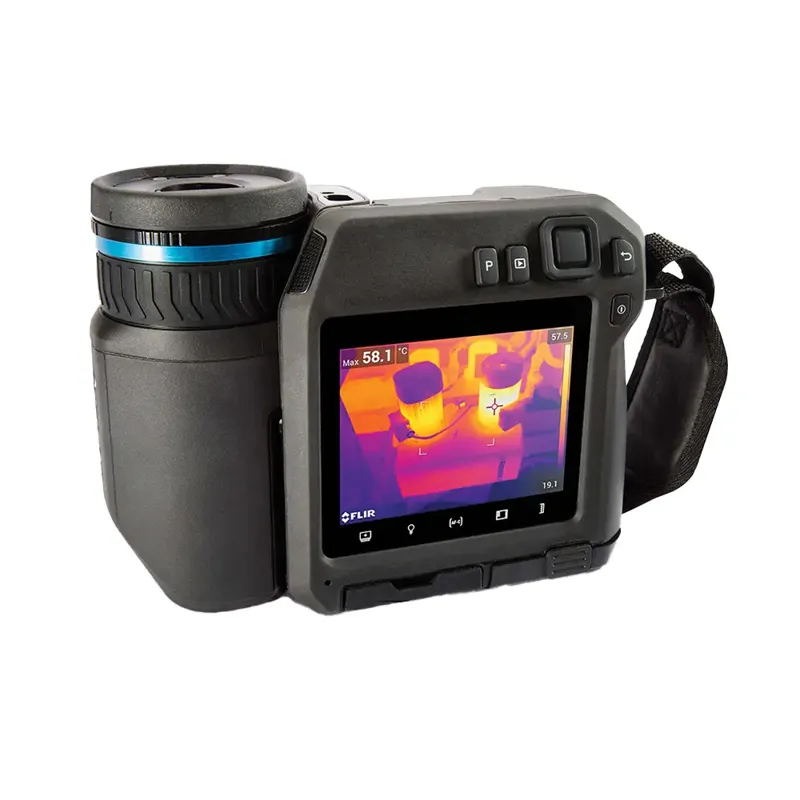

The Teledyne FLIR T560-42-14 Professional Thermal Imaging Camera delivers exceptional clarity, precision, and efficiency for industrial thermal inspections. Designed with a high-resolution 640 x 480 IR detector, this advanced camera helps professionals accurately locate hot spots, confirm repairs, and diagnose critical faults in power, electrical, and mechanical systems. The 180° rotating lens and a bright 4-inch LCD screen make it easy to work in hard-to-reach or awkward areas, all while maintaining ergonomic comfort.
Key features like MSX® (Multi-Spectral Dynamic Imaging), UltraMax® image enhancement, and FLIR’s Vision Processing™ technology ensure industry-leading detail and thermal insight. Laser-assisted autofocus, 1-Touch Level/Span, and laser distance measurement offer precise targeting and improved measurement accuracy. With integrated GPS, METERLiNK® compatibility, and support for FLIR Thermal Studio Pro software, users can streamline data organization, automate surveys, and manage historical records with ease.
What's Included:
- Teledyne FLIR T560 Camera with 42°/14° lens
- Li-ion Rechargeable Battery
- Battery Charger
- Removable SD Card
- USB Type-C Cable
- Hard Carrying Case
- FLIR Thermal Studio Pro Software License
Features
Industry-Leading Imaging Clarity

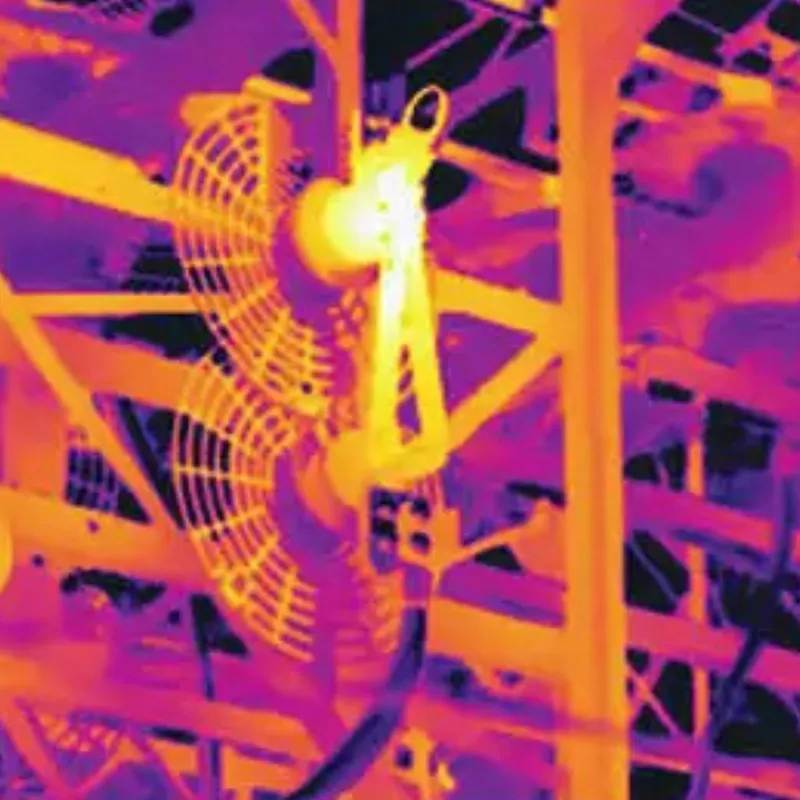

FLIR Vision Processing™ combines MSX®, UltraMax®, and adaptive filtering for detailed thermal images and improved diagnostics.
Dual Lens Flexibility
Comes with both 42° wide and 14° telephoto lenses for broad-area scanning or focused inspections, with automatic lens detection and AutoCal™ compatibility.
Laser Distance Measurement
Capture precise distance measurements and determine component accessibility directly from the camera's display.
Rotating Optical Block
180° rotating lens assembly reduces strain during overhead or low-position inspections.
Ergonomic Design

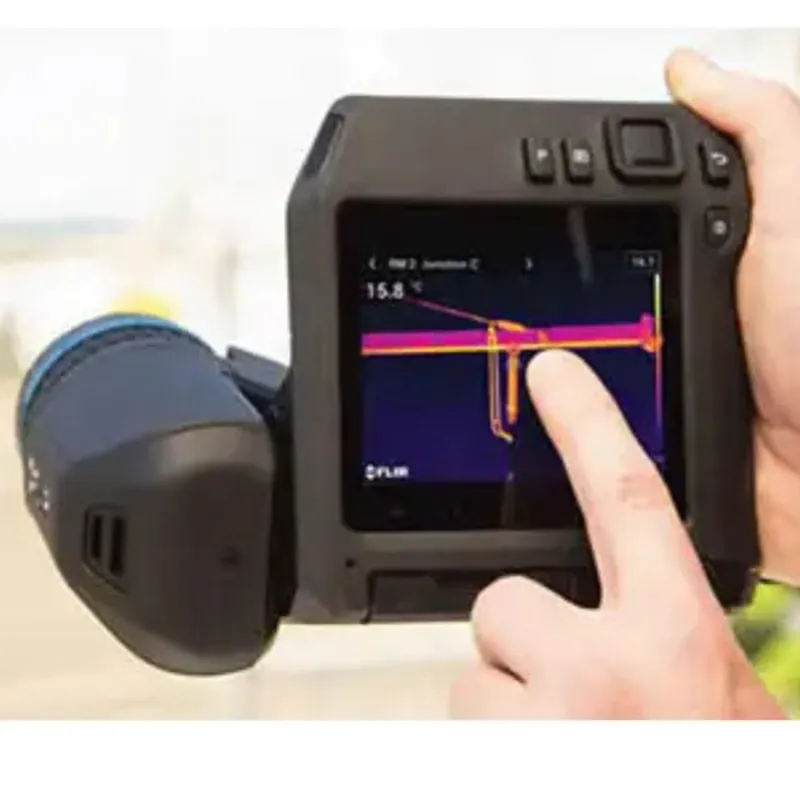

4-inch LCD touchscreen with 33% brighter output and 4x the resolution of comparable cameras ensures comfort and usability in all conditions.
Enhanced Autofocus and Spot Measurement
Laser-assisted autofocus and 1-Touch Level/Span simplify focusing and temperature range optimization.
Efficient Field Documentation
Organize findings with built-in GPS, voice/text annotation, thermal image sketching, and on-screen measurement tools.
Software Integration
Streamline workflow by downloading routes via FLIR Thermal Studio Pro and uploading measurements using METERLiNK® tools.
Intuitive Controls
Includes touchscreen, programmable buttons, and dedicated quick-access menus for a seamless user experience.
Flexible Video and Storage Options
Supports radiometric and non-radiometric video recording and streaming, with JPEG capture and time-lapse infrared imaging.
What's Included
Included with Your Purchase:
- Teledyne FLIR T560 Camera with 42°/14° lens
- Li-ion Rechargeable Battery
- Battery Charger
- Removable SD Card
- USB Type-C Cable
- Hard Carrying Case
- FLIR Thermal Studio Pro Software License
Specifications
- IR Resolution: 640 x 480 (307,200 pixels)
- UltraMax Resolution: 1.2 MP
- Detector Pitch: 12 μm
- Thermal Sensitivity (NETD): <30 mK @ 30°C (42° lens)
- Spectral Range: 7.5 - 14.0 μm
- Detector Type: Uncooled microbolometer
- Image Frequency: 30 Hz
- Focus Options: Continuous, one-shot LDM/contrast/manual
- Minimum Focus Distance: 0.15 m (42° lens); 1 m (14° lens)
- Digital Zoom: 1-8x continuous
- Temperature Ranges: -4°F to 248°F; 32°F to 1202°F; 572°F to 2732°F
- Accuracy: ±2°C or ±2% of reading
- Spotmeters: 3 in live mode
- Measurement Presets: Center spot, hot spot, cold spot, user presets
- Laser Distance Meter: Yes, with dedicated button
- On-screen Measurement: Area analysis supported
- Annotations: GPS, text, voice, sketch, inspection routing
- Storage Media: Removable SD card
- Image Format: JPEG with embedded data
- Time-lapse IR: 10 secs to 24 hrs
- Video Recording: Radiometric (.csq), Non-radiometric (H.264)
- Streaming: H.264/MPEG-4/MJPEG over Wi-Fi or USB
- Video Output: DisplayPort via USB-C
- Laser Pointer: Class 2 with image overlay
- Battery Type: Li-ion, rechargeable in-camera or via charger
- Battery Life: Over 4 hours typical use at 25°C
- Operating Temperature: 5°F to 122°F (-15°C to 50°C)
- Durability: 25 g shock / 2 g vibration / IP54 rated
FAQ
Q: What is the resolution of the T560 camera?
A: The camera offers 640 x 480 IR resolution and up to 1.2 MP resolution with UltraMax technology.
Q: How long does the battery last?
A: The rechargeable battery provides over 4 hours of typical operation at 25°C.
Q: Can I switch lenses on this camera?
A: Yes, it supports AutoCal™ lenses and automatically recognizes the attached lens.
Q: What are the available temperature measurement ranges?
A: It measures from -4°F up to 2732°F across three selectable ranges.
Q: Does it include GPS tagging for images?
A: Yes, location data is automatically added to every still image and the first frame in video.
Resources
Documents:
- Teledyne FLIR T560 Datasheet
