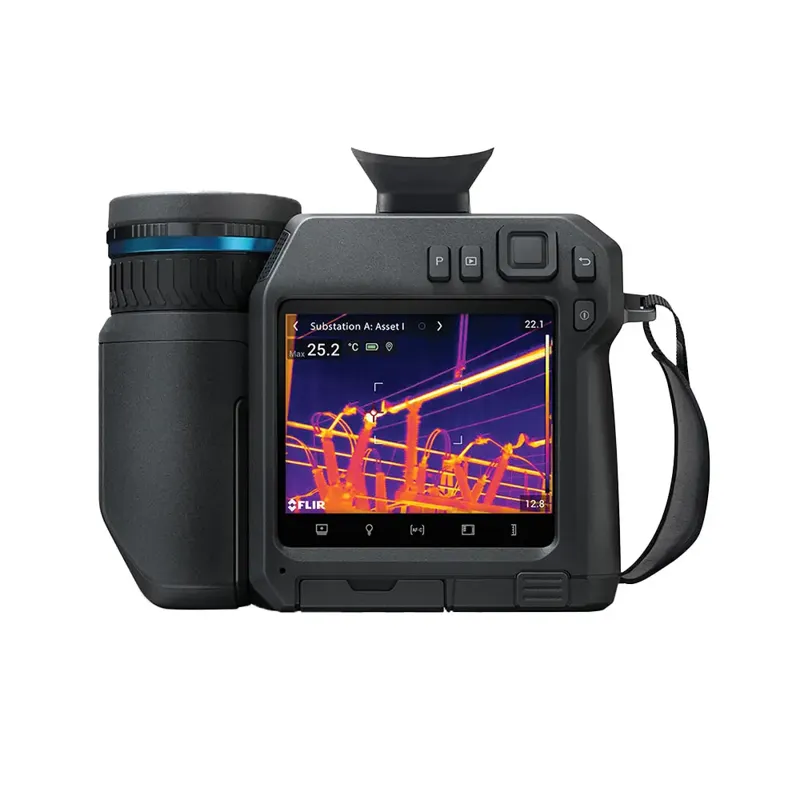

The Teledyne FLIR T840-24-14 High-Performance Thermal Camera is engineered to assist electric utility and thermography professionals in detecting signs of equipment failure both indoors and outdoors, even under the harshest lighting conditions. Featuring a built-in eyepiece viewfinder and a vibrant 4-inch LCD display, the T840 allows effortless operation during outdoor inspections in bright environments.
The camera’s ergonomic 180° rotating lens platform simplifies diagnostics in difficult-to-access areas, while the MSX and UltraMax technologies enhance image clarity by integrating visual and thermal details and quadrupling thermal resolution. Precision-focused performance is delivered through tools like 1-Touch Level/Span and laser-assisted autofocus, ensuring accurate temperature readings with each capture. Combined with rapid reporting tools and FLIR Thermal Studio Pro software, this thermal camera provides a complete, high-productivity solution for predictive maintenance routines.
What's Included:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 464 x 348, 30 Hz
- 1 - 24° Lens
- 1 - 14° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Li-Ion Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supplies
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - 3-Month Subscription to FLIR Thermal Studio Pro and FLIR Route Creator
Features
Dual Lenses for Versatility
Includes both 14° and 24° lenses to adapt to a wide range of inspection scenarios.
All-Day Comfortable Operation
180° rotating optical block reduces user fatigue during extended surveys.
Exceptional Image Clarity
Powered by MSX, UltraMax, and adaptive filtering technologies to produce sharp, detailed images.
Precision Distance Measurement
Built-in laser distance measurement tool identifies repair accessibility with one button press.
Optimized for Bright Conditions
Scratch-resistant 4-inch LCD display ensures visibility in bright outdoor environments.
Integrated Eyepiece Viewfinder
Provides comfortable viewing and enhanced accuracy when inspecting from a distance.
AutoCal Optics
Lenses can be shared across multiple cameras in a fleet, streamlining operations.
Laser-Assisted Autofocus
Delivers sharp imagery and precise temperature readings consistently.
Efficient Field Reporting
Organize findings quickly using built-in rapid reporting tools.
Touchscreen Interface
Intuitive controls and responsive touchscreen streamline menu navigation.
Wi-Fi Streaming
Stream findings in real-time via Teledyne FLIR Tools app for customer collaboration.
Integrated GPS and METERLiNK Support
Capture geotagged images and incorporate external measurement data for detailed documentation.
High-Resolution Thermal Imaging
Offers a base IR resolution of 464 x 348 and UltraMax enhanced resolution up to 645,888 effective pixels.
Flexible Focus Range
Minimum focus distances vary by lens, enabling both macro and long-range imaging.
What's Included
Included with Your Purchase:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 464 x 348, 30 Hz
- 1 - 24° Lens
- 1 - 14° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Li-Ion Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supplies
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - 3-Month Subscription to FLIR Thermal Studio Pro and FLIR Route Creator
Specifications
- IR Resolution: 464 x 348 pixels
- UltraMax Resolution: 645,888 effective pixels
- Image Frequency: 30 Hz
- Temperature Range: -4 to 2732°F
- F-Number: f/1.1 (42° lens), f/1.3 (24° lens), f/1.5 (14° lens), f/1.35 (6° lens)
- Minimum Focus Distance: 0.15 m (42° and 24°), 1.0 m (14°), 5.0 m (6°)
- Display: 4-inch scratch-resistant LCD
- Lens System: AutoCal interchangeable optics
- Wireless Connectivity: Wi-Fi for live streaming
- Data Storage: 8 GB SD card included
FAQ
Q: What is the benefit of UltraMax technology?
A: UltraMax captures and processes multiple thermal images to enhance resolution, offering greater detail and improved measurement accuracy.
Q: Can I use lenses from other FLIR cameras with the T840?
A: Yes, the T840 uses AutoCal optics, allowing lens sharing across compatible FLIR cameras.
Q: How does the laser-assisted autofocus work?
A: It uses a built-in laser rangefinder to quickly and accurately focus on the target, ensuring sharp imagery and precise readings.
Q: Does this camera support real-time streaming?
A: Yes, it can stream thermal images in real time via Wi-Fi to the FLIR Tools app.
Q: What software is included with the camera?
A: The purchase includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator for enhanced data analysis and reporting.
Resources
Documents:
- FLIR T8xx Series Datasheet
