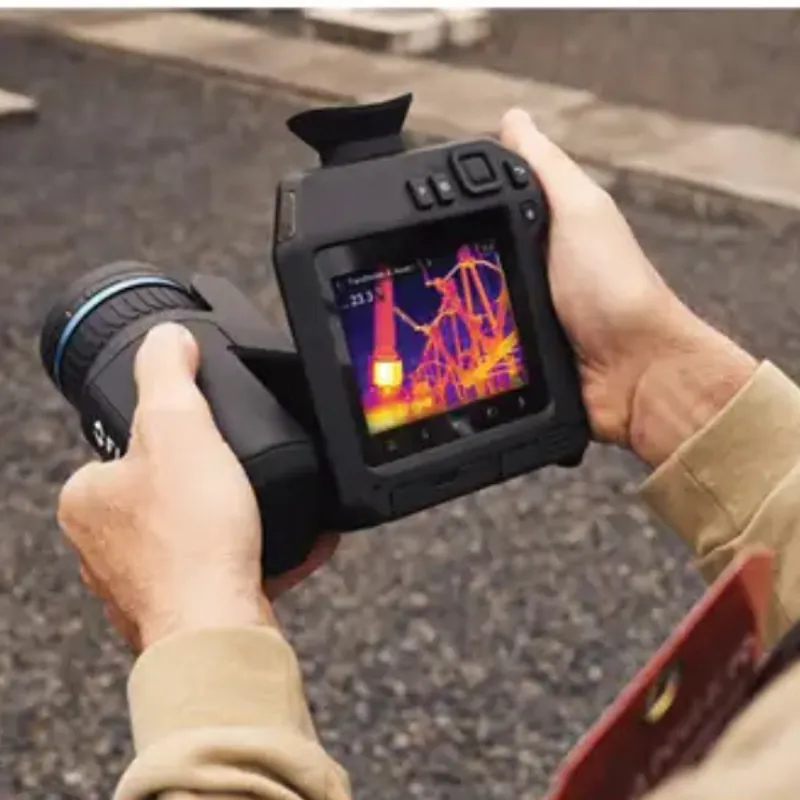

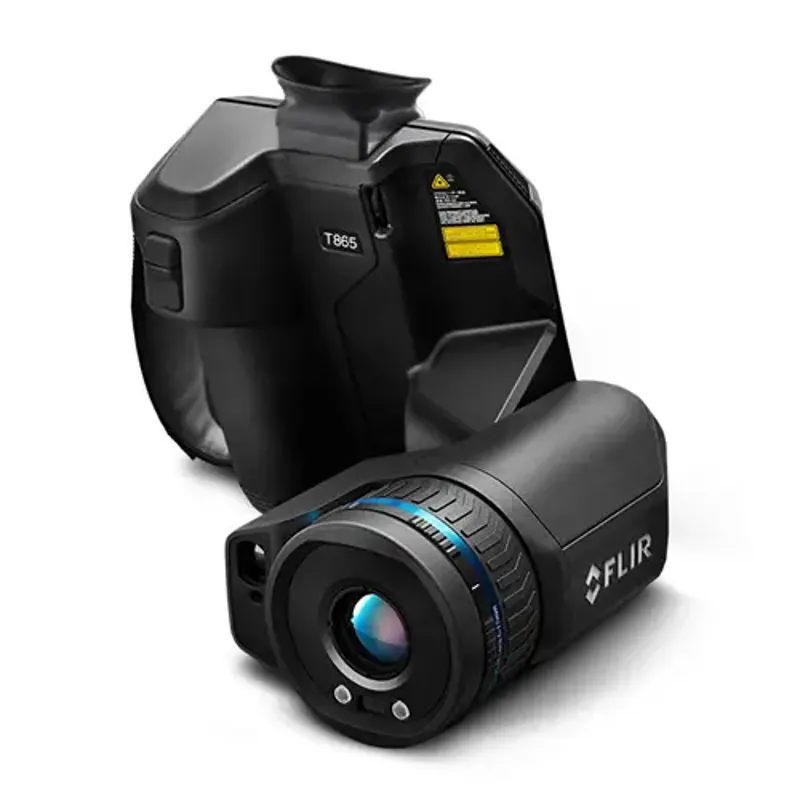

The Teledyne FLIR T865-14 High-Performance Thermal Camera offers professionals a highly accurate, safe, and comfortable way to inspect critical electrical and mechanical assets. Featuring a tilting optical block, integrated eyepiece viewfinder, and large 4-inch color LCD display, it’s engineered for flexibility in virtually any environment, including bright outdoor conditions. The camera's 640 x 480 thermal resolution, enhanced with MSX and UltraMax image technologies, delivers extraordinary clarity and accuracy.
Advanced features such as laser-assisted autofocus and 1-Touch Level/Span make it easier than ever to ensure measurement precision. Fully compatible with AutoCal interchangeable lenses, the T865 supports seamless adaptation for varying inspection requirements. Integration with Teledyne FLIR’s Thermal Studio Pro software enables automated reporting and data organization to streamline your workflow. The T865 is an essential tool for predictive maintenance programs, helping reduce downtime and operational costs.
What's Included:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 14° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyard
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - License Card for FLIR Thermal Studio Pro (3-Month Subscription) and FLIR Route Creator Plugin for Thermal Studio Pro
- 1 - User Manual
Features
Versatile 14° Lens
Delivers precise thermal imagery for mid-range inspection, ideal for electrical and mechanical systems.
Streamlined Route Planning
Create and upload inspection routes via FLIR Route Creator for consistent and efficient asset monitoring.
Enhanced Imaging with MSX and UltraMax
Combines visible and thermal details for sharp, detailed images that reduce diagnostic errors.
Intuitive User Interface

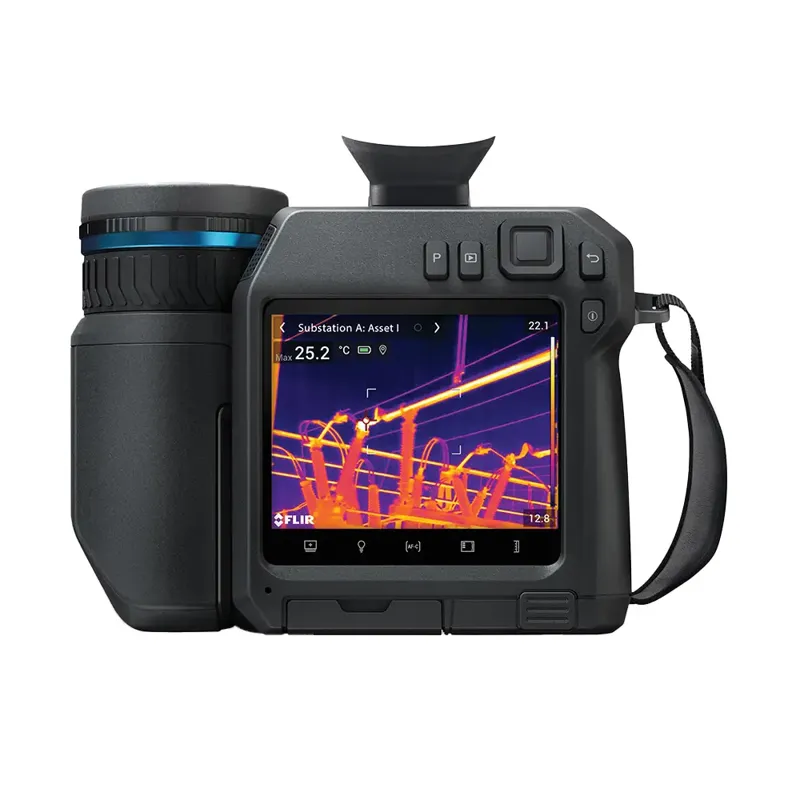

Large 4-inch LCD and integrated eyepiece viewfinder ensure readability in any lighting condition.
Flexible Ergonomics

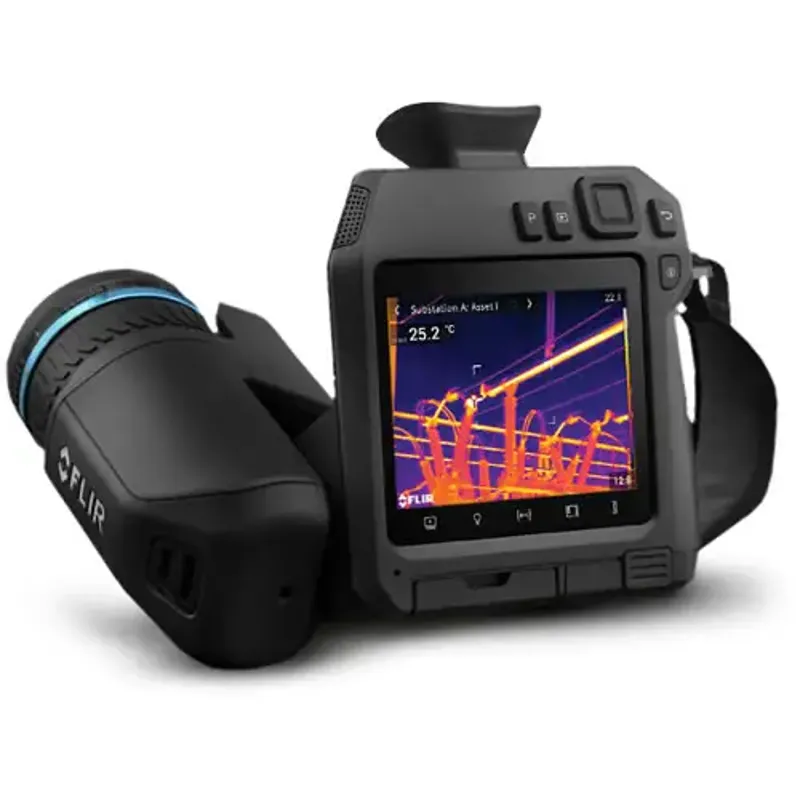

180° rotating optical block enables comfortable use in overhead or low-angle inspections.
Accurate Long-Range Measurement
Supports optional 6° telephoto lens for distant or wide-area targets with precision.
Laser-Assisted Autofocus

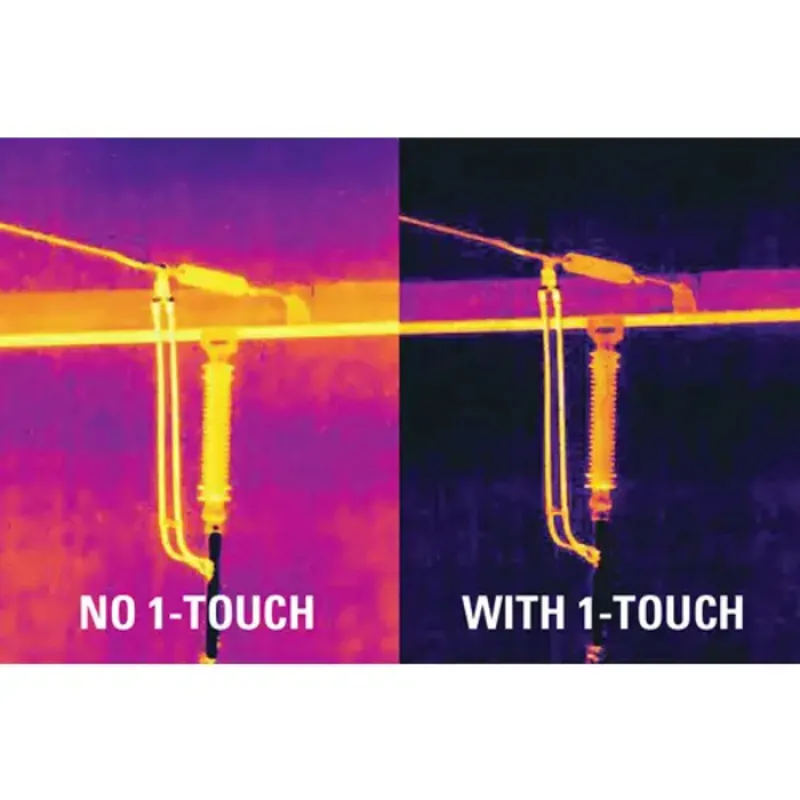

Ensures pinpoint focus and temperature accuracy with 1-Touch Level/Span feature.
Advanced Workflow Tools
Supports voice annotations, customizable folders, and Wi-Fi syncing for efficient reporting.
FLIR Vision Processing
Leverages MSX, UltraMax, and adaptive filtering for industry-leading thermal clarity.
Safe, Non-Contact Inspection
Evaluate high-voltage or hazardous equipment safely from a distance.
What's Included
Included with Your Purchase:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 14° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyard
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - License Card for FLIR Thermal Studio Pro (3-Month Subscription) and FLIR Route Creator Plugin for Thermal Studio Pro
- 1 - User Manual
Specifications
- IR Resolution: 640 x 480 (307,200 pixels / 1,228,800 with UltraMax)
- Detector Type: Uncooled microbolometer
- Detector Pitch: 12 μm
- Spectral Range: 7.5 to 14.0 μm
- Image Frequency: 30 Hz
- Lens: 14° with f/1.5 aperture
- Focus: Manual, laser-assisted, or contrast-based
- Minimum Focus Distance: 1.0 m (3.28 ft)
- Display: 4-inch LCD, 640 x 480 touchscreen with auto-rotation
- Digital Camera: 5 MP with LED photo/video lamp
- Zoom: 1–8x continuous
- Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Image Modes: Infrared, visual, MSX, Picture-in-picture
- Measurement Accuracy: ±1°C (±1.8°F) or ±1%, depending on temperature range
- Temperature Ranges: -40°C to 2000°C (-40°F to 3632°F) in multiple spans
- Laser Distance Meter: Yes
- Voice Annotation: 60-second recordings via mic or Bluetooth
- GPS: Automatic tagging
- Image Storage: Removable SD card, JPEG with embedded data
- Video: Radiometric (.csq), non-radiometric (H.264); streaming via UVC or Wi-Fi
- Battery: Li-ion, approx. 4 hours runtime
- Operating Temperature: -15°C to 50°C (5°F to 122°F)
- Shock/Vibration: 25 g / 2 g (IEC 60068-2 standards)
- Ingress Protection: IP54
FAQ
Q: What is the resolution of the T865’s thermal sensor?
A: The sensor captures 640 x 480 pixels and can be enhanced to 1,228,800 pixels using UltraMax.
Q: Can the camera be used in bright sunlight?
A: Yes, it includes a large LCD and integrated viewfinder for visibility in all lighting conditions.
Q: How accurate are the temperature measurements?
A: It offers precision up to ±1°C or ±1% depending on the measurement range.
Q: Is route planning possible with this model?
A: Yes, the T865 supports route creation and uploads via the Teledyne FLIR Route Creator software.
Q: What kind of annotations can be added?
A: Users can add voice recordings, text notes, image sketches, and GPS tagging.
Resources
Documents:
- FLIR T8xx Series Datasheet
