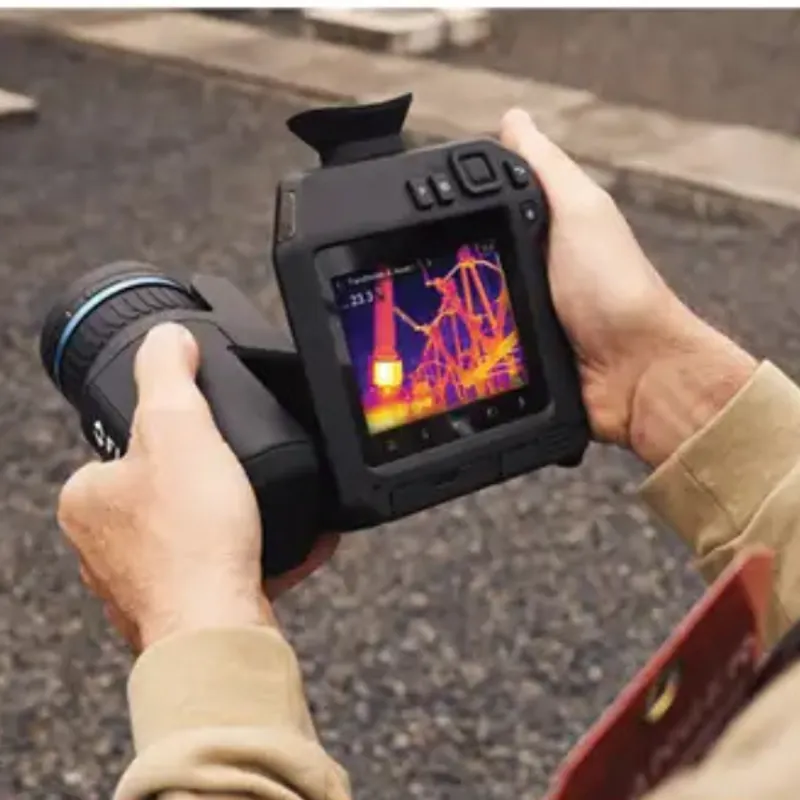

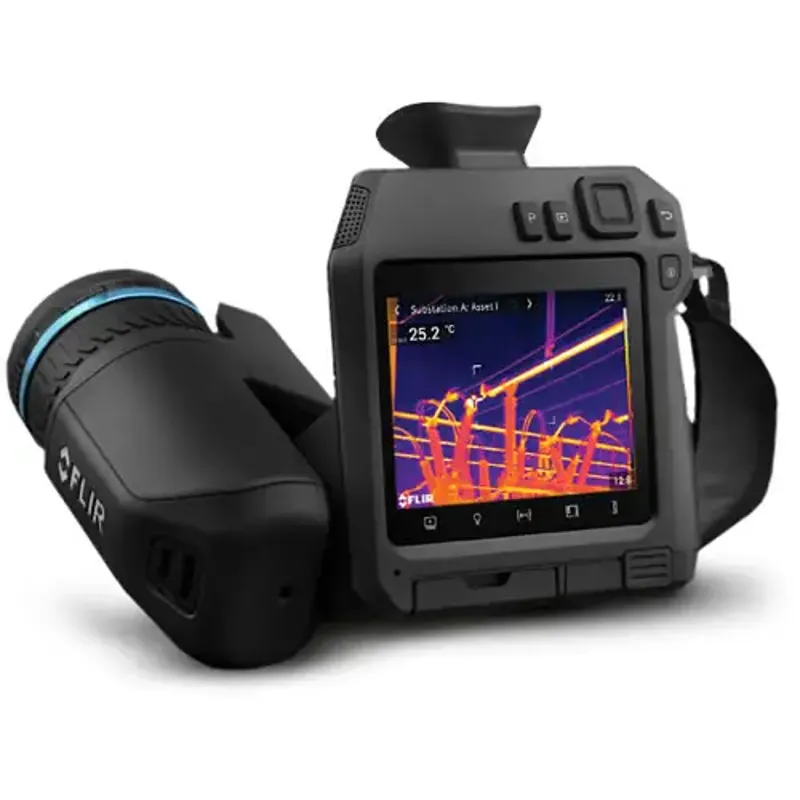

The Teledyne FLIR T865-24-42 High-Performance Thermal Camera delivers industry-leading non-contact thermal imaging with precision and flexibility. Engineered for professionals focused on condition monitoring and preventative maintenance, this camera allows safe, efficient assessments of critical electrical and mechanical systems in any environment. With an ergonomic, tilting optical block and a bright 4-inch LCD touchscreen, the T865 provides effortless viewing and access in both indoor and outdoor settings.

Equipped with MSX (Multi-Spectral Dynamic Imaging) and UltraMax superresolution technology, the T865 enhances image detail and clarity, allowing technicians to identify and analyze faults faster and more accurately. Users can acquire thermal and visual imagery in logical sequences, organize inspections using FLIR Route Creator, and seamlessly sync data to FLIR Thermal Studio Pro for comprehensive reporting.

Features such as 1-Touch Level/Span, laser-assisted autofocus, and Wi-Fi sync streamline operation and help avoid diagnostic errors. The inclusion of both 24° and 42° lenses supports versatile imaging needs, whether capturing broad scenes or fine detail from a distance.

What's Included:

• 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
• 1 - 24° Lens
• 1 - 42° Lens
• 1 - Small Viewfinder Eyecup
• 2 - Rechargeable Li-ion Batteries
• 1 - Battery Charger
• 2 - Hard Carrying Case
• 1 - Lanyards
• 1 - Front Lens Cap
• 1 - Power Supply
• 1 - SD Card (8 GB)
• 1 - USB 2.0 A to USB Type-C Cable
• 1 - USB Type-C to HDMI Cable
• 1 - USB Type-C to USB Type-C Cable

Features

Dual-Lens System
Includes both 24° and 42° lenses for flexible imaging from wide-area coverage to fine-detail analysis.

Efficient Data Capture and Management
Streamline inspections using Teledyne FLIR Route Creator and Thermal Studio for fast, organized workflows.

Enhanced Image Quality
Teledyne FLIR Vision Processing combines MSX, UltraMax, and adaptive filtering for superior thermal clarity.

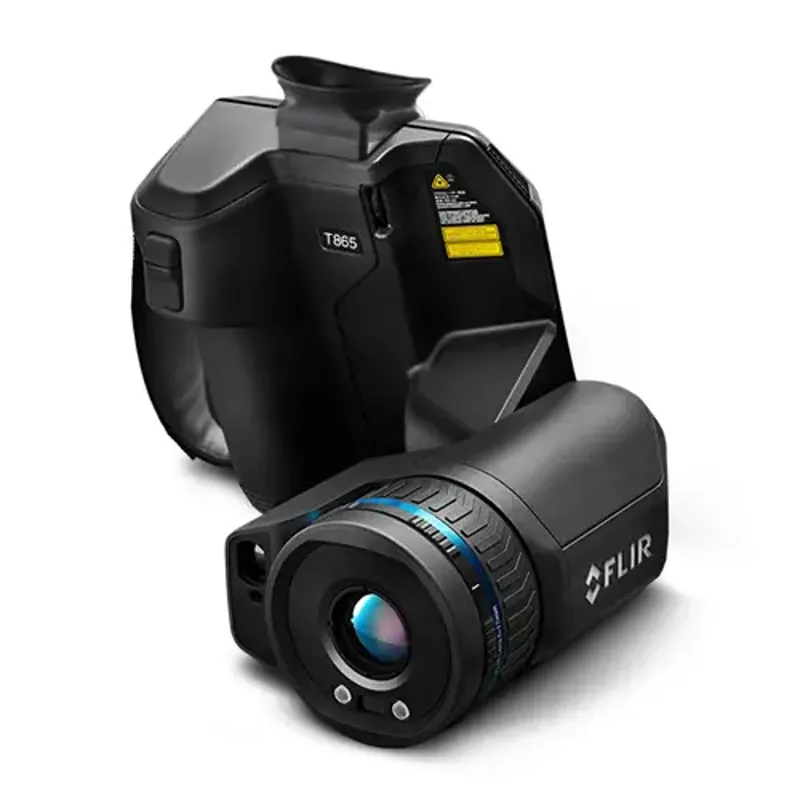

Rotating Optical Block
180° rotating lens system allows users to image overhead or below equipment with reduced strain.

High-Resolution IR Sensor
Capture 640 x 480 thermal images (enhanced to 1,228,800 pixels with UltraMax) for detailed inspection and analysis.

Precision Measurement Tools

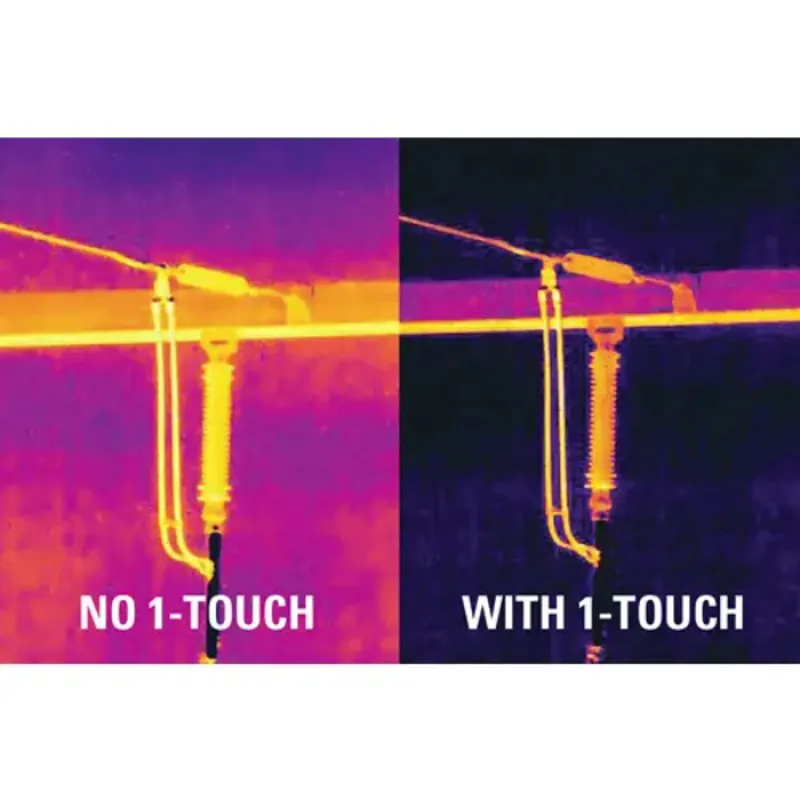

Features laser-assisted autofocus, 1-Touch Level/Span, and advanced temperature accuracy for confident diagnostics.

Intuitive Visual Display
Bright 4-inch LCD touchscreen and integrated eyepiece viewfinder allow work in bright or low-light environments.

Reliable Wireless Sync
Sync data wirelessly to Teledyne FLIR mobile apps and FLIR Thermal Studio Pro for efficient reporting.

Built-In Annotation Tools
Supports voice, text, sketch, and GPS image tagging for complete inspection documentation.

Versatile Recording and Streaming
Capture radiometric video, time-lapse sequences, and stream in multiple formats via DisplayPort, Wi-Fi, or USB.

What's Included

Included with Your Purchase:

• 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
• 1 - 24° Lens
• 1 - 42° Lens
• 1 - Small Viewfinder Eyecup
• 2 - Rechargeable Li-ion Batteries
• 1 - Battery Charger
• 2 - Hard Carrying Case
• 1 - Lanyards
• 1 - Front Lens Cap
• 1 - Power Supply
• 1 - SD Card (8 GB)
• 1 - USB 2.0 A to USB Type-C Cable
• 1 - USB Type-C to HDMI Cable
• 1 - USB Type-C to USB Type-C Cable

Specifications

• IR Resolution: 640 x 480 (up to 1,228,800 with UltraMax)
• Detector Pitch: 12 μm
• Temperature Range: -40°F to 248°F, 32°F to 1202°F, 572°F to 3632°F
• Digital Zoom: 1-8x continuous
• Thermal Sensitivity: <30 mK @ 30°C (42° lens)
• Image Frequency: 30 Hz
• Spectral Range: 7.5 to 14.0 μm
• Focus: Laser distance meter, contrast, or manual
• Display: 4-inch LCD touchscreen, 640 x 480, auto-rotation
• Digital Camera: 5 MP with LED lamp
• Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
• Image Modes: Infrared, visual, MSX, Picture-in-picture
• Storage: Removable SD card (JPEG with data)
• Video Output: DisplayPort, Wi-Fi, USB
• Battery Operation: Up to 4 hours at 77°F
• Operating Temperature: 5°F to 122°F
• Durability: IP54, shock (25 g), vibration (2 g)

FAQ

Q: What lenses come with the T865?
A: The package includes both 24° and 42° lenses for different field-of-view requirements.

Q: Can this camera be used outdoors in sunlight?
A: Yes, the integrated viewfinder and bright 4-inch LCD ensure visibility in all lighting conditions.

Q: How accurate is the temperature measurement?
A: The T865 provides up to ±1°C or ±1% measurement accuracy depending on the range.

Q: What is UltraMax and how does it work?
A: UltraMax captures 16 thermal images in rapid succession and combines them into one high-resolution, low-noise image for enhanced clarity and detail.

Q: Does it support voice annotations?
A: Yes, voice notes up to 60 seconds can be added to images or video using the built-in mic or Bluetooth headset.

Resources

Documents:

• Teledyne FLIR T8xx Series Datasheet
