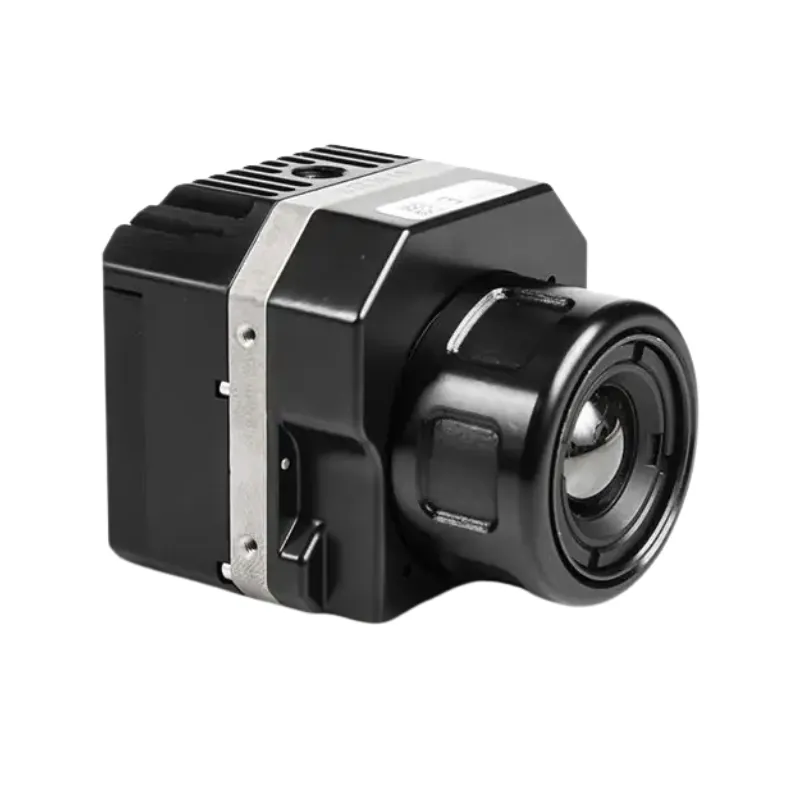

Name: FLIR Thermal Imager Vue Pro 640 19mm 30Hz for Drones sUAS 640 x 256
SKU: 236573

The Teledyne FLIR VUE-PRO-640-19MM-30HZ Thermal Imager for Drones (sUAS) with 19mm lens offers exceptional thermal imaging capabilities tailored for professional drone operations. With a sensor resolution of 640 x 256 and full 30 Hz frame rate, it delivers smooth, accurate thermal data for inspection, mapping, and agricultural applications.

This lightweight, uncooled VOx microbolometer camera not only records thermal video and 14-bit still images but also embeds flight control metadata into each frame when integrated with compatible flight systems. Its compact form and simple power-in/analog video-out interface make it easy to install on a wide variety of sUAS platforms. Camera settings can be adjusted in-flight using PWM inputs, or configured pre-flight through the UAS app. With field-upgradeable firmware and compatibility with FLIR Tools for post-flight analysis, this thermal imager supports precision and flexibility in every mission.

What's Included:

1 - Thermal Imager for Drones (sUAS) with 19mm Lens, 640 x 256, 30 Hz
1 - Bench Cable
1 - MicroSD Card
1 - Accessory Cable

Features

High-Resolution Sensor
640 x 256 thermal resolution for detailed imaging, suitable for critical inspection and survey operations.

Versatile Field of View
Equipped with a 19mm lens providing a 32° x 26° field of view, ideal for aerial scanning and broad coverage.

Real-Time Frame Rates
Supports 30 Hz (NTSC) and 25 Hz (PAL) for fluid motion and accurate tracking in dynamic environments.

Optimized Image Settings
Designed for airborne use, ensuring clear visibility and effective thermal contrast in flight.

Uncooled VOx Microbolometer
Reliable thermal imaging with low maintenance and quick startup times.

Integrated Data Recording
Records still images and thermal video directly to a microSD card in MOV format for secure data storage.

Geo-Tagging Enabled
Automatically captures GPS and flight metadata when integrated with flight controllers for mapping workflows.

MAVLink Support
Seamlessly connects with MAVLink-compatible drones for telemetry and control synchronization.

PWM Camera Control
In-flight adjustment of functions like color palette, image orientation, and zoom via controller input.

UAS App Compatibility
Teledyne FLIR mobile app allows pre-mission configuration and recording control.

Field-Upgradeable
Enables firmware updates for long-term functionality and enhancements.

Analog Video Output
Simple 10-pin mini-USB connector for power input and real-time analog video streaming.

What's Included

Included with Your Purchase:

1 - Thermal Imager for Drones (sUAS) with 19mm Lens, 640 x 256, 30 Hz
1 - Bench Cable
1 - MicroSD Card
1 - Accessory Cable

Specifications

Sensor Resolution: 640 x 256
Lens: 19mm
Field of View: 32° x 26° (digital); 32° x 24° (NTSC analog)
Frame Rate: 30 Hz (NTSC); 25 Hz (PAL)
Spectral Band: 7.5 µm to 13.5 µm
Thermal Imager Type: Uncooled VOx Microbolometer
Measurement Accuracy: ±5°C or 5% of reading
Video Output: Analog via 10-pin mini-USB
Recording Format: MOV for thermal video
Still Image Format: 14-bit imagery
Control Inputs: PWM and MAVLink integration
Software Compatibility: Teledyne FLIR Tools and UAS mobile app
Upgradability: Field-upgradeable firmware

FAQ

Q: Can I control the camera during flight?
A: Yes, PWM inputs and MAVLink integration allow real-time control over features like zoom, palettes, and orientation.

Q: What type of files are recorded?
A: The camera records MOV-format thermal video and 14-bit still thermal images to a microSD card.

Q: Is the imager compatible with FLIR Tools?
A: Yes, it is fully compatible with Teledyne FLIR Tools for post-flight thermal data analysis and reporting.

Q: Does it support geo-tagging?
A: Yes, when integrated with a compatible flight system, geo-location and flight metadata are embedded into each image for mapping applications.
