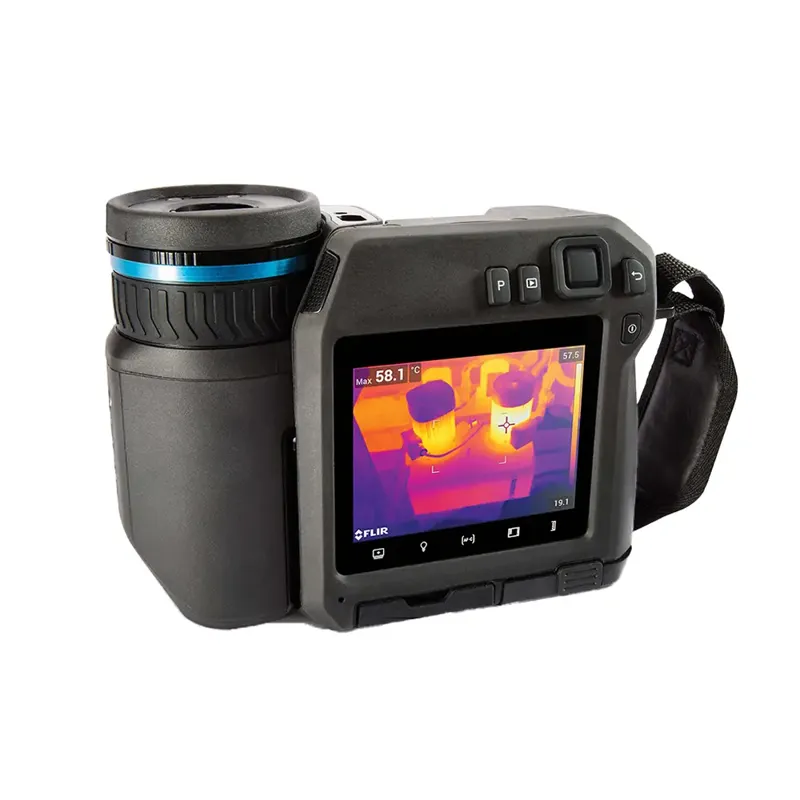

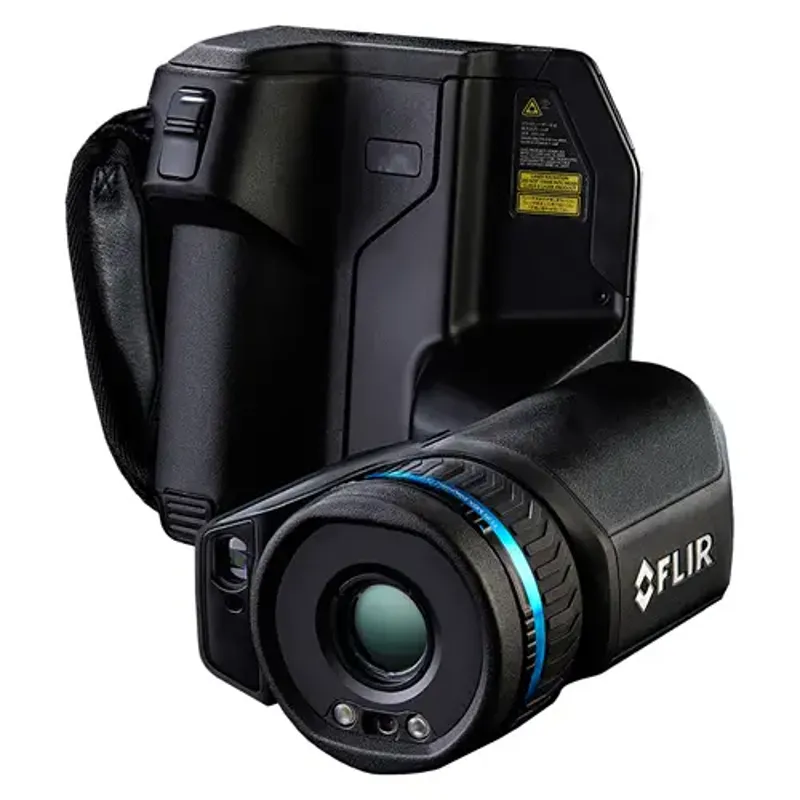

The Teledyne FLIR T540-42-14-NIST Thermal Imaging Camera is built to meet the demanding needs of thermographers and IR service consultants in industries like power generation, electrical distribution, and manufacturing. It combines a 464 x 348 resolution with a wide object temperature range of -4 to 2732°F and 14° and 42° lenses for unmatched flexibility and performance.
A standout feature is its 180° rotating optical block, which allows inspectors to capture images of hard-to-reach areas without straining. The FLIR Vision Processing system enhances image quality using MSX, UltraMax, and adaptive filtering technologies, providing sharper, more detailed thermal imagery. Laser-assisted autofocus ensures precision, while on-screen laser distance measurement simplifies targeting.
Ergonomically designed with a scratch-resistant 4" LCD and intuitive touchscreen controls, the T540 streamlines workflows with voice annotations, auto-fill text comments, and embedded GPS. With AutoCal optics and support for shared lenses, it's a versatile tool for any professional fleet.

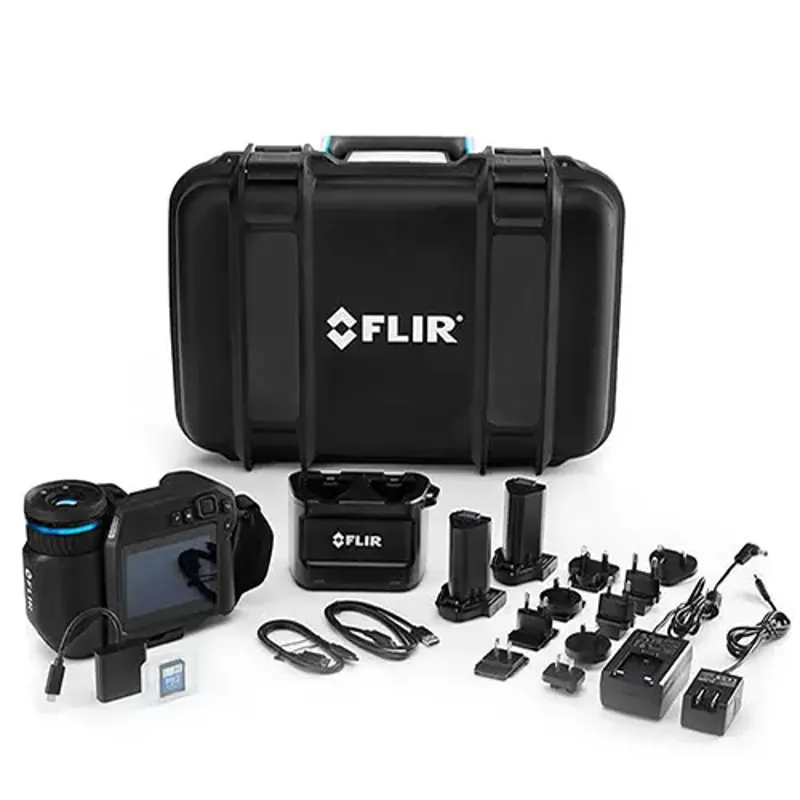

What's Included:
- Teledyne FLIR T540 Thermal Camera with 14° and 42° lenses
- NIST Calibration Certificate
- Battery
- Battery Charger
- USB Type-C Communication Cable
- Carrying Case
- Software License for FLIR Thermal Studio
Features
Dual Lenses for Versatility
Includes both 14° and 42° lenses, enabling flexible imaging across close and distant targets with 464 x 348 thermal resolution.
Wide Temperature Range
Captures precise readings from -4 to 2732°F, ideal for electrical, industrial, and mechanical applications.
Advanced Image Processing
Combines MSX, UltraMax, and adaptive filtering for sharper, clearer thermal imagery with greater detail.
Laser-Assisted Autofocus
Ensures accurate focus on every image, enhancing measurement precision and efficiency.
On-Screen Laser Distance Measurement
Helps determine component accessibility instantly, ideal for maintenance and troubleshooting.
Ergonomic Design
180° rotating optical block reduces fatigue during prolonged use in difficult viewing positions.

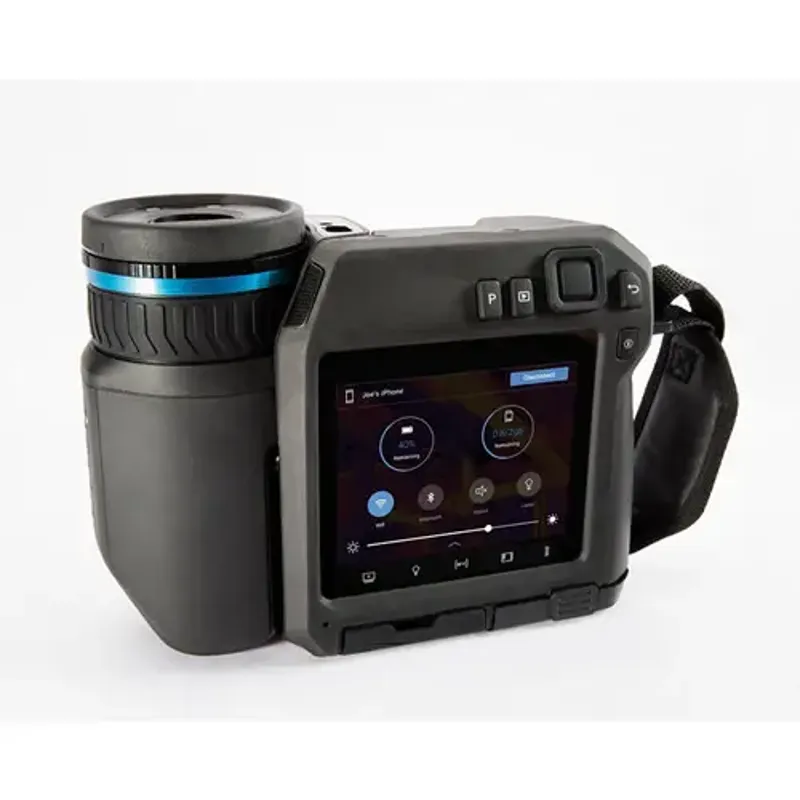

Intuitive Interface
Features a scratch-resistant 4" LCD, responsive touchscreen, and programmable buttons for seamless operation.
Streamlined Reporting Tools
Supports voice annotations, auto-fill comments, embedded GPS, and METERLiNK data integration.
Interchangeable AutoCal Lenses
Share lenses between compatible FLIR cameras without recalibration, saving time and cost.
High-Resolution Thermal Imaging
Delivers 161,472 non-contact temperature measurement points from a safe distance.
NIST Certified Calibration
Includes 12-point inspection and certificate for compliance and traceability.
What's Included
Included with Your Purchase:
- Teledyne FLIR T540 Thermal Camera with 14° and 42° lenses
- NIST Calibration Certificate
- Battery
- Battery Charger
- USB Type-C Communication Cable
- Carrying Case
- Software License for FLIR Thermal Studio
Specifications
- Thermal Resolution: 464 x 348
- Lenses: 14° and 42° with AutoCal support
- Temperature Range: -4 to 2732°F
- Zoom: 1 to 6x continuous zoom
- Display: 4-inch scratch-resistant LCD
- Focus: Laser-assisted autofocus
- Measurement Points: 161,472
- Image Processing: MSX, UltraMax, adaptive filtering
- Interface: Touchscreen and 2 programmable buttons
- GPS & MeterLink: Embedded GPS and compatibility with FLIR meters
- Video Frame Rate: 30 Hz
- Ergonomics: 180° rotating optical block
FAQ
Q: What makes the T540 ideal for difficult-to-reach inspection points?
A: The 180° rotating optical block allows users to capture thermal images from overhead or low angles without physical strain.
Q: How does UltraMax improve thermal imaging?
A: UltraMax captures 16 images and combines them to quadruple pixel count and reduce noise, enhancing clarity and measurement accuracy.
Q: Can I share lenses between different FLIR models?
A: Yes, thanks to AutoCal lens technology, you can use lenses interchangeably across compatible FLIR cameras.
Q: Is calibration included?
A: Yes, this model includes a NIST-traceable calibration certificate from Teledyne FLIR’s 12-point inspection program.
