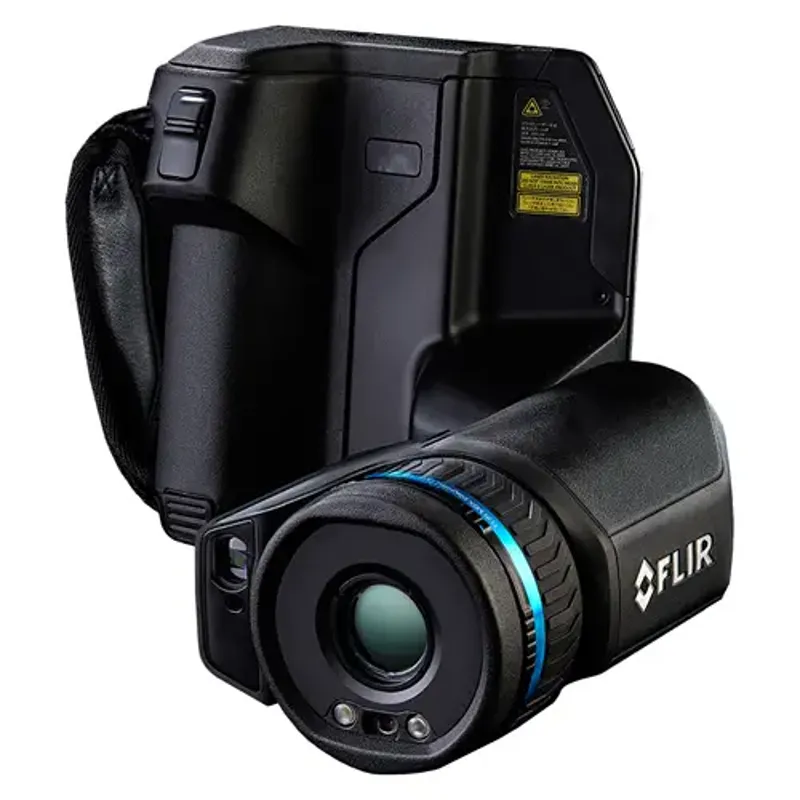

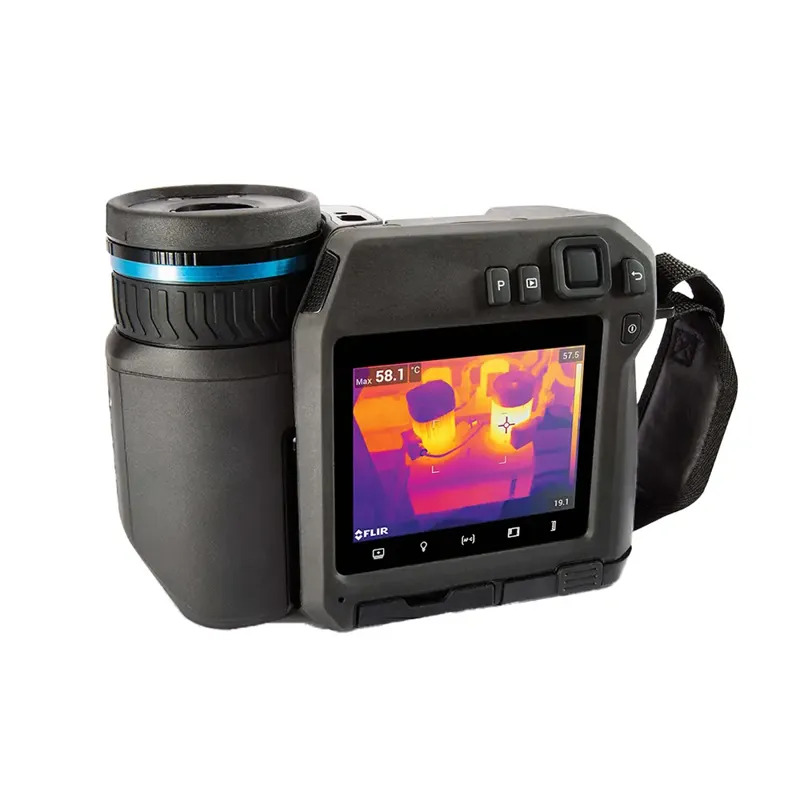

The Teledyne FLIR T540-24-NIST Thermal Imaging Camera is engineered for expert thermographers and IR service consultants, delivering advanced performance for challenging industrial environments. With a 464 x 348 resolution and a versatile 24° lens, this camera provides precise imaging and reliable temperature measurement from -4 to 2732°F. The 180° rotating optical block allows flexible viewing angles, ensuring efficient inspections even in hard-to-reach areas.
Featuring FLIR’s signature MSX and UltraMax technologies, this camera enhances image detail and resolution, allowing users to pinpoint issues with exceptional clarity. Laser-assisted autofocus guarantees sharp imagery, while the 4-inch scratch-resistant LCD touchscreen ensures easy operation in the field. The T540 also includes streamlined reporting features, AutoCal lens sharing, and NIST-certified calibration for professional-grade documentation and reliability.

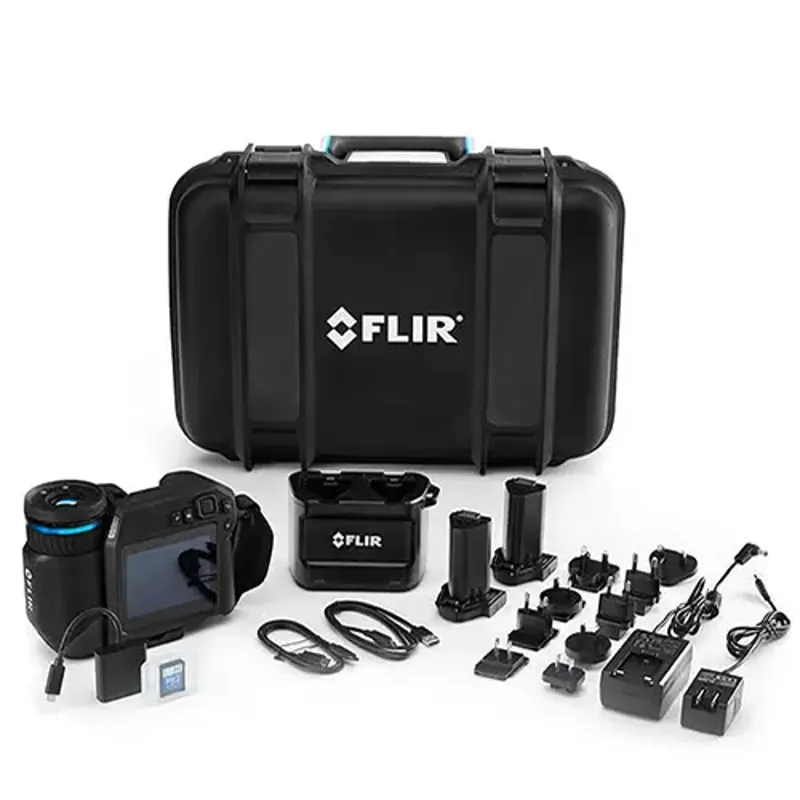

What's Included:
- FLIR T540 Thermal Camera with 24° Lens
- NIST Calibration Certificate
- Battery
- Battery Charger
- USB-C Cable
- Neck Strap
- Hard Transport Case
- FLIR Thermal Studio Starter Software
- Printed Documentation
Features
High-Resolution Imaging
Features a 464 x 348 detector with a 24° lens for capturing detailed thermal data across various industrial applications.
Extended Temperature Range
Measures temperatures from -4 to 2732°F, ideal for both low- and high-heat equipment monitoring.
Laser-Assisted Autofocus
Ensures crisp thermal images and accurate temperature readings with minimal user adjustment.
FLIR Vision Processing
Combines MSX, UltraMax, and adaptive filtering to deliver sharper, clearer thermal images.

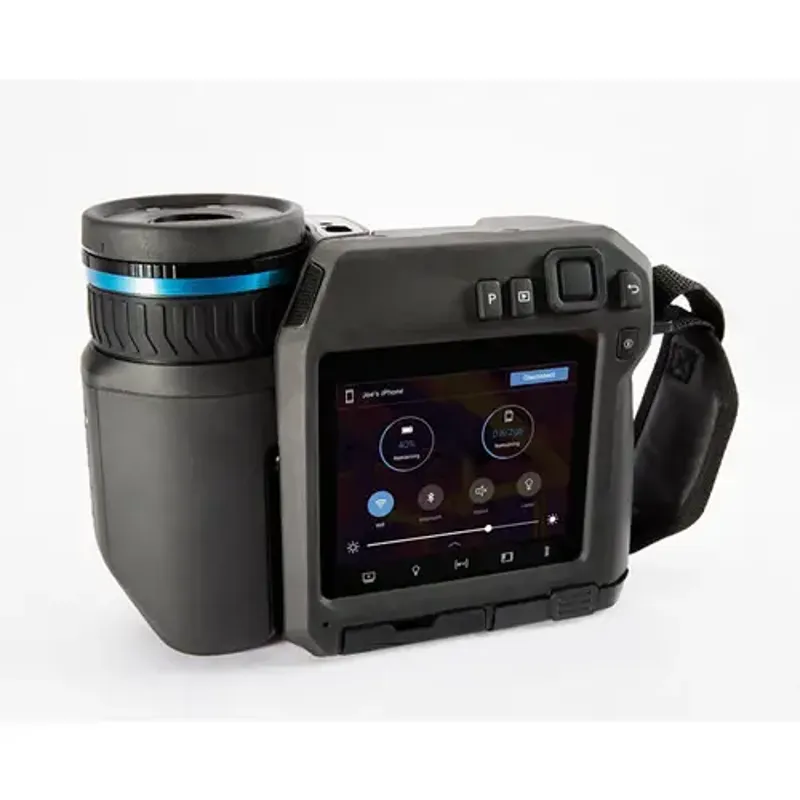

180° Rotating Optical Block
Improves user ergonomics by allowing imaging from difficult angles without physical strain.
Smart Measurement Tools
Includes on-screen laser distance and area measurement functions for better analysis and documentation.
AutoCal Lens Compatibility
Supports intelligent interchangeable lenses that can be shared across compatible camera models.
Intuitive User Interface
Equipped with a rapid-response touchscreen, programmable buttons, and customizable folders for efficient workflows.
Embedded GPS and METERLiNK
Records location and integrates data from FLIR meters for advanced inspection reporting.
Built-In Reporting Tools
Includes voice annotations, text comments, and image sketching to enhance inspection documentation.
What's Included
Included with Your Purchase:
- FLIR T540 Thermal Camera with 24° Lens
- NIST Calibration Certificate
- Battery
- Battery Charger
- USB-C Cable
- Neck Strap
- Hard Transport Case
- FLIR Thermal Studio Starter Software
- Printed Documentation
Specifications
- Infrared Resolution: 464 x 348 pixels
- Lens: 24° Field of View
- Temperature Range: -4 to 2732°F
- Zoom: 1 – 6x continuous digital zoom
- Display: 4-inch scratch-resistant LCD
- Thermal Sensitivity: <50 mK
- Image Enhancement: MSX, UltraMax, FLIR Vision Processing
- Focusing: Laser-assisted autofocus
- GPS: Embedded GPS for image geotagging
- Data Transfer: USB-C
- Certification: NIST traceable
- Software: FLIR Thermal Studio Starter
- Refresh Rate: 30 Hz
FAQ
Q: What is the main benefit of the UltraMax feature?
A: UltraMax enhances image resolution by capturing and combining 16 thermal images, resulting in sharper images with more detail and accuracy.
Q: Is the lens interchangeable?
A: Yes, the T540 supports AutoCal intelligent lenses that can be shared across other compatible FLIR cameras.
Q: What is the purpose of the NIST certificate?
A: It certifies that the thermal camera has been calibrated against standards traceable to NIST, ensuring accurate and reliable temperature measurements.
Q: Can this camera measure from a distance?
A: Yes, it provides 161,472 temperature measurement points, enabling scanning of large areas safely from afar.
