**2021 Smart shock Models Will need additional bracket

PART # MAV-05400

The HCR X3 72" Dual-Sport kit is designed as an OEM Factory replacement kit for the X RS 72" model or can be used as a 64" XDS Long Travel Conversion. The HCR signature High Clearance A Arm and trailing arm design increases ground clearance 1.5 inches under key components. Approach angles have been improved for reduced surface attraction and friction. Both the Can Am Maverick X3 Dualsport and Elite kit are manufactured with HCR’s proprietary Elite material . This custom alloy is 30% stronger in yield and tensile strength than 4130 Series Chromoly and goes through several processes for better wear resistance and overall strength.

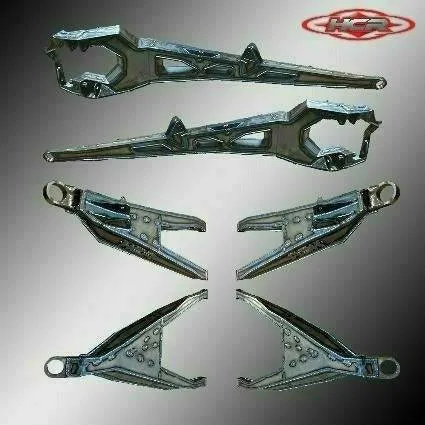

Note: MAV-05400 72" Suspension Kit includes: 4 Front A-arms (2 upper, 2 lower), 2 Rear Trailing Arms, Delrin Bushings for replacement in the front A-arms, brake line mounting hardware, and shock bolts. For this kit you will need to reuse or replace with OEM/aftermarket components: Ball joints in the front A-arms, Crush Sleeves and wear plates in the Front A-arms, Trailing arm Radial joints, mounting bolts and hardware otherwise not provided.

NOTE: 14" WHEELS WILL NOT FIT
