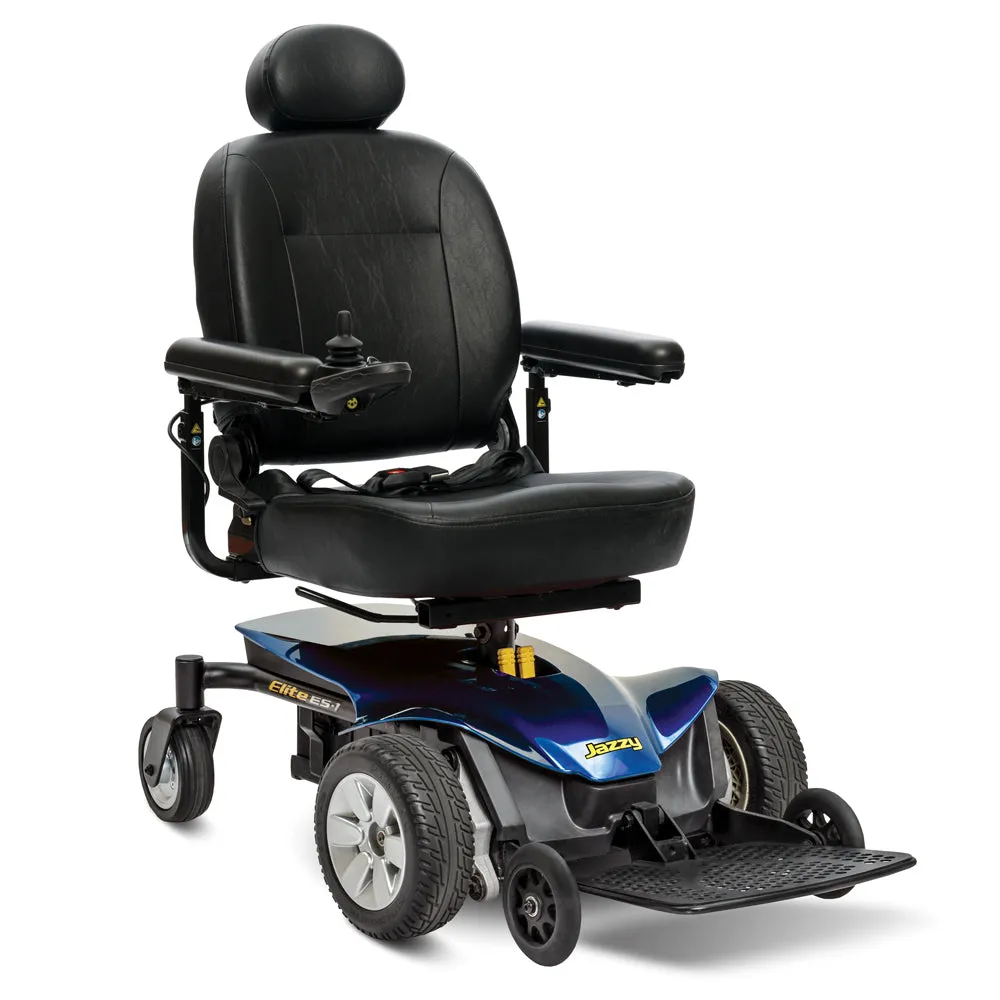

Jazzy Elite ES-1 Info:
The Jazzy® Elite ES-1 offers a combination of great style, comfort and performance for your active lifestyle.
The in-line, front-wheel drive design provides tight turns around corners for optimal indoor maneuverability in tight spaces.
Large front wheels offer extra absorption over obstacles and superb climbing capabilities combine with front anti-tip wheels for transitioning over grade changes easily.
The Jazzy Elite ES-1 handles various terrains with ease.
- In-line, front-wheel drive technology
- 40 amp, PG GC 3 controller
- Simple main frame design for easy serviceability
- 18" x 18" comfort high-back seat with headrest (standard)
- Jazzy® Armor® controller guard to protect from daily wear and tear
Jazzy® Elite ES-1 Specification
| Model | Jazzy Elite ES-1 |
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 23.5" |
| Width1 | 22.75" |
| Length1,2 | 34.75" |
| Maximum Speed3 | Up to 4 mph |
| Ground Clearance1 | 0.75" |
| Front Wheels | 5" solid anti-tips |
| Drive Wheels | 9" solid |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two-motor, in-line, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 20"W x 20"D |
| High-Back Seat-to-Floor Range | 21.5" - 23.5" |
| Standard Electronics | 40A, PG GC3 |
| Battery Size (2 required) | 12 volt, U-1 |
| Standard Battery Charger | 3.5A, off-board |
| Per-Charge Range3,6 | Up to 12 miles |
| Battery Weight5 | 25 lbs. each |
| Weight of Heaviest Piece4 | 69 lbs. |
| Standard Seat Weight | 43 lbs. (comfort, high-back) |
| Standard Seat Size | 18"x18"-20" |
| Medicare Code Coverage | Group 1: Standard (K0816) |
Testing Standards & Warranty
Testing Standards
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.
All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.
Some of the items our testing criteria include are:
- Product Stability & Brakes Effectiveness Tests
- Fatigue & Impact Strength Verification Tests
- Overall Product Performance Verification
- Dimensional Requirement Compliance
- Product Durability & Reliability Testing
- Material Protective Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for Adverse Weather Operation Conditions
- Electronic Systems Performance and Durability
- Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
- UL94VO Flammability Testing for Compliance of Plastic Components
- Electromagnetic Compatibility (EMC)
Warranty
- 5-Year limited warranty on frame
- 13-month limited warranty on electronics
- 13-month limited warranty on drive motors
- 13-month limited on batteries
