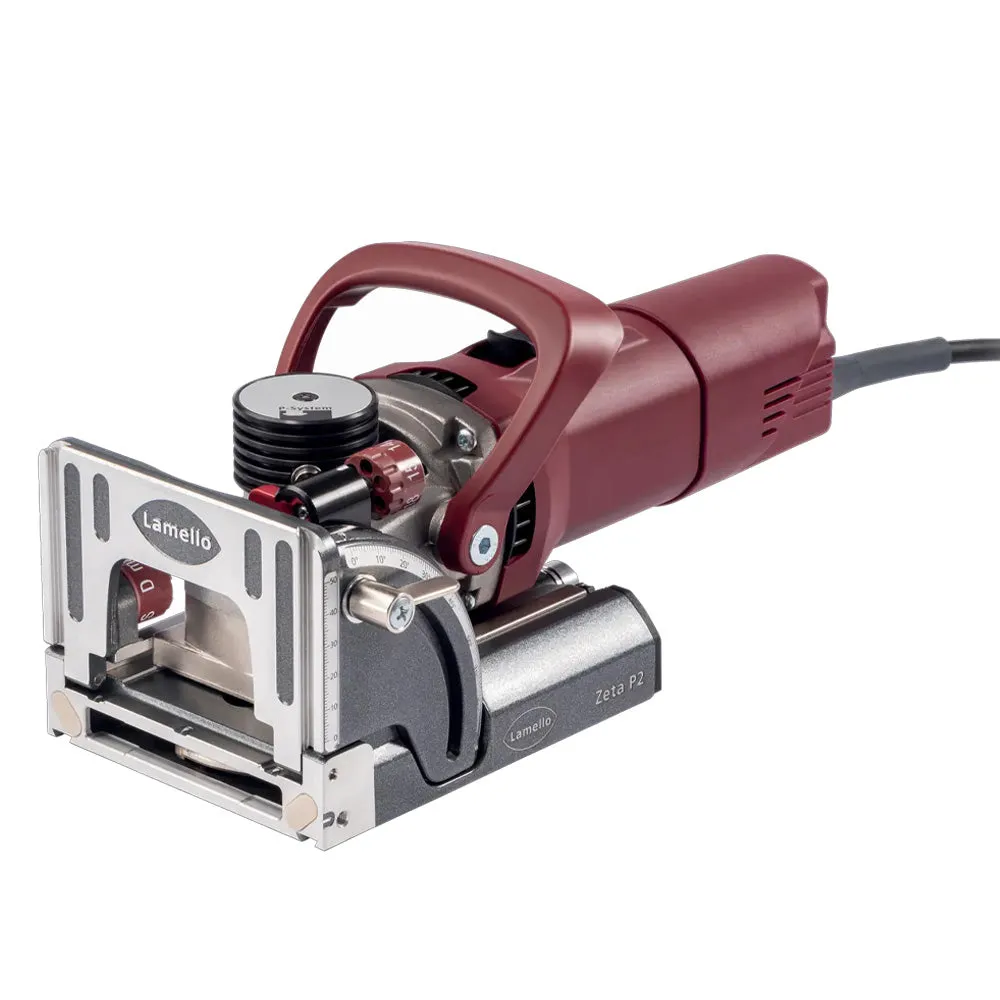

The Zeta P2 is the profile biscuit joiner for P-System Connectors. The innovative profile groove coupled with Lamello's connector system greatly reduces labor time while also negating the need for additional fastening materials like glue or screws.

The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 is the centerpiece of this profile biscuit joiner. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.

The Zeta P2 can cut P-System grooves for connecting fittings with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.

The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. The vertical mechanical drive combines process security and reliability with a low-wear, fully mechanical construction.

The Zeta P2 can also be employed as a standard biscuit joiner for by simply deactivating the profile groove function and changing to a 4 mm blade. Find your P-System Connectors .

This Zeta P2 Kit comes with a carbide-tipped cutter, which is recommended for use with denser hardwoods. Also available with a  for softer woods like MDF.

[TABS]

Features

• Trademark P-System Vertical Mechanical Drive. The vertical mechanical drive consists of highly precise rotary parts supplied by Lamello. It creates an eddy current, driving the stroke movement
• P-System Anchorage
• Tool-free anchoring of connectors, without adhesive or screws
• P-System Depth Adjuster
• Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15, or 18
• Use Zeta P2 for standard wooden biscuits by rotating the P-System depth adjuster to OFF to switch off the vertical mechanical drive. The 7 mm P-System cutter is replaced with the 4 mm groove cutter

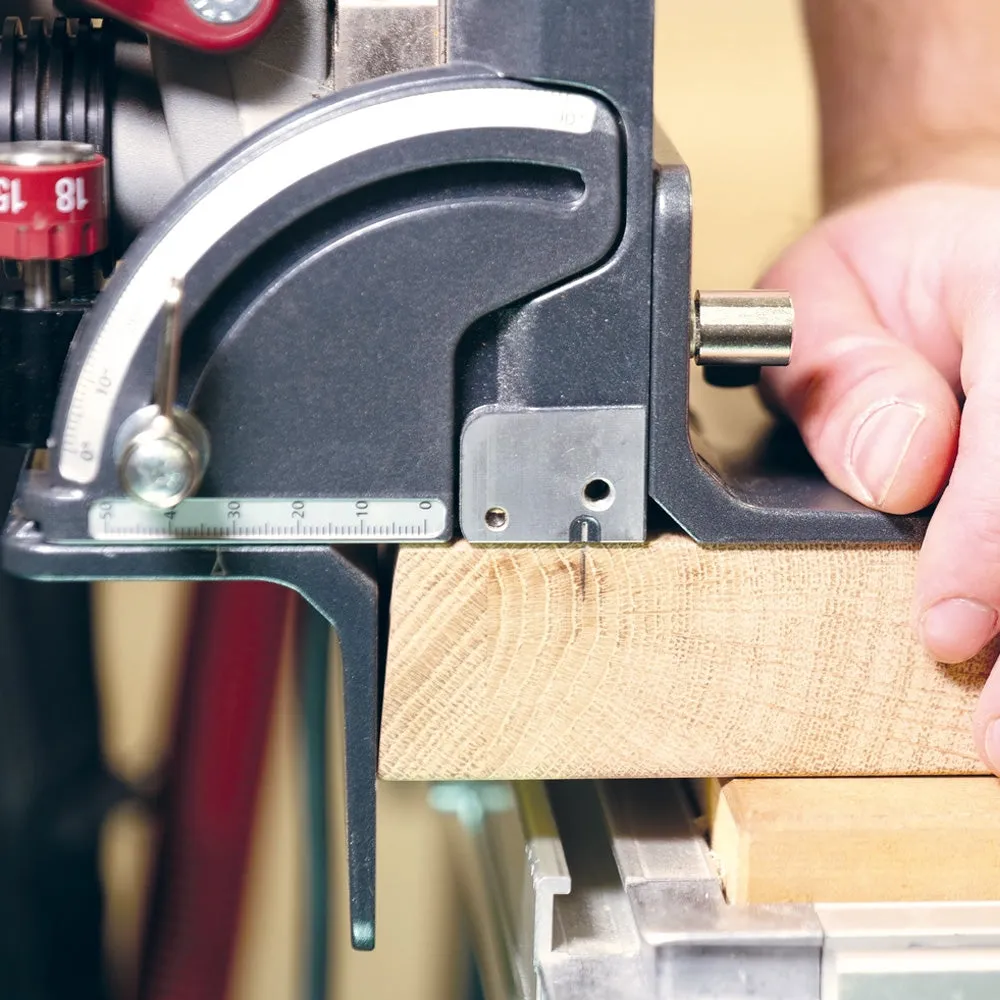

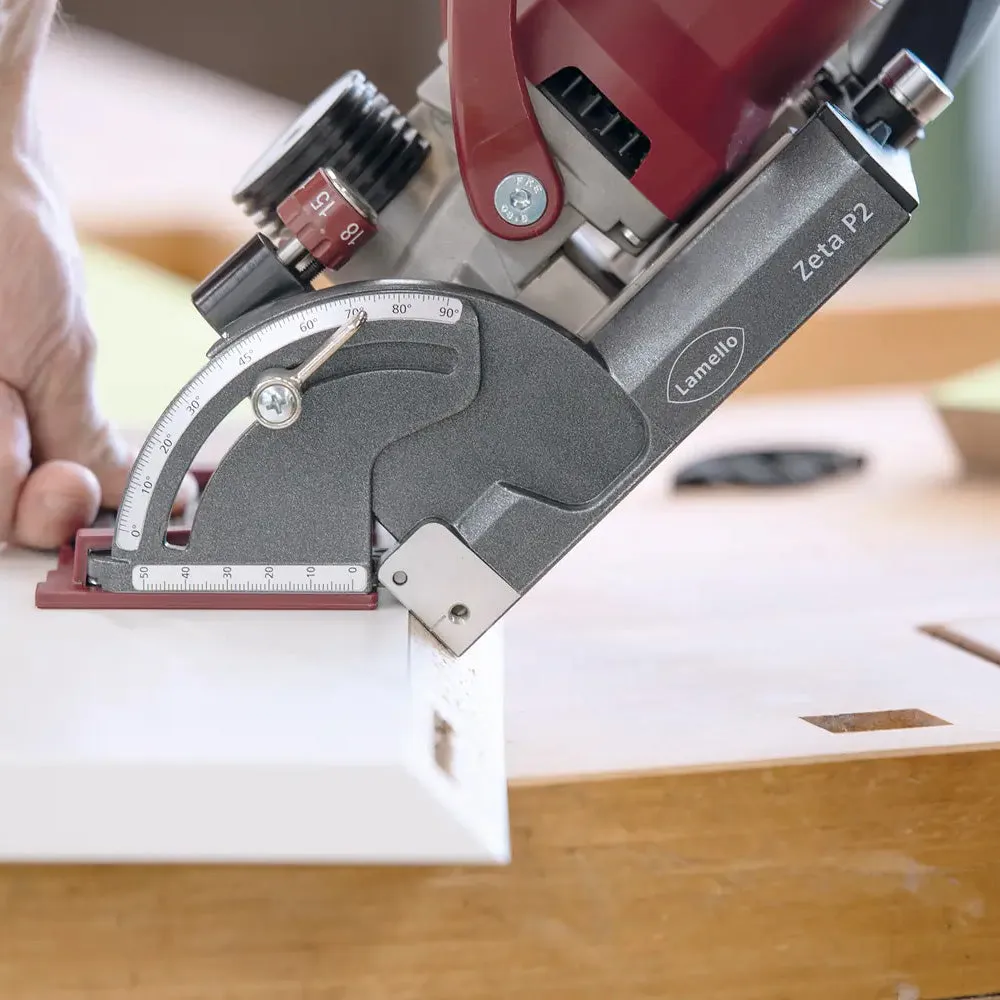

• Swiveling Front Stop with Fixed Pivot Point
• Join reliably with the cutter which is in the exact center between to two application surfaces

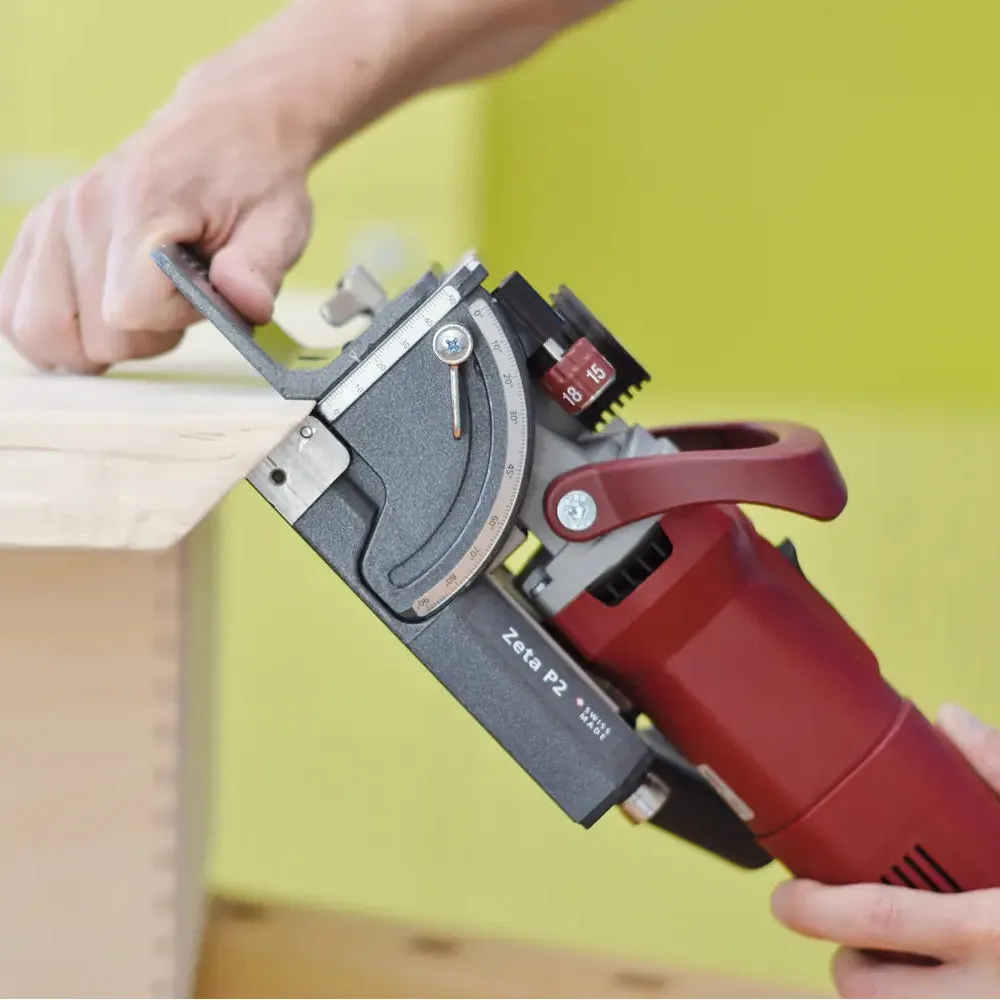

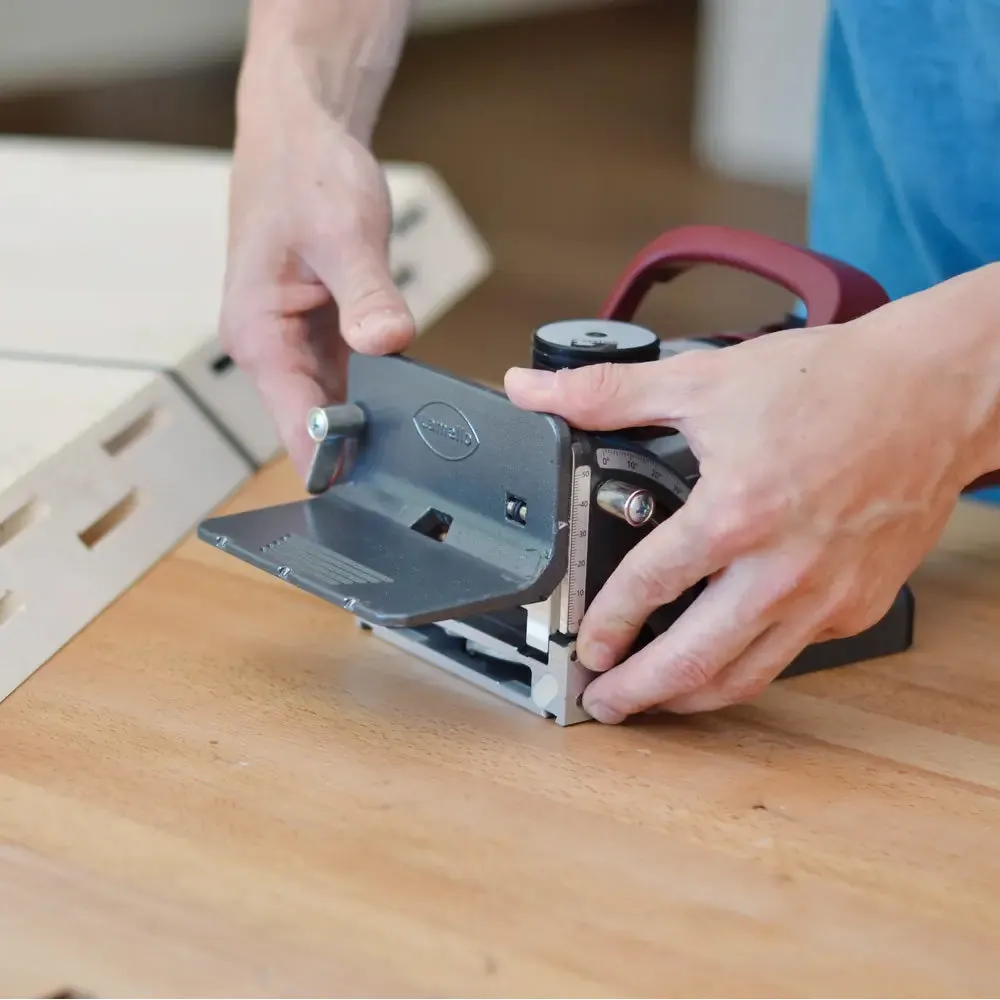

• Multifunctional Stop Square
• In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0-50 mm.
• Rapid, simple, and precise
• Identical grooves on both workpieces, saving time by removing the need for depth adjustments and minimizing the risk of errors
• Connector system with innovative profile groove technology greatly reduces labor time while also negating the need for additional fastening materials
• 5 different cutting depths for various connecting fittings
• Also compatible with biscuits and other 4 mm fittings

Specs

Power: 800 W
Voltage: 120 V
Speed: 9,000 RPM
Cutter: Carbide-tipped profile groove cutter Ø 100 x 7 x 22 mm
Teeth: 3
Max. cutting depth: 20 mm
Weight: 8.2 lbs.

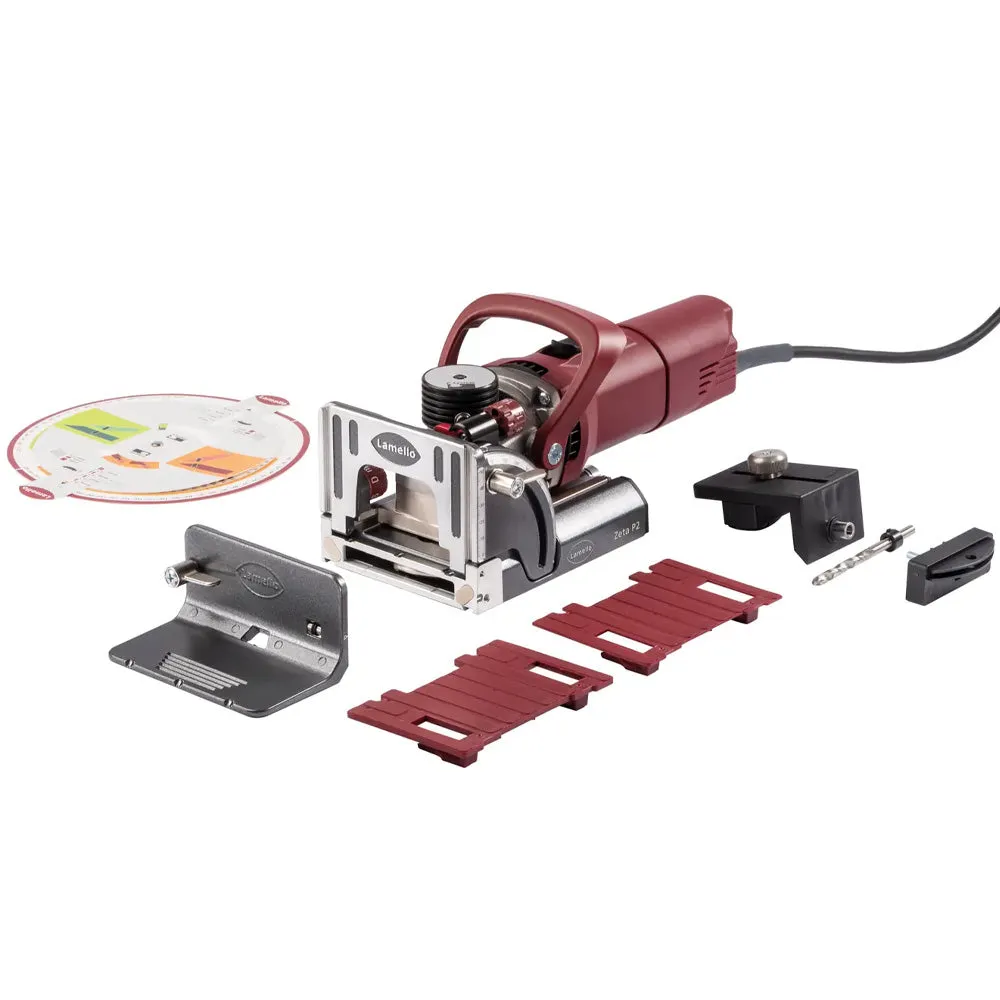

Includes

• Zeta P2 Joiner
• Carbide Tipped P-System Cutter
• Stop square
• Angle disc
• Spacer 2 mm
• Spacer 4 mm
• Tool set
• P-System Drill Jig
• Dust extractor stubs
• Lamello Systainer
