This electronic LED flasher is recommended for use with LED Indicator Bulbs.

If your vehicle is equipped with turn signals ONLY (mid-60s and older), you need just one flasher module. If your vehicle is equipped with turn signals AND 4-way hazard flashers (mid-60s and newer), you will need two flasher modules for everything to work correctly.

LED Flashers are not required with our headlights.

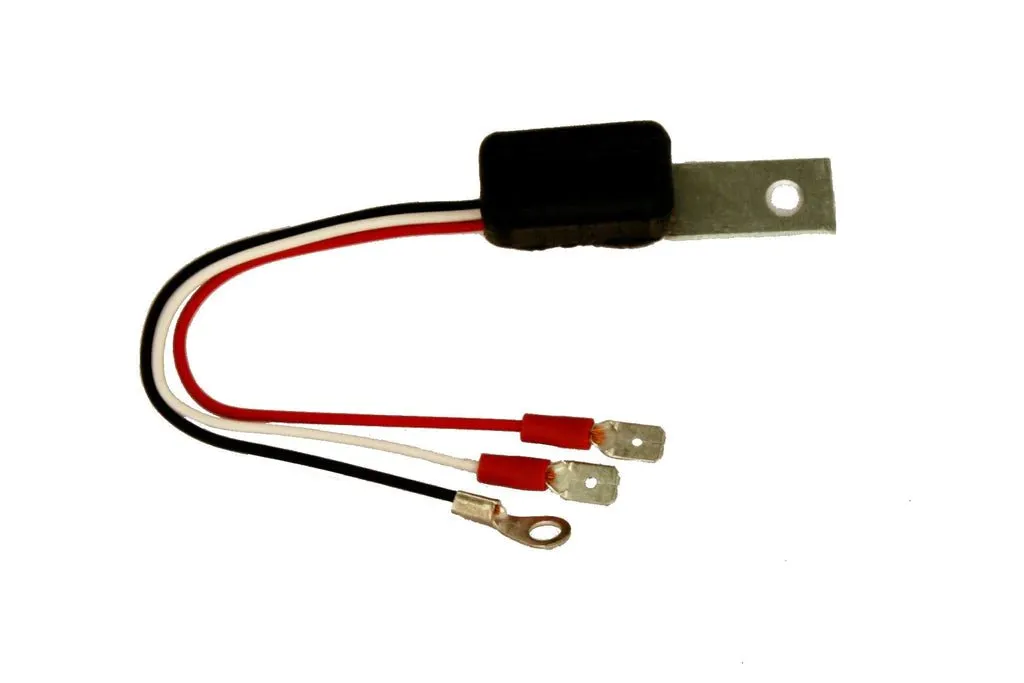

Electronic LED Flasher (Advanced) is a simple replacement and upgrade for standard flasher relays. It's compatible with incandescent lighting, LED lighting, or a combination of both. The flashing period is not affected by the current load placed on it. Regardless of how much or how little the current load is, the module’s flashing frequency remains digitally precise. Not only is the module compatible across types of loads, but it also has a very wide voltage operating range. This makes the module suitable for vehicles using different system voltages. Unlike mechanical relays, an Electronic LED Flasher (Advanced) is constructed of solid-state components that will not wear out over time. Being 100% solid state, the flasher module also operates silently. The module comes with 1/4-inch blade terminals to provide a simple replacement for standard flash relays. Extended leads on the module allow for easy mounting and installation.

The module operates with the ground wire connected to the chassis ground and the white load wire connected to an electrical load (with the other side of the load connected to the chassis ground); any time power is applied to the red power wire, power is passed through to the white load wire. This will then power the load. The microcircuitry in the flasher module then counts out 0.3 seconds. After 03 seconds, the flasher module interrupts power to the white load wire and then counts out another 0.3 seconds. After this second count, the flasher resumes power to the white load wire. This process repeats itself until power is removed from the red power wire.

Specifications:

Size: W - 0.6" L - 2.3" H - 0.6"

Lead Length: 5”

Input Voltage: 5 - 18 Volts

Output Voltage: 5 - 18 Volts, equal to input voltage

Output Current: 10 amps maximum

Connection Polarity: Negative ground wiring systems

Flash Frequency: 1.6 Hz (cycles On for 0.3 sec., Off for 0.3 sec.)

Internal Switching: Solid State, no mechanical relay contacts

External Connectors: ¼” blade terminals, ring terminal for ground

Maximum Ambient Operating Temperature: 120°F / 50°C
