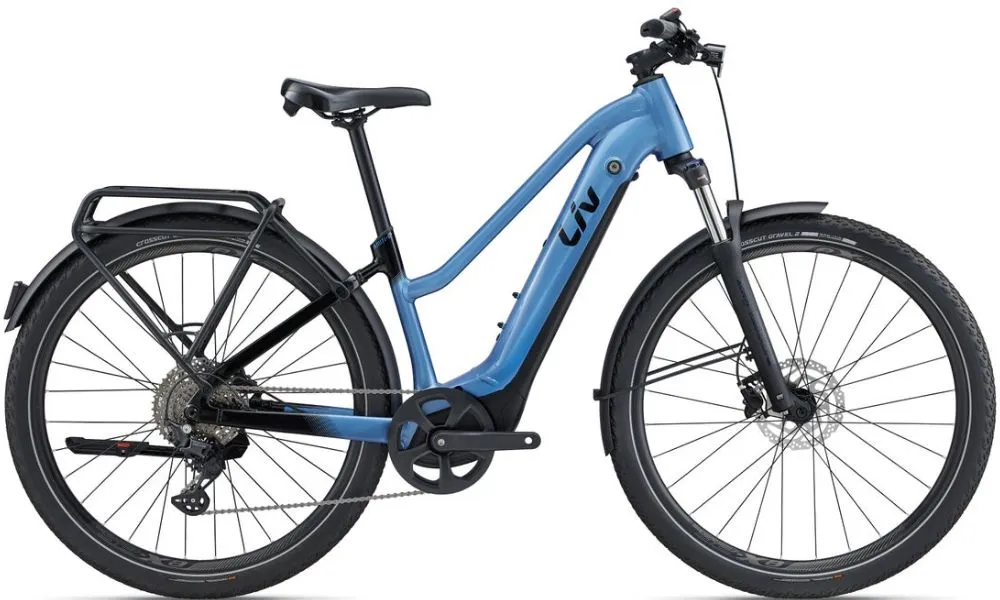

Liv 2023 Amiti E 1
REIMAGINE WHAT'S POSSIBLE
Rediscover your sense of adventure through the city and beyond.
Versatility
Access to new adventures is easily within reach thanks to the EnergyPak Smart 625Wh battery. The SyncDrive Sport 2 motor, delivers 75Nm of torque and with a maximum of 400% pedal assistance. All models include powerful disc brakes, which make variable terrain, hilly city commutes and windy country roads a non-issue.
Integrated Design
The EnergyPak is beautifully integrated into a lightweight and durable ALUXX aluminium frame, designed and tuned for women. The internal cable routing design and paired with display, fenders and integrated front and rear light, Amiti E is ready for comfortable commuting or awe-inspiring point-to-point treks.
Comfort
Smart Assist Technology smooths out bumps, and the ergonomic RideControl Dash handlebar controls make adjusting the assistance level simple. A 100mm suspension fork, all-terrain capable gravel tyres and sloping top tube with low standover height turns Amiti E into comfortable adventure rides.
Specifications
Liv 2023 Amiti E 1
Frame
Colour: Estoril Blue/Black
Frame: ALUXX aluminium, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
Fork: SR Suntour XCM34 LO, 100mm travel, Hydraulic Lockout, 15x110mm
Shock: NA
Drivetrain
Crankset: Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
Pedals:
Chain: Shimano, LinkGlide, CN-LG500
Bottom Bracket: NA
Rear Derailleur: Shimano Deore LinkGlide, 10-speed, Shadow
Front Derailleur: NA
Derailleur Shifter: Shimano Deore LinkGlide
Freewheel/Cassette: Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
Drive Unit: SyncDrive Sport2, 75Nm, powered by Yamaha
Battery: EnergyPak Smart 625Wh EnergyPak Plus range extender compatible
Wheels
Tyres: [F] and [R] Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready
Wheels/Rims: Giant eX25, Tubeless Ready, Aluminium
Hubs: Giant eTracker
Braking System
Brakes: Shimano BR-MT200, hydraulic disc, [F] 180mm, [R] 180mm
Brake Levers: Shimano BL-MT201
Other
Handlebar: Giant Connect Riser 31.8mm
Stem: Giant Contact, 8-degree
Saddle: Liv Sport Comfort
Seat Post: Giant 30.9mm, 2-bolt Micro Adjust, alloy
Controller: RideControl Dash
Display: RideControl Dash, full colour lcd screen
Charger: EnergyPak 4A smart charger compact
Extras
Kickstand: KSA40 direct mount kickstand
Carrier: MIK rack. System bag & basket compatible
Lights: [F] Recon E HL50 StVZO [R] AXA NYX 6-12V E-bike tail light with brake sensor
