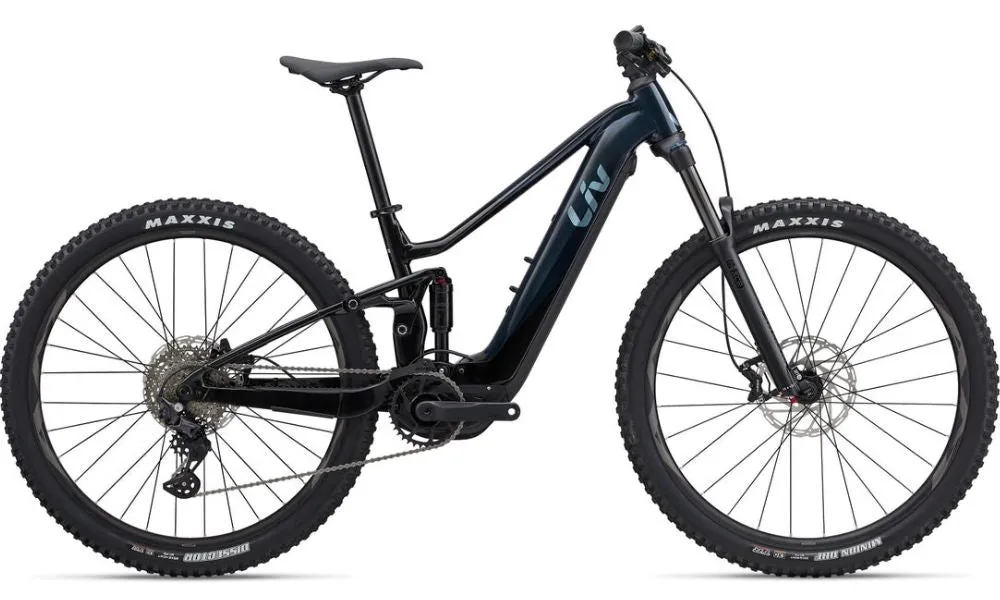

Liv 2023 Embolden E 2
FULLY CHARGED FUN.
The spirited power of Embolden E entices you to say yes at every turn, taking you further and faster than before.
Accessible Performance
The Embolden E delivers more aggressive travel, 125mm FlexPoint rear suspension and 140mm upfront making it an all-round backcountry adventure machine.
Goes the distance
The new SyncDrive Sport 2 motor with 75 Nm of torque and max 400% support and the EnergyPak Smart 625 or 500 battery offers the longest possible range - the Embolden E delivers the power you need to explore new terrain.
Built for You
Available in a full-size offering from XS to L and made for women by women for a dialled fit on day one.
Specifications
Liv 2023 Embolden E 2
Frame
Colour: Cold Night
Frame: ALUXX SL-Grade aluminium, 125mm travel FlexPoint suspension system, 12x148mm thru-axle, UDH hanger
Fork: SR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle
Shock: SR Suntour Raidon R, custom tuned
Drivetrain
Crankset: FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T
Pedals:
Chain: Shimano, LinkGlide, CN-LG500
Bottom Bracket: NA
Rear Derailleur: Shimano Deore LinkGlide, 10-speed
Front Derailleur: MRP HD2 co-moulded chain guide
Derailleur Shifter: Shimano Deore LinkGlide
Freewheel/Cassette: Shimano CS-LG400-10, 11-43T, 10-speed LinkGlide
Drive Unit: SyncDrive Sport2, 75Nm, powered by Yamaha
Battery: EnergyPak Smart 625Wh EnergyPak Plus range extender compatible
Wheels
Tyres: [F] Maxxis Minion DHF 27x2.5"(XS), 29X2.5"(S, M, L) Foldable, TLR, EXO, 60TPI [R] Maxxis Dissector 27.5x2.4"(XS), 29X2.4"(S, M, L) Foldable WT, TLR, EXO, 60TPI
Wheels/Rims: Giant AM 27.5"(XS), 29"(S, M, L), Tubeless ready, 30mm inner width
Hubs: Giant eTracker Boost
Braking System
Brakes: Tektro HD-M745 Orion, 4-piston, hydraulic disc, [F] 203mm, [R] 203mm
Brake Levers: Tektro HD-M745 Orion
Other
Handlebar: Giant Connect TR Riser 31.8mm
Stem: Giant Contact
Saddle: Liv Sylvia E
Seat Post: Giant 30.9mm, 2-bolt Micro Adjustable, alloy
Controller: RideControl Dash
Display: RideControl Dash, full colour lcd screen
Charger: EnergyPak 4A smart charger compact
