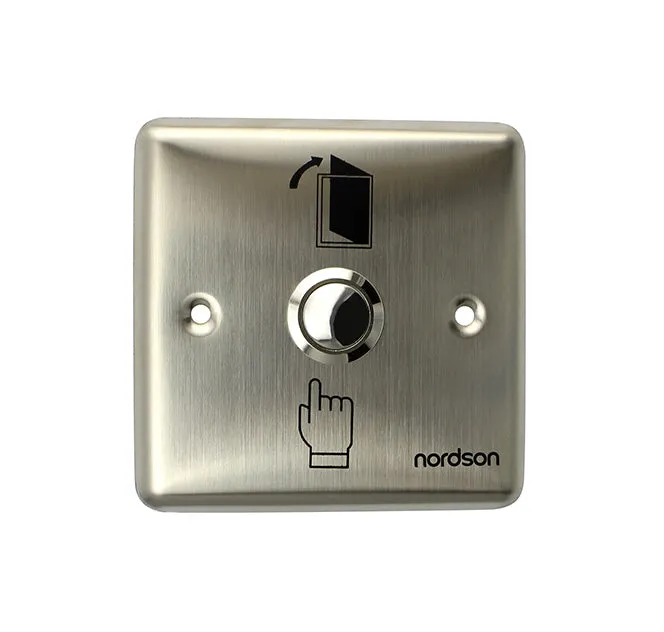

Nordson NF-80 Exit Push Button (Stainless steel)
◆NF-80 Exit Push Button(Stainless steel)
◆NF-80S Exit Push Button(Night Luminous)
Rating: 3A@36VDC Max
Mechanical Life: 500000 tested
Suitable for Door: Hollow Door
Color: White, Blue (luminescence)
Output Contact: NO\COM (NC\NO\COM is option)
Dimensions: 86*86*20(mm)
Weight: 0.1kg
◆NF-80S Exit Push Button(Night Luminous)
Rating: 3A@36VDC Max
Mechanical Life: 500000 tested
Suitable for Door: Hollow Door
Color: White, Blue (luminescence)
Output Contact: NO\COM (NC\NO\COM is option)
Dimensions: 86*86*20(mm)
Weight: 0.1kg
SPECIFICATION
| Model | NF-80 Push Button Switches |
| NF-80S Push Button Switches (with Night Luminous) | |
| Material | SUS304 Stainless steel Panel, Steel Button |
| Current Rating | 3A@36VDC Max |
| Output Contact | NO,COM Output |
| Optional Functions | NO/NC/COM Output |
| LED Nigh | Available option for Blue,Green or Red |
| Mechanical Life | 500000 Successful Test |
| Suitable for Door | hollow door frame and electrical box use |
| Operating temp | -10～ 55℃(14-131F) |
| Operating Humidity | 0-95% (Non- condensing) |
| Dimensions | 86Lx86Wx20H(mm) |
| Weight | 0.98kg |
NF-80 Push Button Switches is a satin finish stainless steel access switch button, suitable for a variety of door frame, which is marketed after 500,000 successful test . It is with simple & ultra-narrow design, refined and elegant.The Exit Button is the Best Choice for Access Control Systems.
