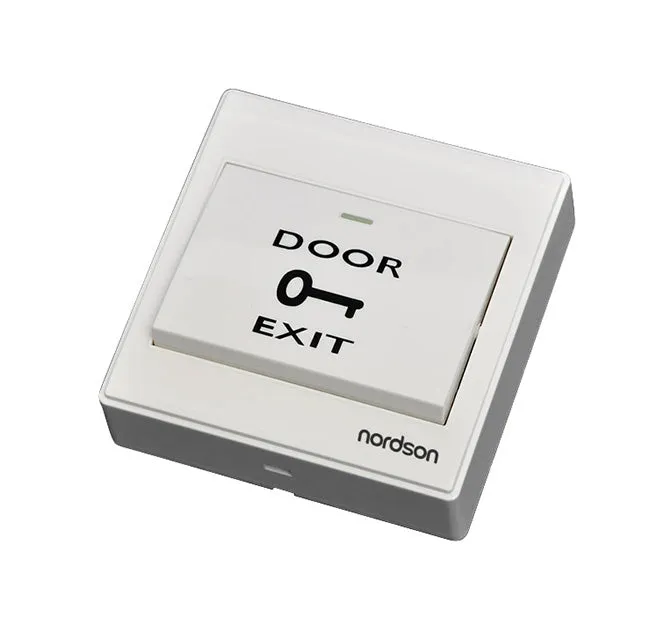

Nordson NF-86-M Plastic exit button with back box

Plastic exit button with back box
With luminescent indicators
Fireproof PC Material
Output Contact: NO\COM (NC\NO\COM is option)
Dimension: 86*86*50(mm)
Weight: 0.07kg

SPECIFICATION

Model	NF-86-M Door Switch with Back Box
Standard Structure	Plastic exit button with back box
Current Rating	3A@36VDC Max
Output Contact	NO,COM Output
Optional Functions	NO/NC/COM Output
Mechanical Life	50000 Successful Test
Suitable for Door	All Kind Doors
Operating temp	-10～ 55℃(14-131F)
Operating Humidity	0-95% (non- condensing)
Panel Material	Fireproof PC Material
Dimensions	86Lx86Wx50H(mm)
Weight	0.07kg

NF-86-M Door Switch standard access with bottom box,switch button,,simple and easy design, international standard size, elegant white,high-quality PC material,corrosion,strong flexible,flame retardant and compression,the key buttons, excellent sense of touch experience. Large wiring space, easy to instal.The Door Switch is the Best Choice for Access Control Systems.
