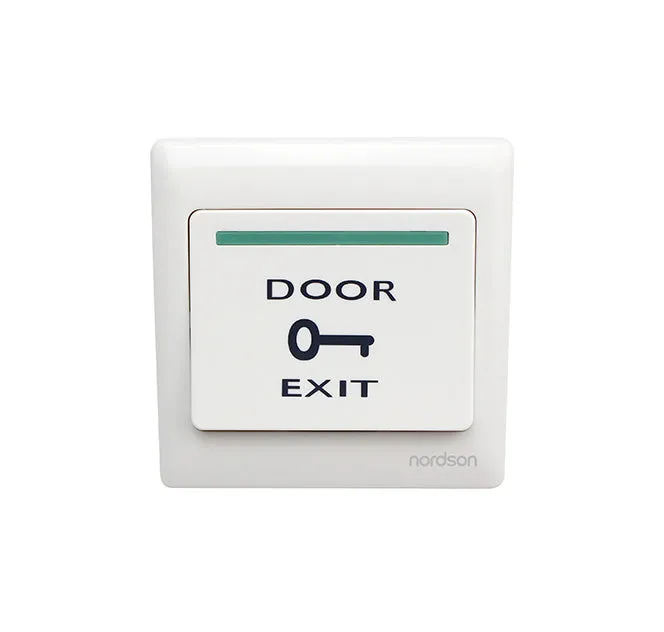

Nordson NF-86A Plastic Exit Button
Plastic exit button
With luminescent indicators
Fireproof PC material
Output Contact: NO\COM(NC\NO\COM is option)
Dimension: 86*86*20(mm)
Weight: 0.06kg
With luminescent indicators
Fireproof PC material
Output Contact: NO\COM(NC\NO\COM is option)
Dimension: 86*86*20(mm)
Weight: 0.06kg
SPECIFICATION
| Model | NF-86A Standard Access Switch Button |
| Standard Structure | Plastic exit button with back box |
| Current Rating | 3A@36VDC Max |
| Output Contact | NO,COM Output |
| Optional Functions | NO/NC/COM Output |
| Mechanical Life | 50000 Successful Test |
| Suitable for Door | All Kind Doors |
| Operating temp | -10～ 55℃(14-131F) |
| Operating Humidity | 0-95% (non- condensing) |
| Panel Material | Fireproof PC Material |
| Dimensions | 86Lx86Wx20H(mm) |
| Weight | 0.06kg |
NF-86A standard access switch button,,simple and easy design, international standard size, elegant white,high-quality PC material,corrosion,strong flexible,flame retardant and compression,the key buttons, excellent sense of touch experience. Large wiring space, easy to instal.The Standard Access Switch Button is the Best Choice for Access Control Systems.
