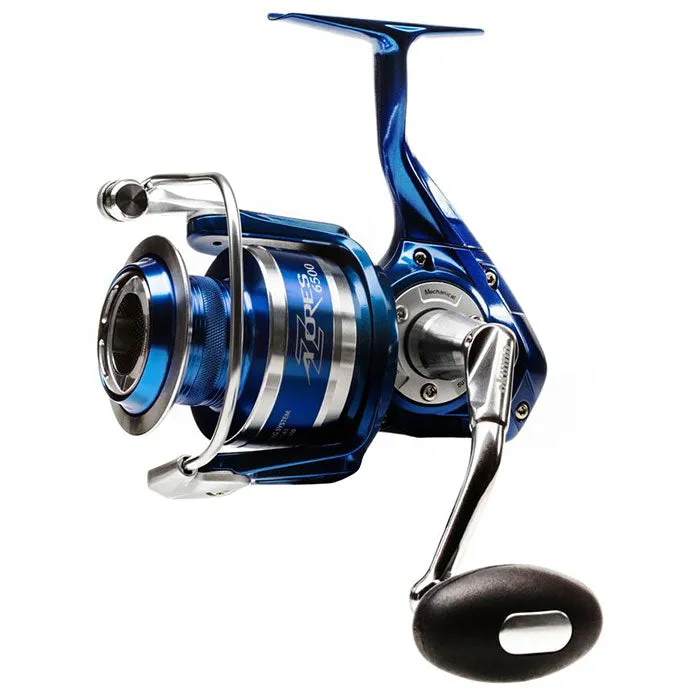

Okuma AZORES spinning reels are designed specifically for saltwater fishing. With the proven power features and the patented interior design, AZORES is much more durable, strong and smoother than the competition.
Features
DFD: Precision Dual Force Drag system
Precision click drag adjustment for more precise settings
Multi-disc, Carbonite and felt drag washers for DFD
6HPB 1RB corrosion resistant stainless steel bearings
Quick-Set anti-reverse roller bearing plus ratchet system
Dual anti-reverse system for maximum security
Azores-40 size only features the Quick-Set anti-reverse function
Precision machine cut brass pinion gear
CRC: Corrosion-resistant coating process
HDGII: Corrosion-resistant, High density gearing
ALC: Rigid diecast aluminum body, sideplate and rotor
MSS: carbon Mechanical Stabilizing System
Machined aluminum, 2-tone anodized spool with LCS lip
Machined aluminum handle arm for added strength
Hydro Block water tight drag seal
Mechanical Stabilizing System (MSS)
The Mechanical Stabilizing System for spinning reel is new exclusive Okuma technical design, the carbon plates increase the stability as well as help eliminating the vibration, integrally the MSS makes the reel running mechanically perfect.
Dual Force Drag System
DFD incorporates both surfaces of the spool to maximize high-end drag pressure, efficiency and overall smoothness. Mounted in the top of the spool and protected by the Hydro Block system is a multi-disc felt drag system that works in conjunction with a secondary drag system that is mounted under the spool. Even pressure is applied to both surfaces of the spool for maximum stability and significantly increased drag output compared to traditional single drag systems.
Knurled Spool Design
Knurling band on spool arbor increases friction and provides a locking point for braid which eliminates slipping and the need for backing resulting in maximum line capacity.
AlumiLite Construction (ALC)
Rigid die cast aluminum body, side plate and rotor: AlumiLite Construction incorporates Okuma's rigid aluminum body technology, alum frames are stronger and more rigid and are capable of withstanding more pressure and torque than traditional graphite frames. These lightweight, die cast alum frames provides more precise tolerances for precision gear aligment, maximum stability and ultimate durability.
Aluminum Material with Strong Anti-Corrosion Feature
The unique feature of its anti-corrosion characteristic performs extraordinarily well and is with resistance of 50% stronger than the general material in the market.
High Performance Bearing (HPB)
6 high performance ball bearings provide Azores with outstanding smoothness and reliability in saltwater fishing environments. The balls used on the HPB's are constructed from the same high-grade stainless steel material as the bearing housing.
Machine Cut Aluminum Handle
A rigid machine cut aluminum handle arm increases cranking power and performance. Ergonomic oval handle knob offers comfort for all fishing conditions.
Machine Cut Aluminum Handle
A rigid machine cut aluminum handle arm increases cranking power and performance. Ergonomic oval handle knob offers comfort for all fishing conditions.
Dual Anti-Reverse System
The Azores features Okuma's trusted Quick Set anti-reverse system and a backup multi-stop anti reverse system for increased durability and reliability in all fishing conditions.
Pinion Gear Supported With 2 Ball Bearings
An extra bearing supports the pinion gear for improved gear meshing and smooth transfer of power under heavy pressure.
Specifications
Model: Azores-4000
Gear Ratio: 5.8:1
Bearings: 6BB 1RB
Weight: 341g
Line Retrieve: 90.9cm
Max Drag Force: 13kg
Mono Line Capacity: 0.30-180m, 0.35/135m, 0.40/105m
Model: Azores-5500
Gear Ratio: 5.8:1
Bearings: 6BB 1RB
Weight: 524g
Line Retrieve: 104.6cm
Max Drag Force: 13kg
Mono Line Capacity: 0.35-250m, 0.40/190m, 0.50/125m
Model: Azores-6500
Gear Ratio: 5.8:1
Bearings: 6BB 1RB
Weight: 730g
Line Retrieve: 110.2cm
Max Drag Force: 20kg
Mono Line Capacity: 0.35-390m, 0.40/300m, 0.50/185m
Model: Azores-8000
Gear Ratio: 5.8:1
Bearings: 6BB 1RB
Weight: 745g
Line Retrieve: 120.4cm
Max Drag Force: 20kg
Mono Line Capacity: 0.45-310m, 0.50/250m, 0.55/210m
Model: Azores-9000
Gear Ratio: 5.8:1
Bearings: 6BB 1RB
Weight: 739g
Line Retrieve: 120.4cm
Max Drag Force: 20kg
Mono Line Capacity: 0.45-350m, 0.50/280m, 0.55/240m
