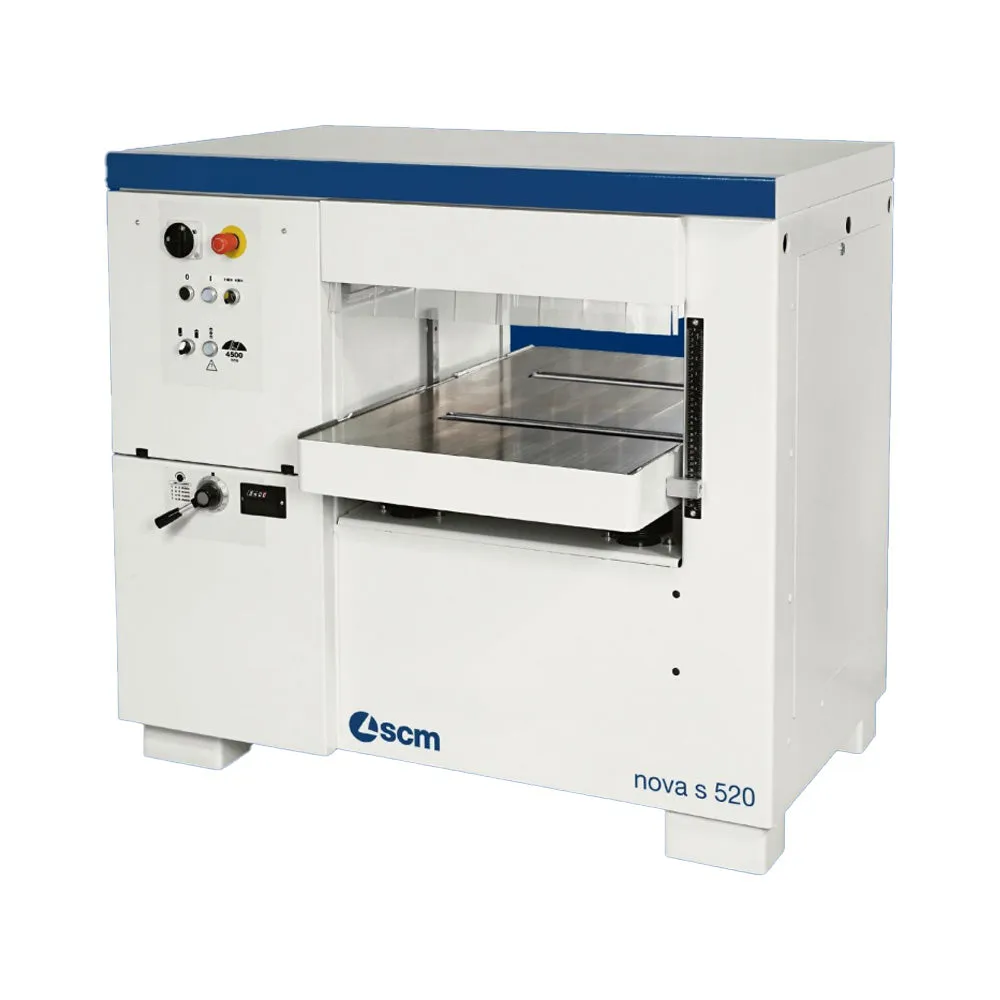

The Nova S520 is a heavy duty, 20” planer designed to meet the needs of the most demanding environments. It features a monoblock base, work table with support rollers, and a Tersa cutterhead.
Monoblock technology is used in the design and fabrication of this base. The solid, welded base undergoes a treatment called normalization which stabilizes the metal and assures exact tolerances. All machine mechanisms are mounted, aligned, and referenced to the base. This design is vastly superior to frames that are bolted together and have no true reference point.
All SCM planers use four jack screws with acme style threads and dust covers for maximum table support. In addition to providing a stable lifting system which eliminates sniping, the acme threads greatly increase the longevity of what is normally the most common wear item on planers. Through a patented design, there is a special bushing between the drive chain, and sprocket which doesn’t allow any pressure from the chain to reach the jack screw, thus pushing the machine’s longevity to the extreme.
Used when planing raw, uneven lumber, the work table support rollers allow irregular material to be planed that would not feed on a standard table. When the material has been planned flat on one side, the rollers can be lowered to allow a clean pass on the other side.
SCM “T” models include the quick change knife heads by "Tersa." This cutterhead eliminates the necessity of gauging the knives each time to ensure proper setting position. The Tersa knives automatically reference into position when the head is turned on. Removal of the knives is as simple as tapping down the wedge blocks and sliding out the knives. Since the knives are two-sided, they can be flipped over, reinserted, and used again.
Need replacement knives? Find them .
[TABS]
Features
- Tersa 4 knife, insert cutterhead
- Electric powered movement feed table raise and lower
- 4 speed feed system

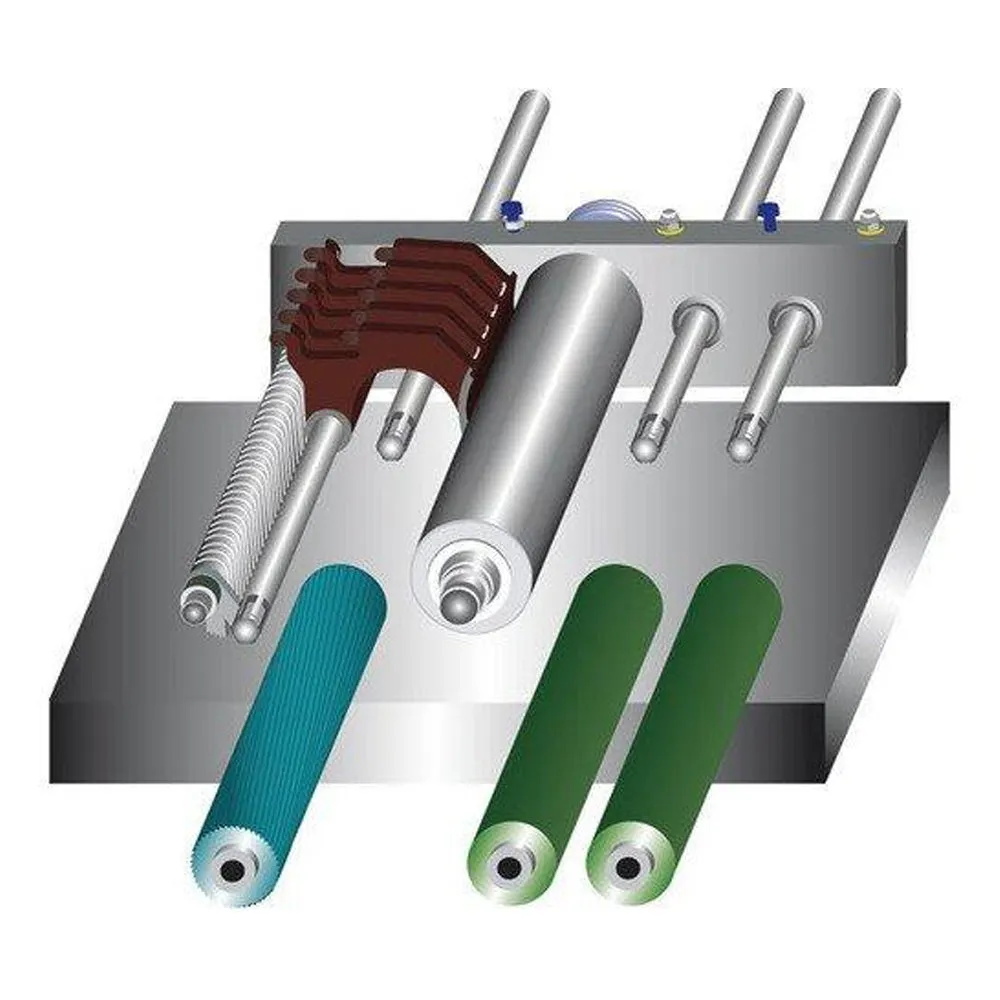

- Interchangeable Rollers

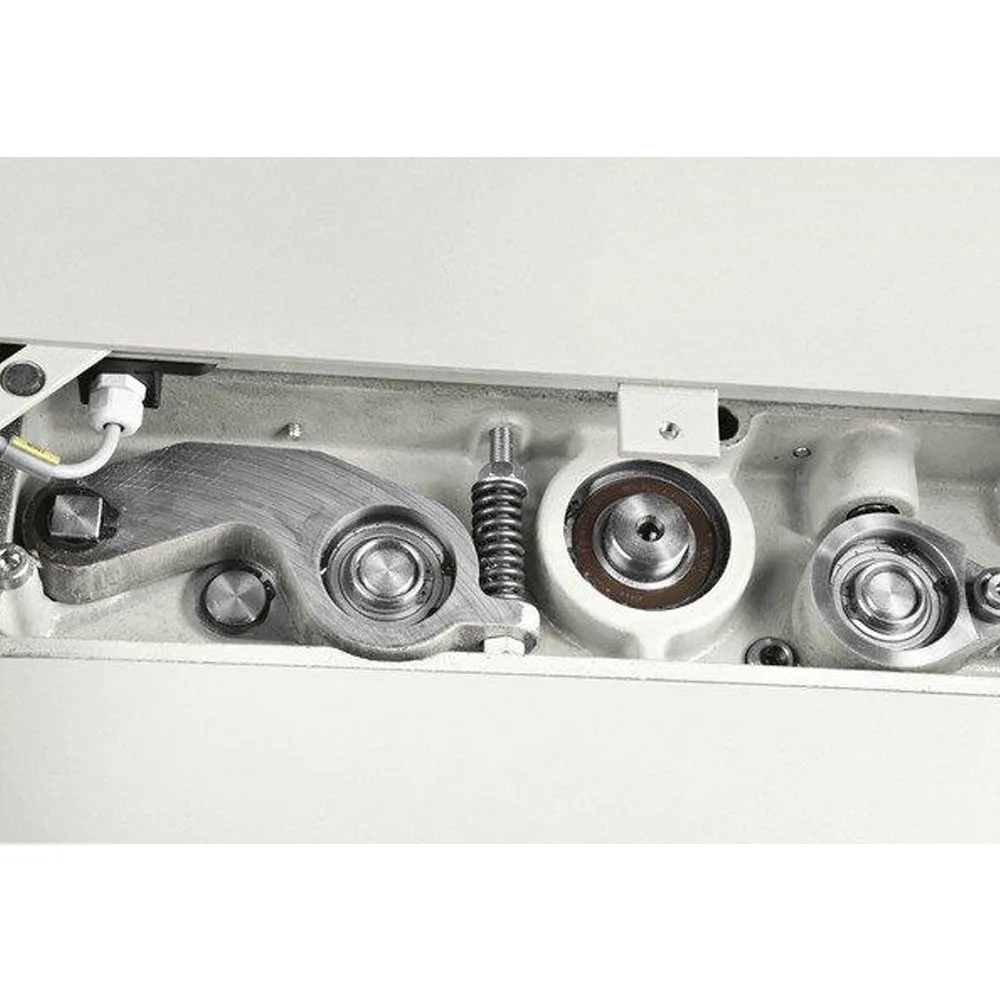

- Powered bearing-assisted feed rollers
- Mechanical readout of working thickness
- Magnetic starter with overload protection
- Table lifting by four high precision jack screws
- Adjustable bed rollers in feed table
- Course and fine thickness adjustment
- Tool set
- Dust hood
Specs
Motor: 11hp, 3-phase
Working Width: 20” (520 mm)
Working Height: 1/8” – 11.8” (3 – 300 mm)
Max. Depth of Cut: 5/16" (8 mm)
Min. Length of Stock: 10” (250 mm)
Cutter Head Diameter: 4-3/4" (120 mm)
RPM: 4,500
No. of knives: 4
Knife Dimensions: 20” x 35 ½” x 1/8” (520 mm x 30 mm x 3 mm)
Table Size: 20.75” x 35.4” (520 mm x 900 mm)
Feed Speeds: 5,8,12,18 m/min (20,33,43,56 FPM)
Infeed Roller: Steel sectional, power driven
Outfeed Roller: Rubber, power driven
Dust Hood Diameter: 5-7/8” (150 mm)
Noise Level (dB): 77.8
Overall Dimensions (L,W,H): 43" x 40" x 44”
Shipping Weight: 2,000 lbs. (905kg)
Net Weight: 1,890 lbs. (860 kg)
Electrical Requirements: 230 volt
Dust Extraction: 980 cfm
