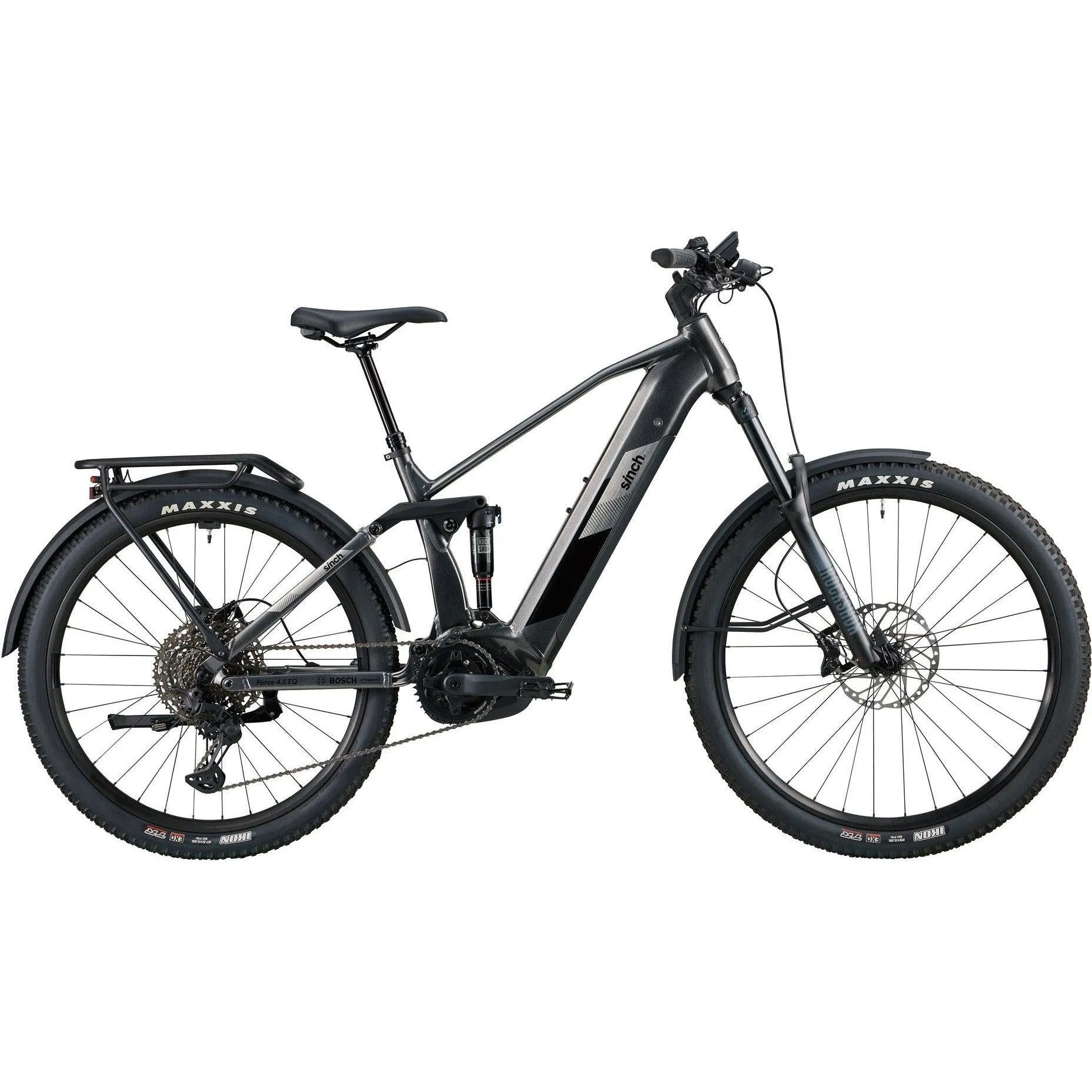

Introducing the Force 4.5 EQ: Your all-in-one SUV e-MTB full suspension boasting Mullet geometry and internal cable routing frame design. Equipped with integrated lighting, fenders, rear carrier, kickstand, and enhanced comfort. Driven by Bosch smart system technology, enjoy speeds up to 45km/hr for thrilling outdoor adventures and seamless daily commutes.
DEPENDABLE PERFORMANCE
The Force 4.5 EQ is a fully equipped capable SUV eBike for everyday built with all the latest Bosch smart system technology giving you the freedom to explore.
RELIABLE SAFETY
No matter where you choose to go, count on the Force 4.5 EQ to keep you safe and sound throughout your adventure. What more can you ask for?
UNPARALLELED COMFORT
With optimised custom tuned front and rear suspension, the Force 4.5 EQ has been built with the rider in mind. Being built for performance doesn’t necessarily mean that there should be compromises on comfort.
| Frame | 6061 E Bike Specific Aluminum Suspension Mullet Frame with 150mm rear travel and fully intergrated and removable Down Tube battery and internal cable management system |

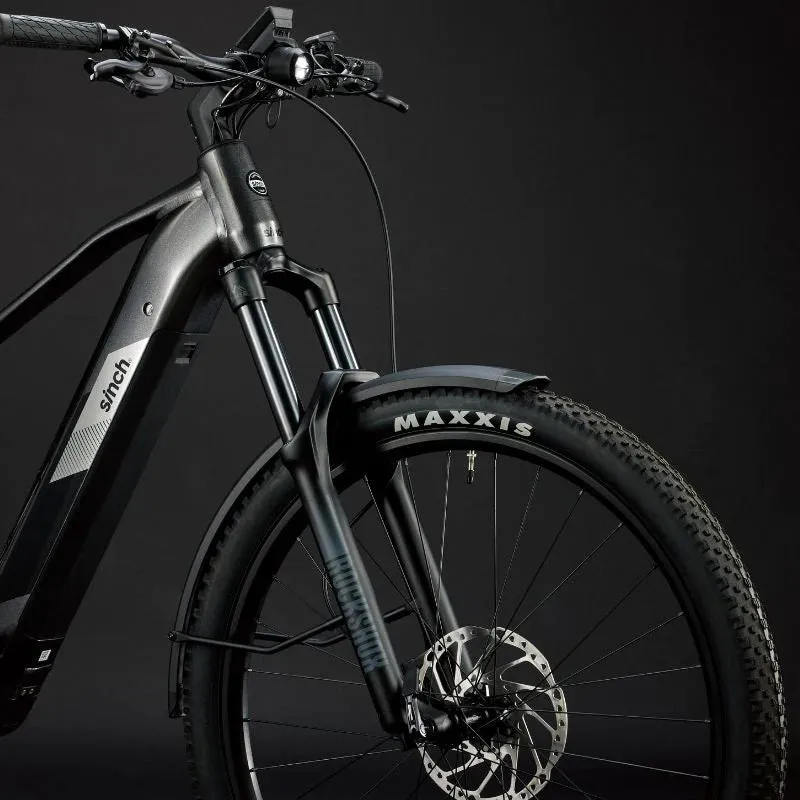

| Front Suspension | Rock Shox 35 Silver TK Solo Air 110 x 15mm boost thru axle, 160mm travel with rebound adjust and lockout, full fender compatible |

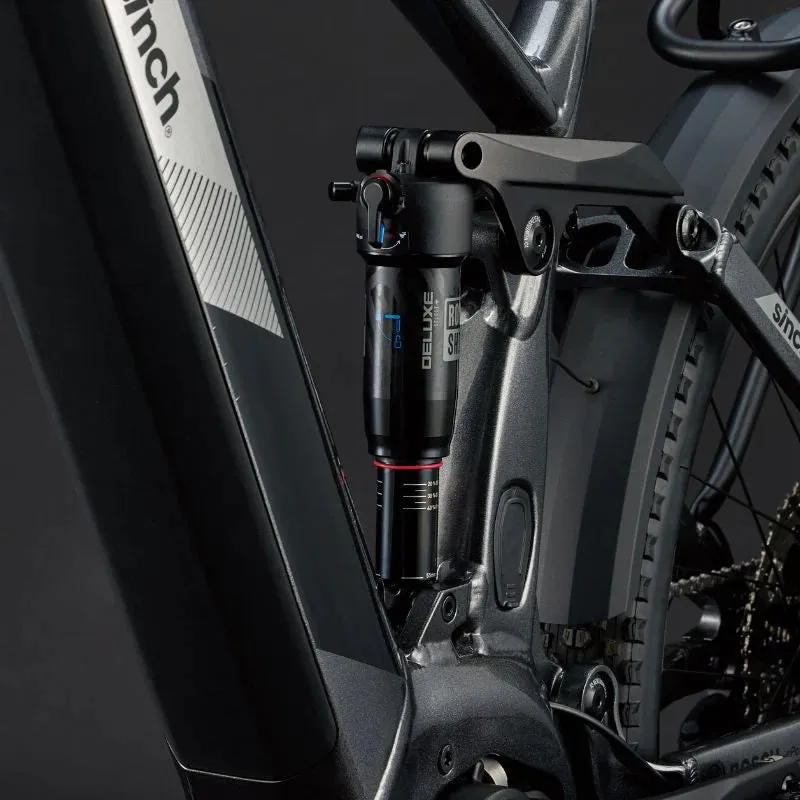

| Rear Suspension | Rock Shox Deluxe Select RL custom tuned with rebound adjust and lockout |

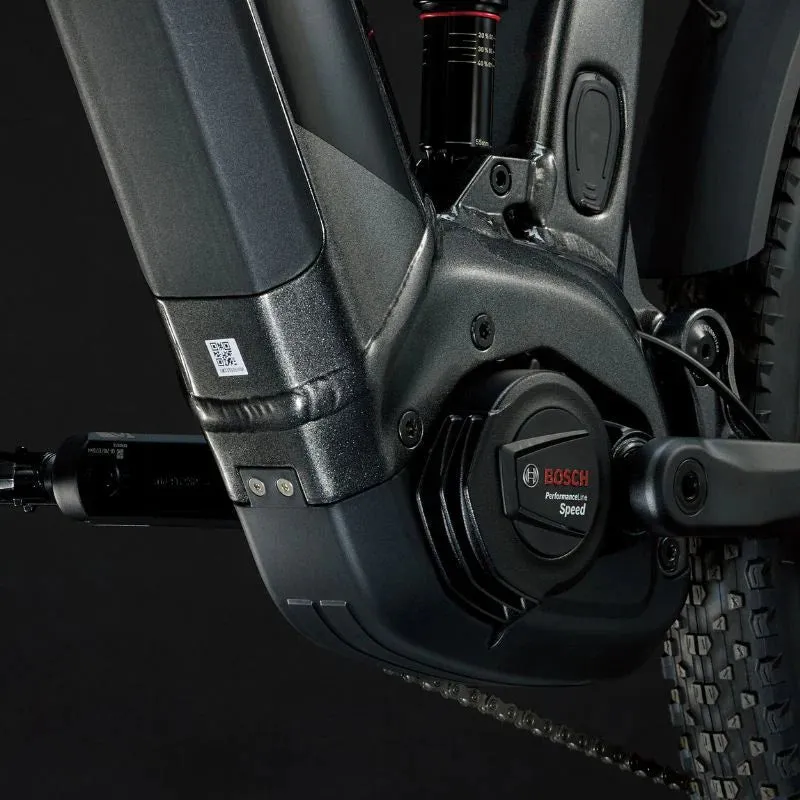

| Drive Unit | Bosch Performance Line Speed Gen 4 250watt 85Nm, 45km/hr with walk assist mode |
| Battery | Bosch PowerTube, 36V 16.7Ah 625Wh |

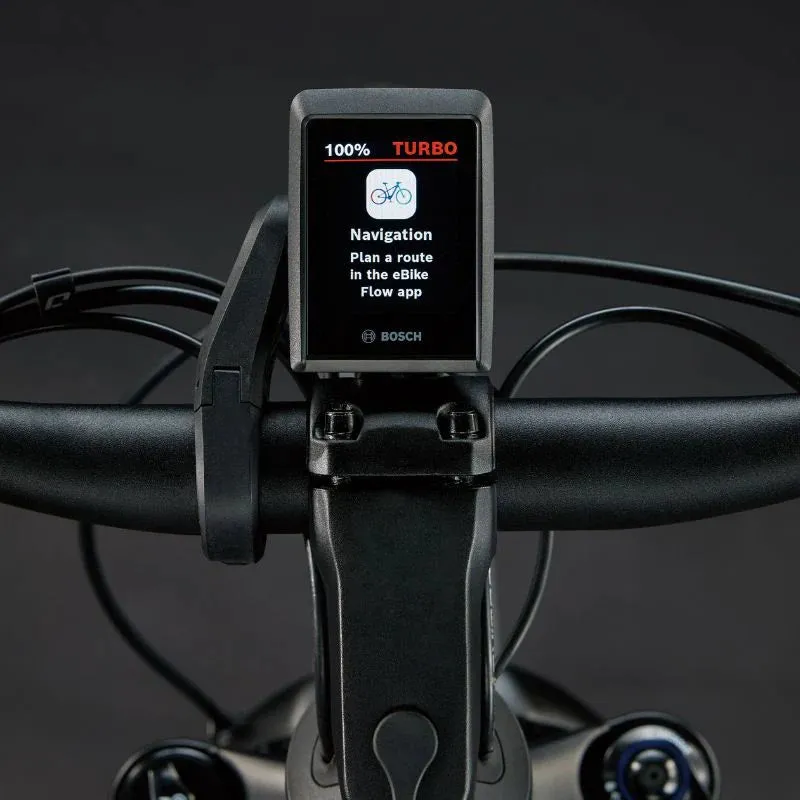

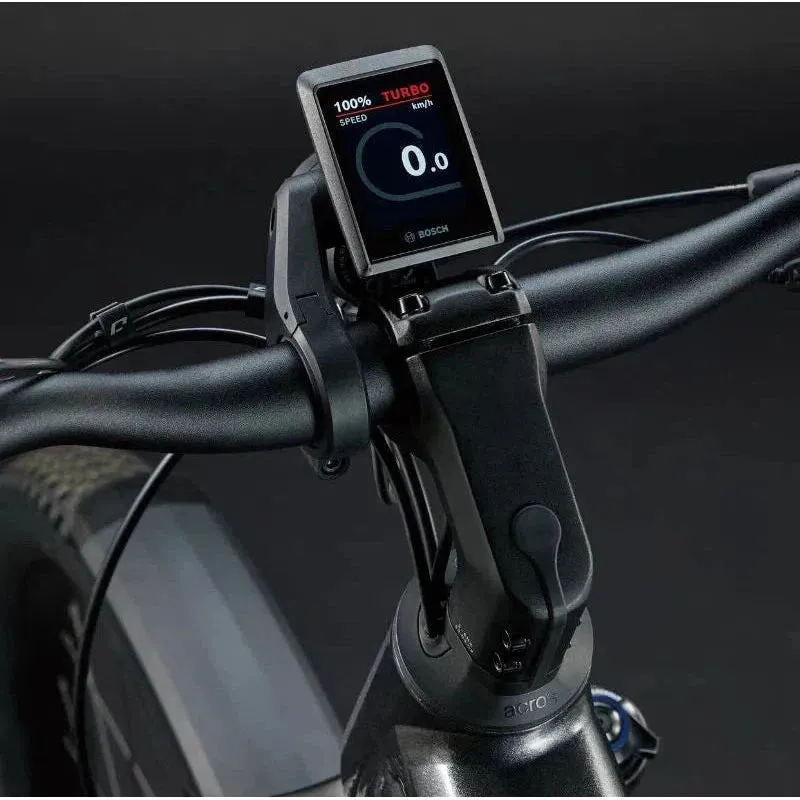

| Display | Bosch Kiox 300 |

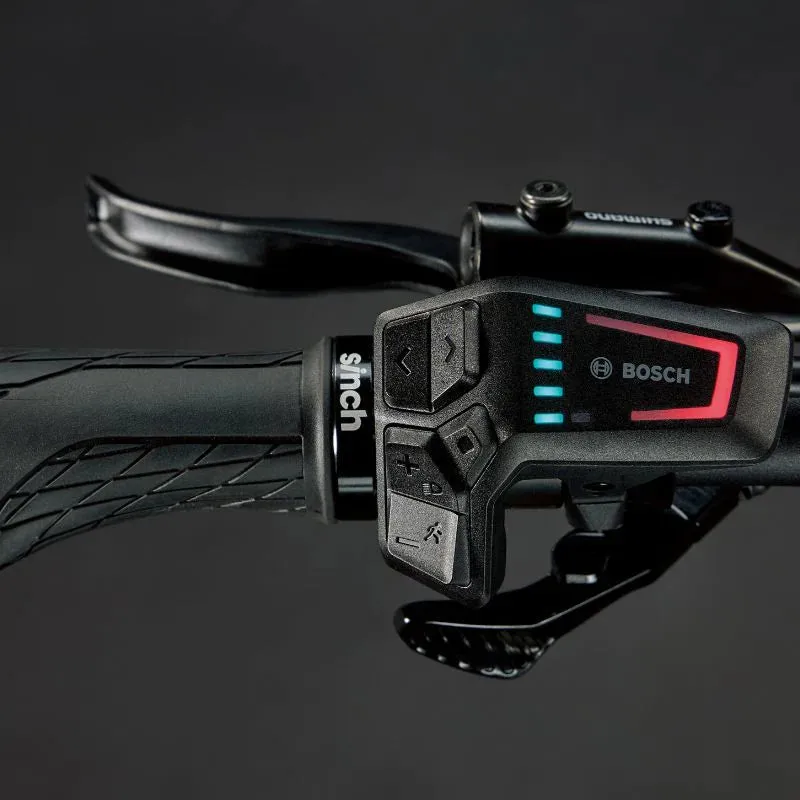

| Controller Switch | Bosch LED remote |
| Hubs | Shimano TC500 Boost 110x15mm Thru axle 32H front, TC500 Boost 148x12mm Thru axle 32H rear |
| Rims | Alex EM30 Double Wall Front=29”, Rear=27.5” 32H F/V |
| Tyres | Maxxis Ikon 29x2.35” front, 27.5x2.35” rear Foldable, TR EXO puncture protection |
| Shifter | Shimano Deore XT SL-M8130 11 Speed |

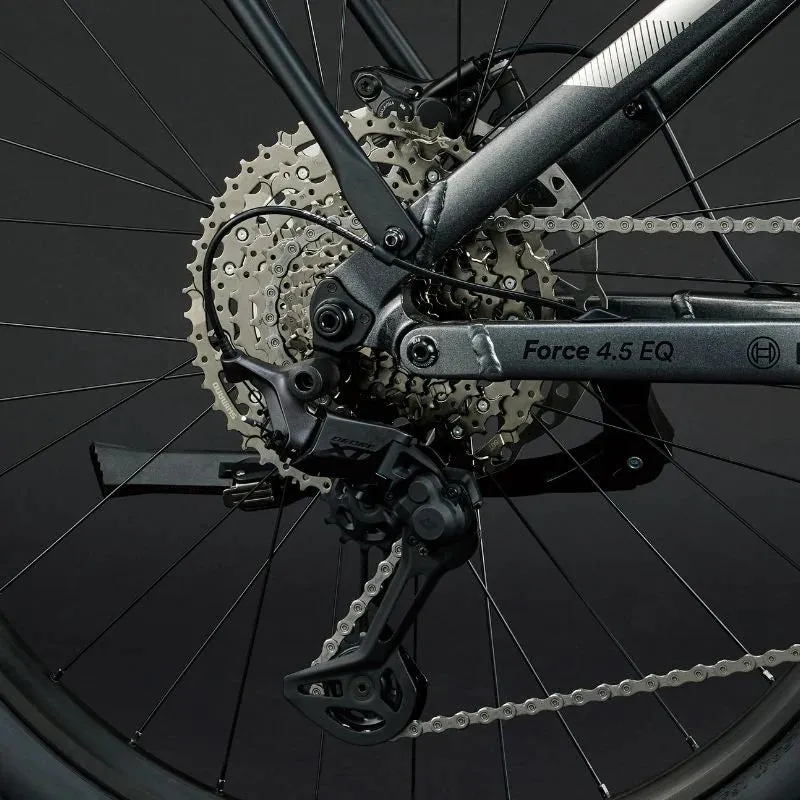

| Derailleur | Shimano Deore XT LinkGlide RD-M8130 SGS Shadow Plus 11 Speed |
| Crankset | FSA Alloy with 38T Chainring and Chain device |
| Cassette | Shimano Cassette LG400 LinkGlide 11-50T 11 Speed |
| Chain | Shimano CN-LG500 LinkGlide |
| Pedals | Sinch Alloy platform |

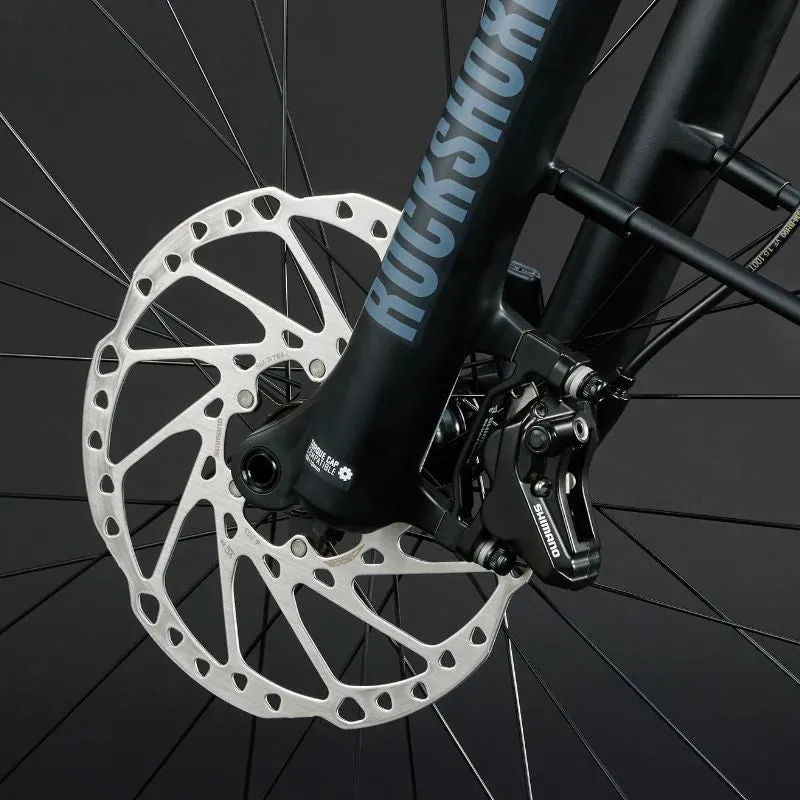

| Brakeset | Shimano MT420 4 Piston Hydraulic disc, 203mm rotors |

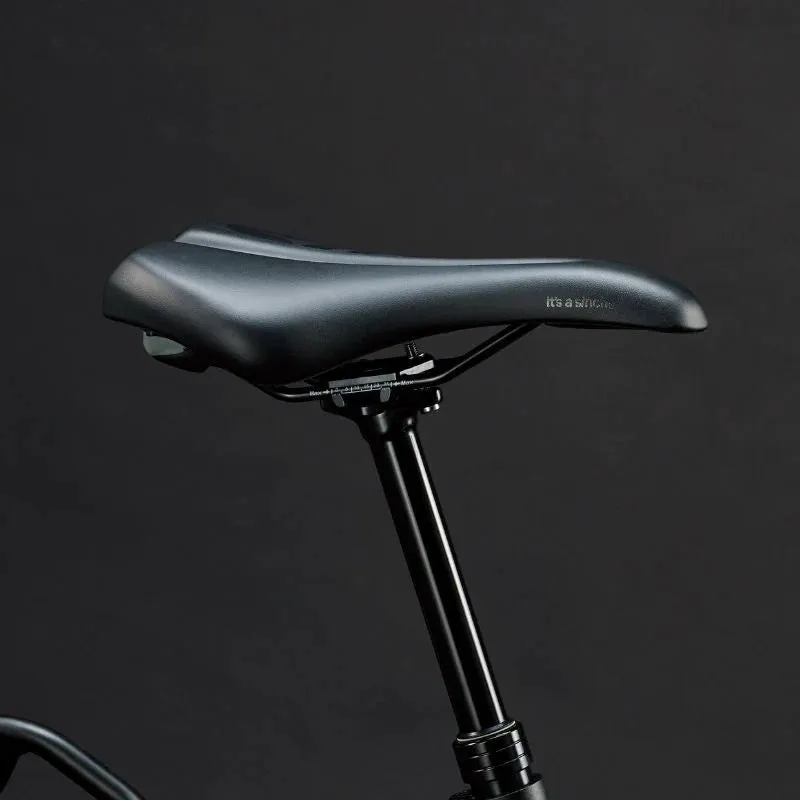

| Saddle | Sinch Sport Comfort 177mm Gel |
| Seat post | Dropper, S=120, M,L=150, XL=175mm travel, Internal routing, 30.9mm |
| Bar | Sinch Alloy Comfort, 20mm rise, 15° sweep, 680mm |
| Stem | Fastback 20 31.8mm, 20-degree |
| Headset | Acros AZF-656 integrated |
| Grips | Sinch Comfort Gel Lock-on triple density |

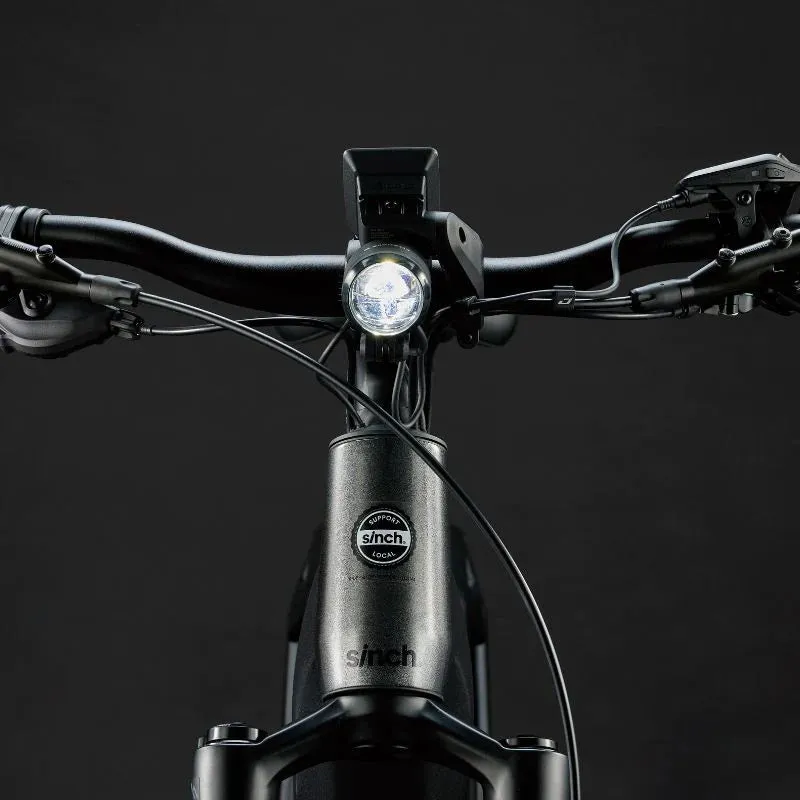

| Lights | Litemove SE-90 stem mounted Front, Pimento Large XEr Rear with Brake Sensor |

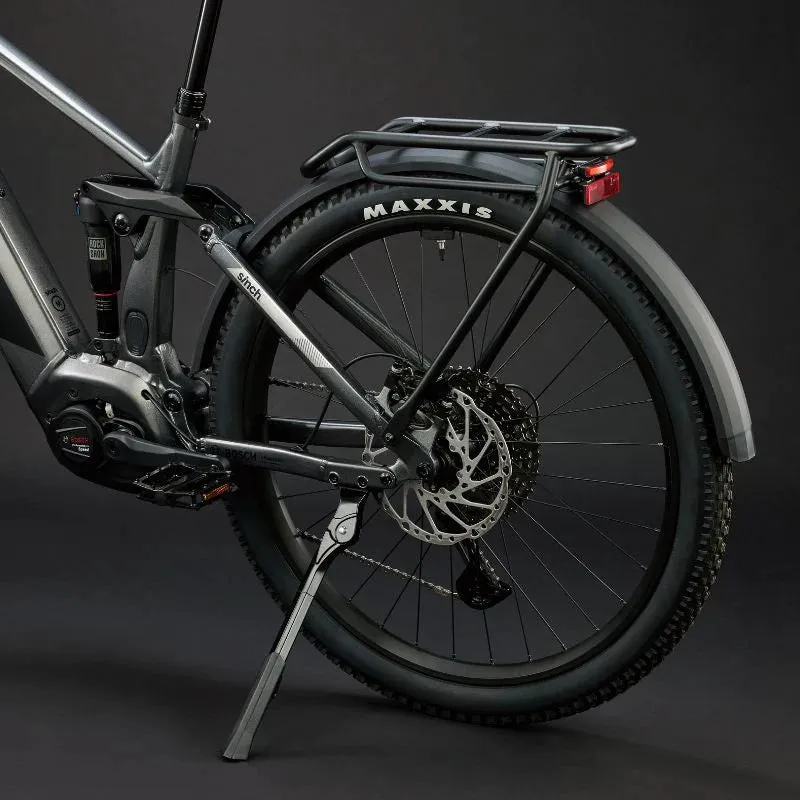

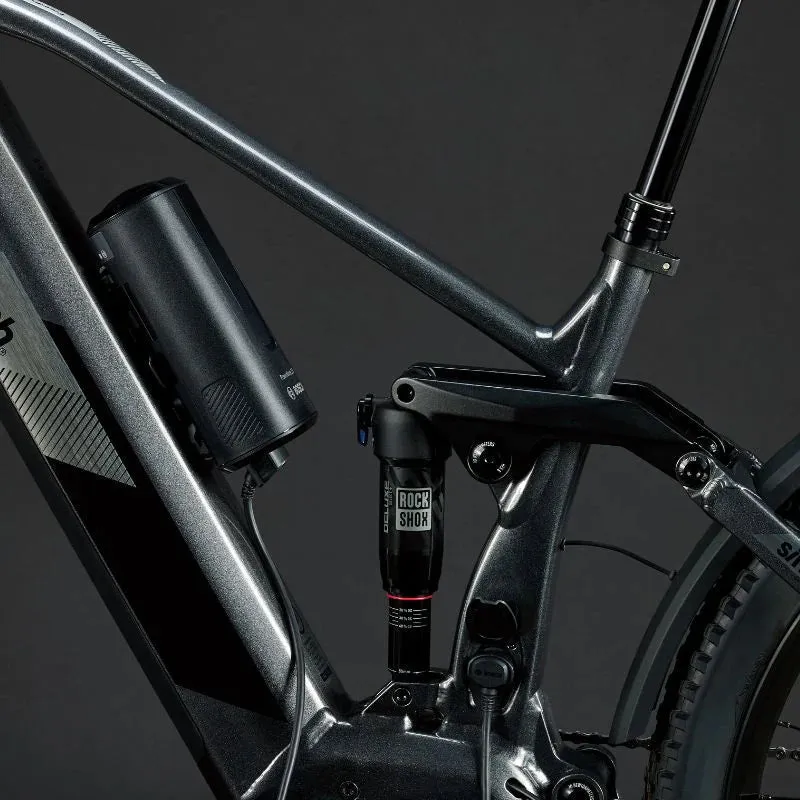

| Accessories | Alloy Fenders, Rear Carrier 20kg load capacity, Kickstand, Range extender PowerMore 250 compatible, Sinch accessory case |
| Sizes | S,M,L,XL |
