DEMO MODEL: THIS BIKE IS A USED DEMO MODEL IN GREAT MECHANICAL CONDITION. IF YOU'RE LOOKING TO GET INTO A GREAT BIKE AT AN EVEN BETTER PRICE THIS BIKE COULD BE IDEAL. IF YOU PREFER A NEW BIKE PLEASE EMAIL [email protected] TO CHECK CURRENT AVAILABILITY AND SALE PRICES.

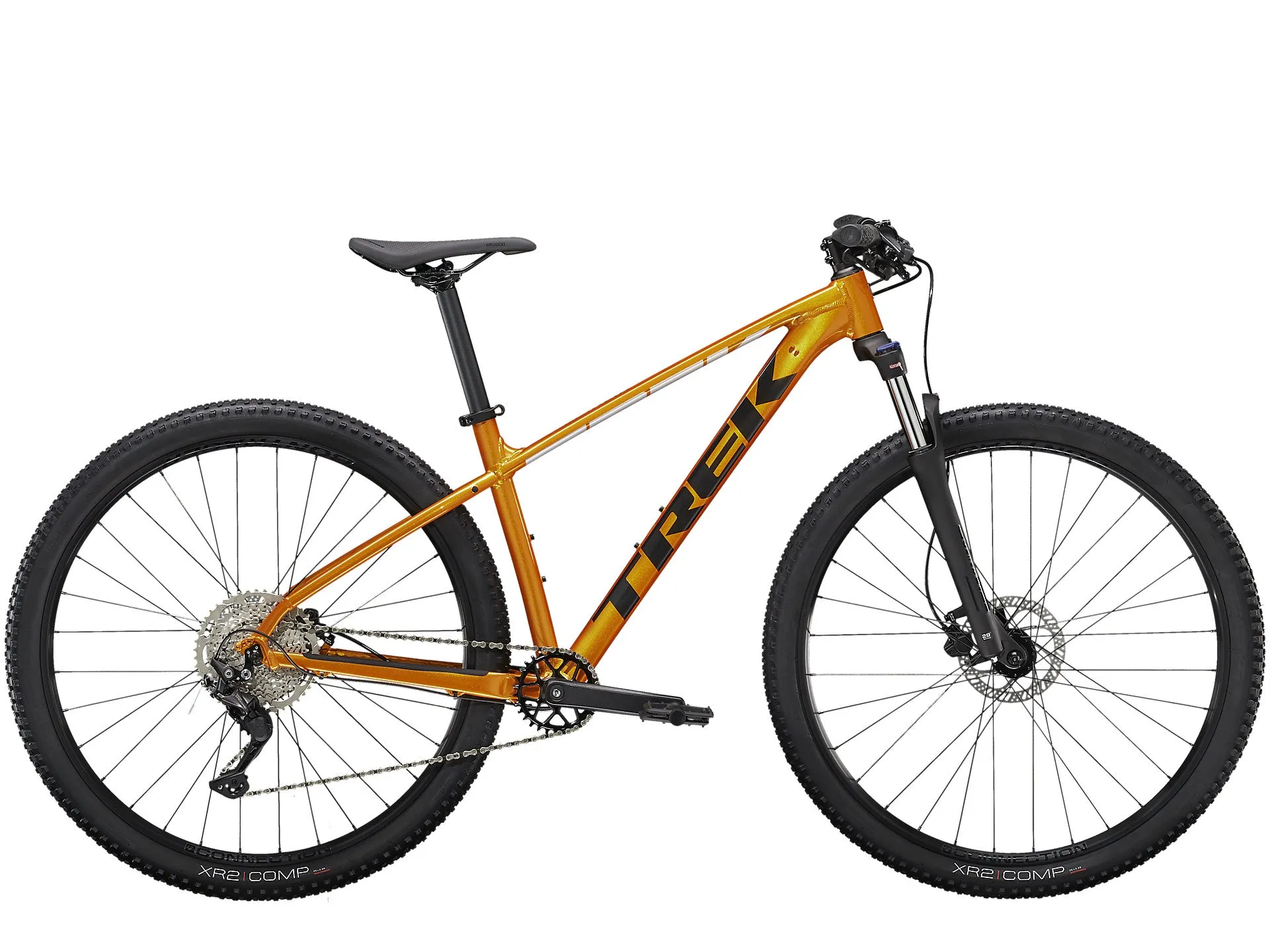

Marlin 6 is a cross country mountain bike built to give you an efficient off-road ride with a suspension fork that locks out, and a simple 1x drivetrain. It's made for mountain biking, but it's also equipped with features like rack and kickstand mounts that make it a great choice for adventurous daily commutes.
It's right for you if...
You're testing the waters of off-road riding, and want a real mountain bike at a great value, with a wide range of gears to cover more ground on the road and trail.
The tech you get
A lightweight aluminum frame with internal routing to protect your cables and add to the bike's sleek look, powerful hydraulic disc brakes, and a simple 1x10 Shimano drivetrain that ditches the front derailleur for less clutter and easier operation. The wide-range cassette still gives you all the gears you need for big climbs and steep descents. Plus a suspension fork with a lever that lets you easily lock the suspension so you don't waste energy on smooth terrain.
The final word
Marlin 6 gives you upgrades you'll notice on every ride, like the smooth, simple shifting Shimano drivetrain. Extra-strong double-walled rims and powerful hydraulic disc brakes give you durability and stopping power for your most rugged adventures on the trail, in town, and everywhere in between.
The Walkthrough
Why you'll love it
- The 1x drivetrain gives you all the gears you need and none you don’t
- Smaller frame sizes (XXS, XS, and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
- Marlin models in XXS through S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
- Rack and kickstand mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
- Like every model in the Marlin family, it's backed by Trek's lifetime warranty
Specifications
*spec applies to all sizes unless otherwise noted
| Frame | Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
|---|---|
| *Fork | Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel |
| Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel | |
| Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel | |
| Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Rim | |
| Spokes | 14g stainless steel |
| *Tire | Size: XS , S |
| Size: M , ML , L , XL , XXL | |
| Max tire size | Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer |
| Shifter | Shimano Deore M4100, 10 speed |
|---|---|
| Rear derailleur | Shimano Deore M5120, long cage |
| Crank | Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length |
| Bottom bracket | Sealed cartridge, 73mm |
| Cassette | |
| Chain | |
| Pedal | |
| Max chainring size | 1x/2x: 34T, 3x: 42T |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| *Seatpost | Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length | |
| *Handlebar | Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 5mm rise, 720mm width | |
| Grips | |
| *Stem | Size: XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Size: S | |
| Size: M | |
| Size: ML , L | |
| Size: XL , XXL | |
| Headset | Semi-integrated, 1-1/8'' |
| Brake | Tektro HD-M275 hydraulic disc |
| Weight | M - 14.11 kg / 31.11 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
Sizing & Tech
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike. The best way to find your perfect fit is to consult the experts at your local retailer.
Rider Height
Inseam
XS
145.0 - 154.6 cm
4'9.1" - 5'0.9"
68.58 - 73.41 cm
27.0" - 28.9"
S
155.0 - 164.75 cm
5'1.0" - 5'4.9"
73.66 - 78.49 cm
29.0" - 30.9"
M
165.0 - 172.5 cm
5'5.0" - 5'7.9"
78.74 - 81.03 cm
31.0" - 31.9"
M/L
172.75 - 180.0 cm
5'8.0" - 5'10.9"
81.28 - 86.11 cm
32.0" - 33.9"
L
180.25 - 187.75 cm
5'11.0" - 6'1.9"
86.36 - 88.65 cm
34.0" - 34.9"
XL
188.0 - 195.25 cm
6'2.0" - 6'4.9"
88.9 - 91.19 cm
35.0" - 35.9"
2XL
195.5 - 203.25 cm
6'5.0" - 6'8.0"
91.44 - 96.52 cm
36.0" - 38.0"
All measurements provided in cm unless otherwise noted.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | XS | 27.5" | 34.3 | 73.5° | 73.5° | 9.0 | 69.3° | 54.4 | 29.2 | 5.8 | 43.8 | 4.2 | 8.8 | 104.9 | 65.8 | 37.6 | 56.5 |
| 15.5 | S | 27.5" | 36.8 | 73.5° | 73.5° | 9.0 | 69.3° | 55.5 | 30.2 | 4.8 | 43.8 | 4.2 | 8.8 | 106.6 | 68.6 | 38.5 | 57.4 |
| 17.5 | M | 29" | 41.9 | 71.9° | 73.0° | 9.0 | 69.5° | 60.2 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 110.0 | 74.8 | 41.8 | 60.2 |
| 18.5 | ML | 29" | 44.4 | 71.9° | 73.0° | 9.0 | 69.5° | 61.8 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 111.6 | 75.8 | 43.4 | 60.2 |
| 19.5 | L | 29" | 47.0 | 71.9° | 73.0° | 10.0 | 69.5° | 63.8 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 113.7 | 75.7 | 45.1 | 61.1 |
| 21.5 | XL | 29" | 52.1 | 71.9° | 73.0° | 12.0 | 69.5° | 65.9 | 31 | 5.8 | 43.8 | 4.2 | 9.3 | 115.9 | 76.9 | 46.6 | 63.0 |
| 23.0 | XXL | 29" | 55.9 | 71.9° | 73.0° | 12.0 | 69.5° | 67.3 | 31.1 | 5.8 | 43.8 | 4.2 | 9.3 | 117.3 | 80.4 | 48.0 | 63.0 |
