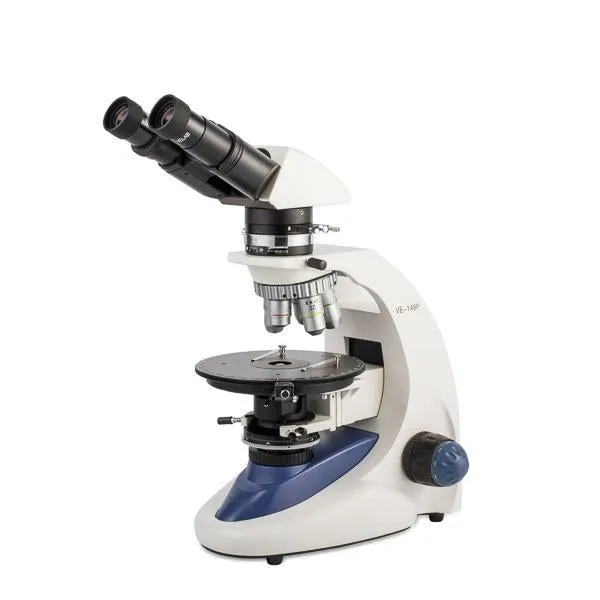

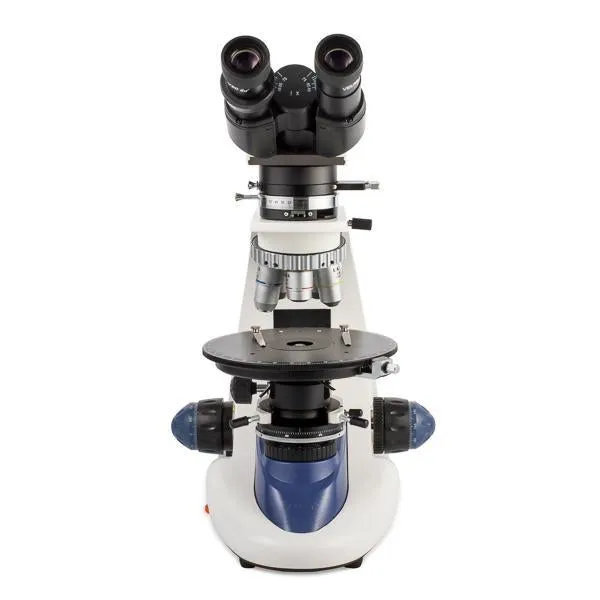

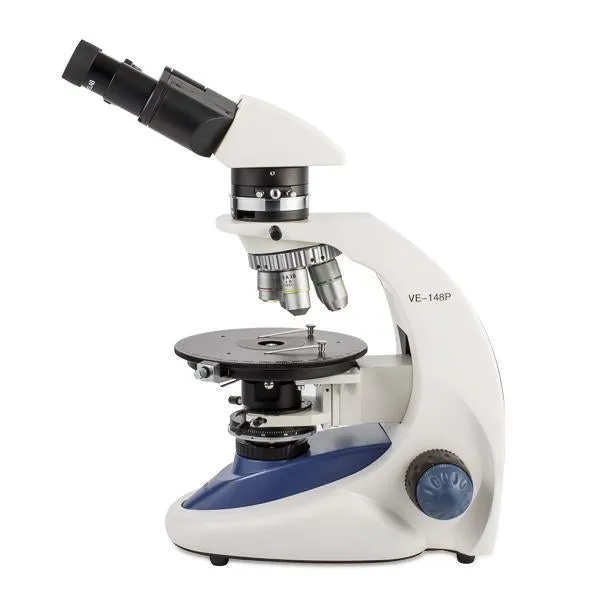

The VE-148P is a professional polarized light microscope, ideal for observing crystalline or fibrous materials and the identification or study of mineral textures. The VE-148P offers observations with 3 types of polarized light (conoscopic, simple and orthogonal) and has a rotating circular stage, divided by a 360° scale.
Especifications
| Eyepieces | WF10X/20 mm |

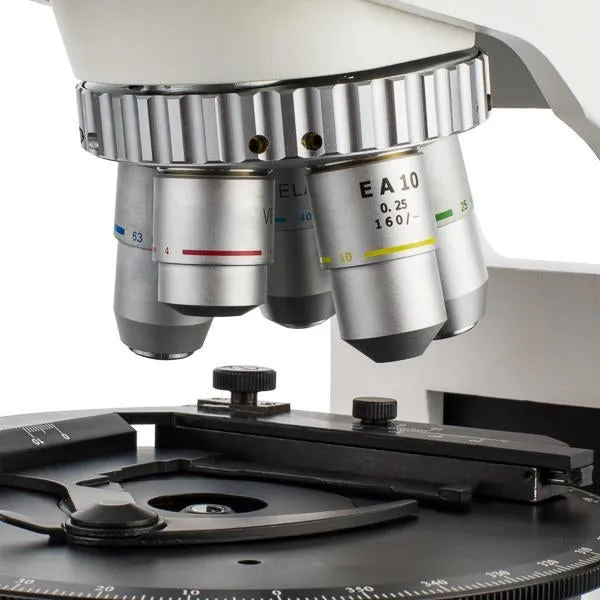

| Nosepieces | Quintuple |
| Objectives | 4X, 10X, 25X, 40X and 63X (S) |
| Optical System | Achromatic. |

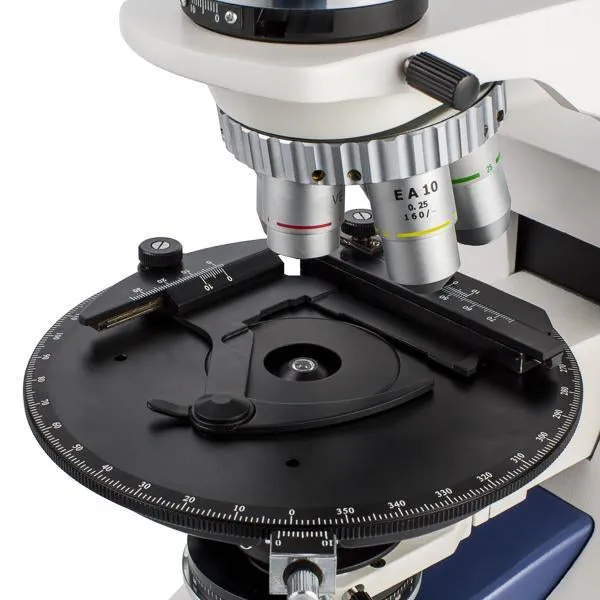

| Stage | Circular mechanical, 170 mm / 6.6” diameter with 360° divided scale. |
| Condenser | Abbe, A.N. 1.3 oscillation with elevator and polarizer. |
| Diaphragm | Iris type |
| Focus | Coarse and fine anti-slip control knob. |
| Ilumination | Kohler Halgen 12V/30W. |
| Dimensions | 180 x 465 x 295 mm / 7.0” x 18.3” x 11.6” |
| Power supply | 110/240V, 50/60 Hz AC adapter |
| Main Features | Diopter adjustment in an eyepiece. Siedentopf type Binocular Head. Head inclined at 30 ° and rotatable 360°. Stative, robust, reinforced and easy to transport. Illumination with intensity control and field diaphragm in the lamp. Stage with goniometer and double adjustment option. Head with analyzer and Bertrand lens system. Objectives with colored rings. Interpupillary distance of 48 ~ 75 mm. Mechanical removable stage, movement X-Y. |
| Applications | Education: Lower grade level. |

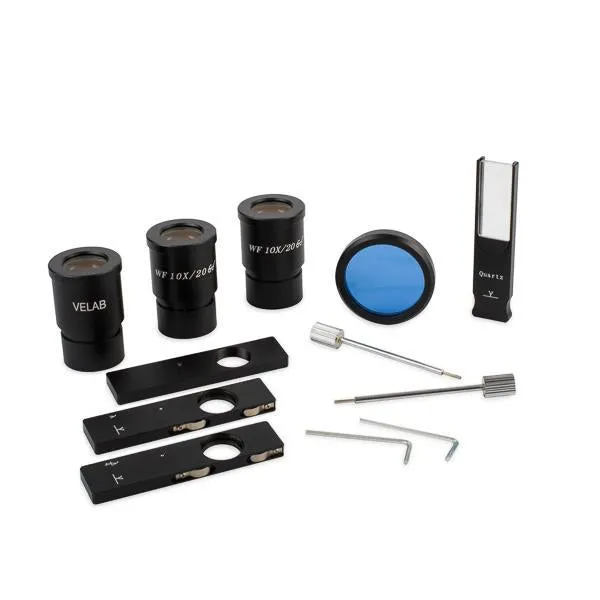

| Accessories Included | Power cord 10X / 20 mm squared eyepiece, DIV: 0.1 mm 10X / 20X cross division eyepiece Micrometric eyepiece 10X20 mm, DIV: 0.1 mm Stage micrometer, DIV: 0.1 mm Gypsum lambda compensating filters, mica, quartz wedge and filter covers dust. Allen wrenches Blue filter |
| Warranty | 10 years |
