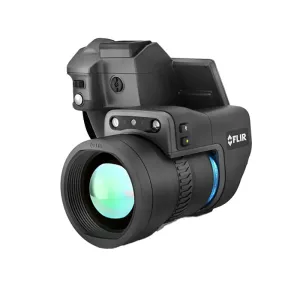

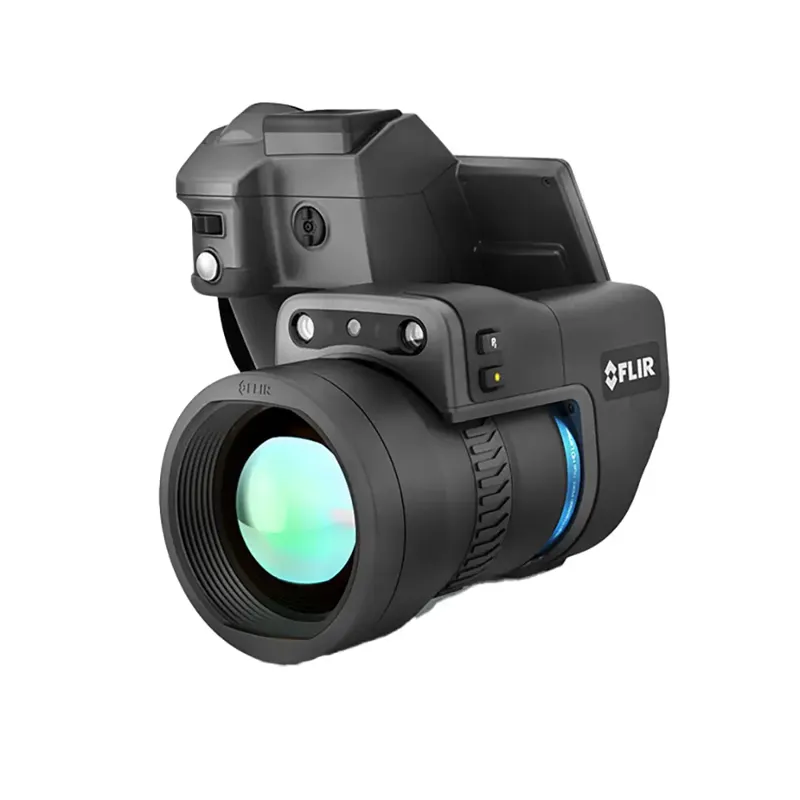

The Teledyne FLIR T1020-28-NIST HD Thermal Imaging Camera combines five decades of infrared expertise with advanced imaging innovations for elite-level thermal inspections. Offering unmatched performance, this camera is engineered with a high-resolution 1024 x 768 detector and features MSX and UltraMax technologies to produce detailed, crisp thermal imagery ideal for critical applications.
Its ergonomic design and rotating optical block make it perfect for extended use and inspections from hard-to-reach angles. The built-in viewfinder and responsive GUI enhance field usability, while the OSX Precision HDIR lens ensures superior clarity and pinpoint temperature measurement at various distances. Designed for professionals, the T1020-28-NIST delivers full radiometric video capture, advanced measurement functions, and intuitive operation.
What's Included:
- Teledyne FLIR T1020-28-NIST HD Thermal Imaging Camera
- OSX Precision HDIR 28° Lens
- FLIR Tools Software
- NIST Certificate of Calibration
Features
High-Resolution Imaging
Equipped with a 1024 x 768 detector offering 786,432 pixels, delivering detailed thermal images for advanced diagnostics.
UltraMax Technology
Enhances resolution up to 3.14 megapixels through image stacking, providing greater clarity and improved measurement accuracy.
MSX Image Enhancement
Overlay visible light details onto thermal images to make text and edges more visible without compromising thermal data.
Wide Temperature Range
Supports object temperature measurements from -40°C to 2000°C, suitable for diverse industrial applications.
Precision HDIR Optics
Includes Teledyne FLIR’s high-fidelity 28° lens for pinpoint temperature detection and superior image quality.
Integrated Viewfinder
Built-in 800 x 480 pixel viewfinder for enhanced image framing and analysis in bright outdoor environments.
Advanced Alarms
Features include above, below, interval, moisture, and insulation alarms with audible and visual alerts.
Radiometric Video
Capture full-resolution, full-frame radiometric video for post-analysis and comprehensive reporting.

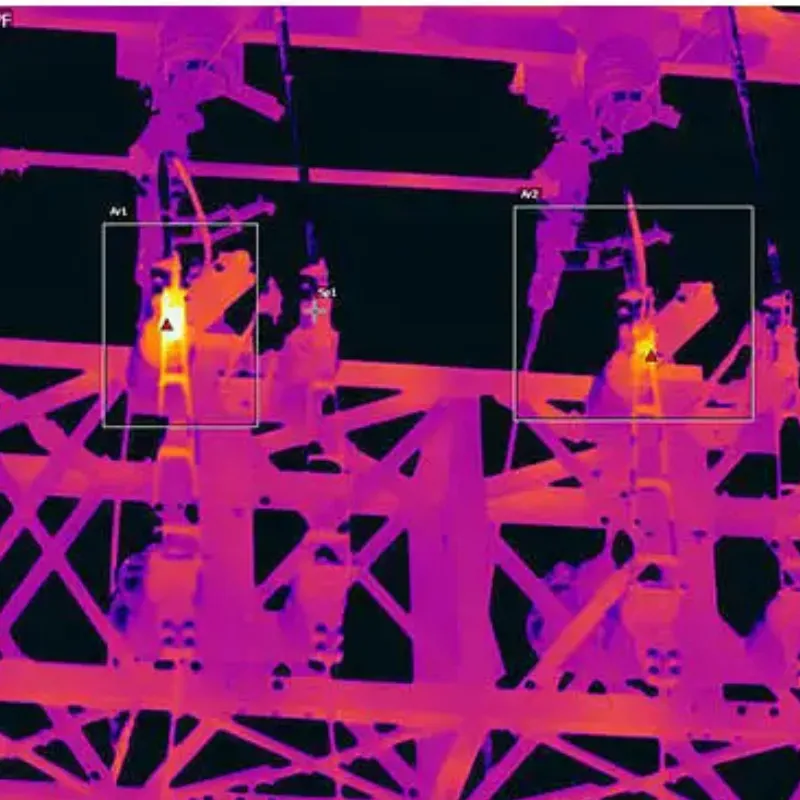

Flexible Measurement Tools
Includes 10 spotmeters, 10 measurement areas, and adjustable PIP for versatile thermal analysis.
Efficient Navigation
Fast-access GUI and 1-Touch Level/Span feature streamline inspections and improve workflow.
GPS and METERLiNK Enabled
Automatic GPS tagging and wireless communication of readings from compatible meters.
What's Included
Included with Your Purchase:
- Teledyne FLIR T1020-28-NIST HD Thermal Imaging Camera
- OSX Precision HDIR 28° Lens
- FLIR Tools Software
- NIST Certificate of Calibration
Specifications
- IR Resolution: 1024 x 768 (786,432 pixels)
- UltraMax Resolution: 3.14 MPixels
- Thermal Sensitivity/NETD: < 20 mK @ 30°C (86°F)
- Field of View (FOV): 28° x 21° (36 mm lens)
- Viewfinder: Built-in, 800 x 480 pixels
- Picture-in-Picture: Resizable and movable
- IR Time-lapse: 15 seconds to 24 hours
- Temperature Ranges: -40°C to 150°C, 0°C to 650°C, 300°C to 2000°C
- Accuracy: ±1°C or ±1% at 25°C for 5°C to 150°C range
- Alarms: Above, below, interval, moisture, insulation
- Measurement Alarms: Audible/visible on any selected function
- GPS: Automatic GPS image tagging
- METERLiNK: Supports multiple readings
- Spotmeter: 10
- Measurement Areas: 5 boxes and 5 circles with max/min/avg
FAQ
Q: What is the image resolution of the T1020-28-NIST?
A: The camera features a 1024 x 768 detector, enhanced up to 3.14 MPixels with UltraMax.
Q: Can it record video with temperature data?
A: Yes, it captures full-resolution, full-frame radiometric video for detailed analysis.
Q: What temperature range does it cover?
A: It measures from -40°C to 2000°C across three ranges.
Q: What’s the benefit of MSX technology?
A: MSX overlays visible details like labels onto thermal images for better context.
Q: Does it come calibrated?
A: Yes, it includes a NIST Certificate of Calibration.
